the attached instructions of Honda.
All bearing points of the foliage vacuum have self-
lubricating ball bearings and do not have to be lubri-
cated.
Model LS 5000/LS 5000 H: check drive after a longer
period of working time (depending on the type of
ground the vac is used on). Loosen the four screws
holding the bottom plate to uncover the complete
driving mechanism (45/66). Wear may have loose-
ned the wheel driving chain (41/74). To adjust
distance again, loosen shaft bearings (42) and turn
bearings (42) in slot. Tighten screws carefully.
The air filter of the drive engine should be clea-
ned or washed out frequently because handling
foliage always involves a lot of dust.
6. Spare parts
A spare parts drawing and spare parts list is atta-
ched. Please identify the required spare parts
according to the drawing and state the article num-
bers given in the spare parts list on all orders.
7. Troubleshooting

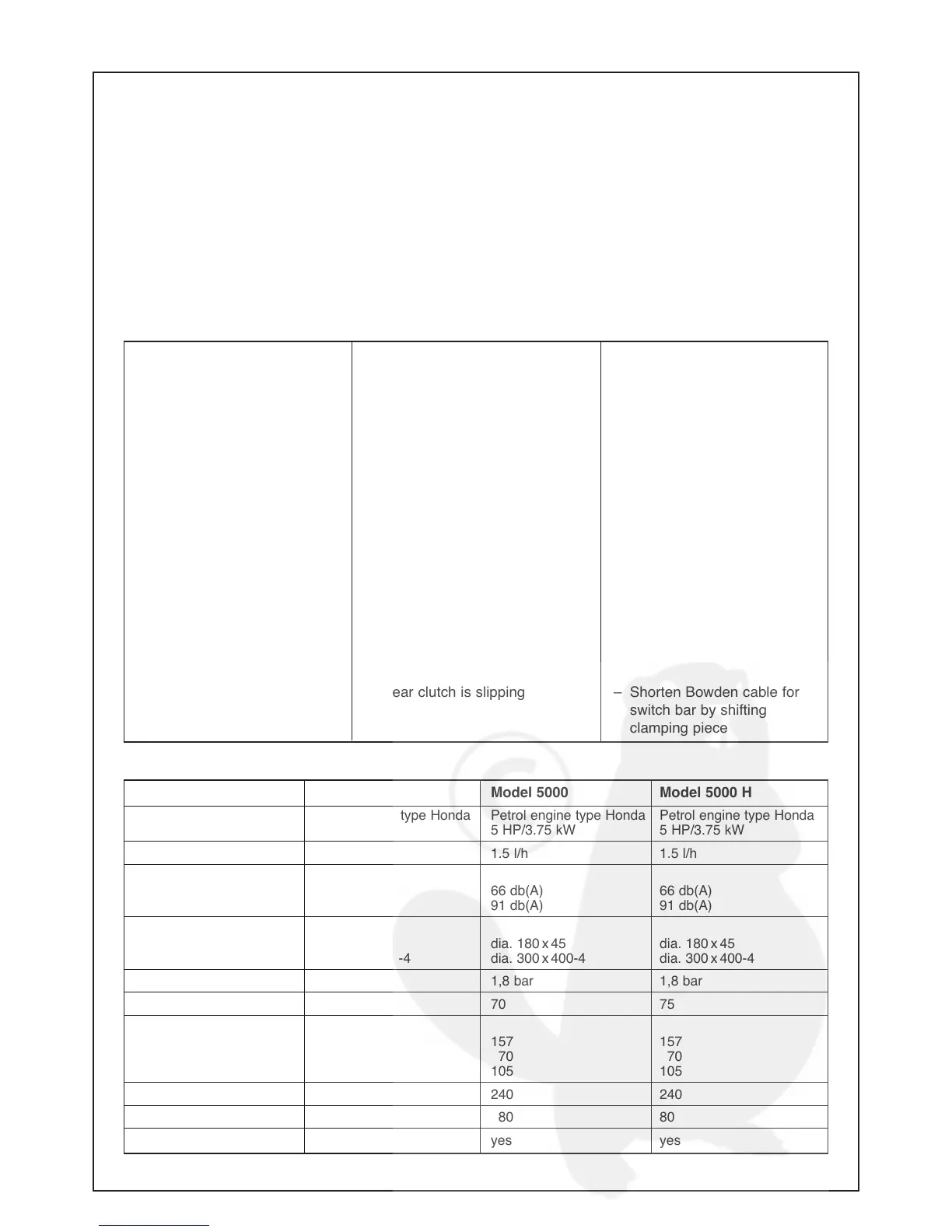

8. Technical Data
Model 3500 Model 5000 Model 5000 H
Drive: Petrol engine type Honda Petrol engine type Honda Petrol engine type Honda
3.5 HP/2.6 kW 5 HP/3.75 kW 5 HP/3.75 kW
Consumption: 1.1 l/h 1.5 l/h 1.5 l/h
Noise level
without load: 66 db(A) 66 db(A) 66 db(A)
full load: 91 db(A) 91 db(A) 91 db(A)
Tyres
front: dia. 180 x 45 dia. 180x45 dia. 180x45
rear: dia. 300x400-4 dia. 300x400-4 dia. 300x400-4
Air pressure, rear tyres: 1,8 bar 1,8 bar 1,8 bar
Weight (kg): 67 70 75
Dimensions:
L(mm) 157 157 157
W (mm) 70 70 70
H (mm) 105 105 105
Bag capacitiy: 240 240 240
Working width (cm): 80 80 80
Wheel drive: no yes yes
Fault: Cause: Solution:
1. Engine won’t start – Ingnition switch on engine in – Turn ignition switch to
»0« position »1« position
2. No engine power – Fuel tank empty – Refill fuel
– Sparking plug defective – Exchange sparking plug
– Fuel line blocked or – Empty fuel line and tank
water in petrol and refill new petrol
– Air filter soiled – Clean (rinse) air filter
3. Engine gets too hot – Carburettor not adjusted – Adjust carburretor acc. to
correctly Honda instructions
– Insufficient engine oil – Top up with engine oil
4. No suction power – Foliage bag too full – Empty foliage bag
– Filter area of foliage bag – Wipe filter areas
soiled (dry clean if necessary)
– Suction nozzle blocked – Clean suction nozzle
5. Wheel drive slip – Gear clutch is slipping – Shorten Bowden cable for
switch bar by shifting
clamping piece
