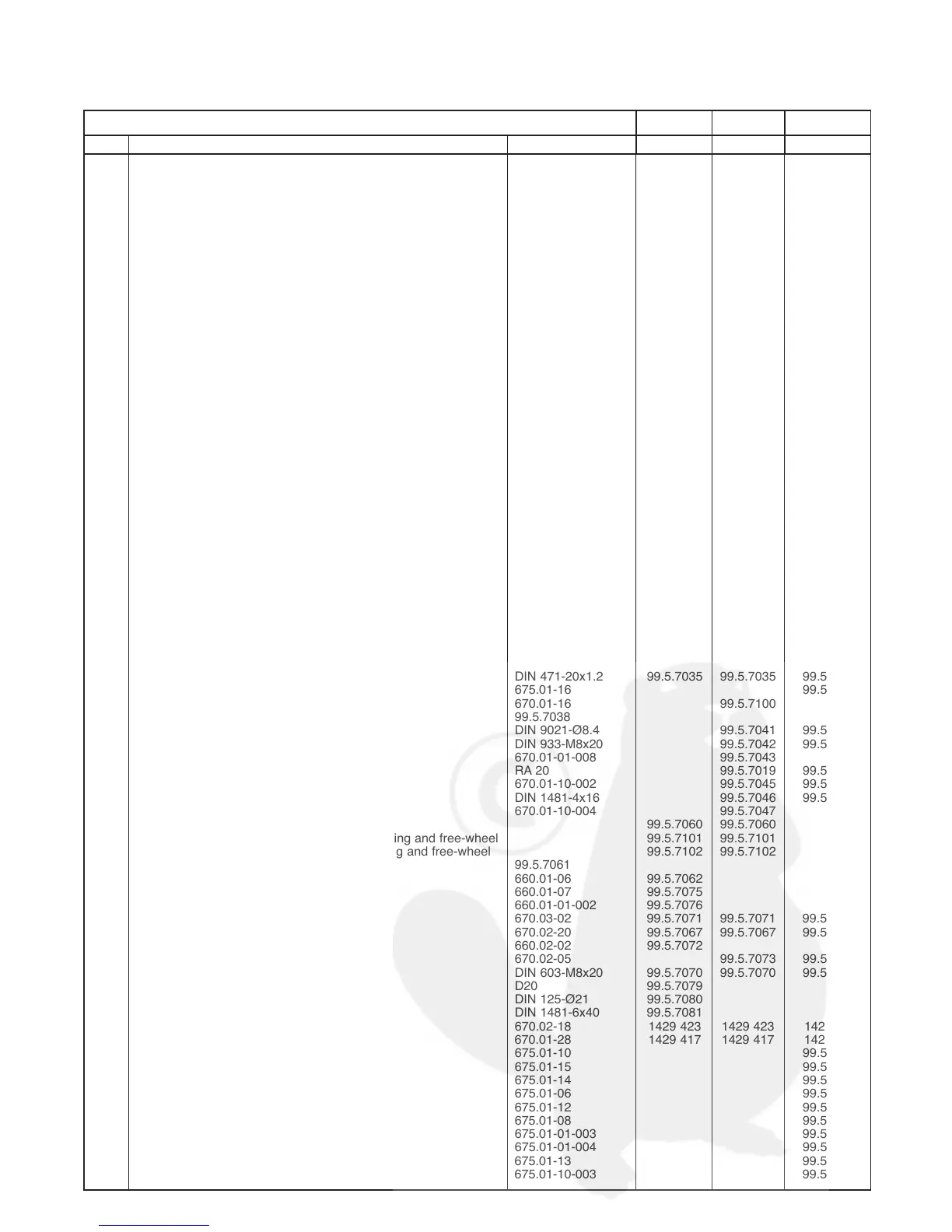

10. Spare Parts List
LS 3500 LS 5000 LS 5000 H
Item Description No. of drawing Art.-No. Art.-No. Art.-No.
1 Rubber strip 670.01-01-006 99.5.7000 99.5.7000 99.5.7000
2 Clamping strip 670.01-01-005 99.5.7001 99.5.7001 99.5.7001
3 Suction nozzle LS 99.5.7002 99.5.7002
4 Star-grip nut M10x25 99.5.7078 99.5.7078 99.5.7078
5 Contact switch 99.5.7004 99.5.7004
6 Hexagon bolt DIN 933-M10x25 99.5.7005 99.5.7005 99.5.7005
7 Outlet connecting piece 99.5.7006 99.5.7006
8 Foliage bag 99.5.7007 99.5.7007
9 Steering wheel assy (steel-rim) 99.5.7008 99.5.7008
10 Lock nut DIN 985-M12 99.5.7009 99.5.7009 99.5.7009
11 Plastic bushing 670.01-01-002 99.5.7010 99.5.7010 99.5.7010
12 Washer DIN 125-Ø13 99.5.7011 99.5.7011 99.5.7011
13 Hexagon bolt DIN 933-M12x35 99.5.7012 99.5.7012 99.5.7012
14 Rotor (20 mm ø) LS 5000 670.01-11 99.5.7013 99.5.7013
15 Feather key DIN 6886-A5x5x63 99.5.7014 99.5.7014 99.5.7014
16 Top pulley SPZ 50x1 99.5.7015 99.5.7015
17 Taper bushing PN 20-1610 99.5.7016 99.5.7016
18 Bottom pulley SPZ 150x1 99.5.7017 99.5.7017
19 V-belt XPZ 687 99.5.7018 99.5.7018
20 Flange bearing RA 20 99.5.7019 99.5.7019
21 Tension spring 99.5.7020
22 Feather key A5x5x25 99.5.7048 99.5.7048
23 Tightener 670.01-09 99.5.7021
23a Tightener 675.01-09 99.5.7088
24 Locking plate 670.01-25 99.5.7022 99.5.7022 99.5.7022
25 Bowden cable (gas lever) 99.5.7023
26 Adjusting rod 670.01-12 99.5.7024 99.5.7024 99.5.7024
27 Adjusting lever 670.01-13 99.5.7025 99.5.7025 99.5.7025
28 Handle 30x4 99.5.7026 99.5.7026 99.5.7026
29 Compression spring 590.01-01-009 99.5.7027 99.5.7027 99.5.7027
29a Washer DIN 125-Ø8.4 99.5.7028 99.5.7028 99.5.7028
29b Hexagon bolt DIN 933-M8x35 99.5.7029 99.5.7029 99.5.7029
29c Washer (plastic) 99.5.7030 99.5.7030
29d Nut DIN 985-M8 99.5.7031 99.5.7031 99.5.7031
30 Gas lever assy 99.5.7032
31 Switch bar 670.01-14 99.5.7033 99.5.7033
32 Bowden cable (drive) 99.5.7034
32a Adjustment-screw 99.5.7077 99.5.7077
33 Circlip DIN 471-20x1.2 99.5.7035 99.5.7035 99.5.7035
35a Shaft with sprocked wheel 675.01-16 99.5.7090
35b Shaft with sprocked wheel 670.01-16 99.5.7100
36 Cushion-tyred wheel (plastic-rim) 99.5.7038
39 Washer DIN 9021-Ø8.4 99.5.7041 99.5.7041
40 Hexagon bolt DIN 933-M8x20 99.5.7042 99.5.7042
41 Chain 670.01-01-008 99.5.7043
42 Flange bearing RA 20 99.5.7019 99.5.7019
43 Sprocket wheel 670.01-10-002 99.5.7045 99.5.7045
44 Split taper pin DIN 1481-4x16 99.5.7046 99.5.7046
45 Gearbox 670.01-10-004 99.5.7047
46 Cushion tyred wheel (steel-rim) 99.5.7060 99.5.7060
46a Cushion tyred wheel (steel-rim) right with bearing and free-wheel 99.5.7101 99.5.7101
46b Cushion tyred wheel (steel-rim) left with bearing and free-wheel 99.5.7102 99.5.7102
47 Steering wheel (plastic-rim) 99.5.7061
48 axle 660.01-06 99.5.7062
49 Rotor ø 18 mm LS 3500 660.01-07 99.5.7075
50 Distance-bush 660.01-01-002 99.5.7076
51 Housing 670.03-02 99.5.7071 99.5.7071 99.5.7071
52 Frontplate housing 670.02-20 99.5.7067 99.5.7067 99.5.7067
53 Motorplate LS 3500 660.02-02 99.5.7072
54 Motorplate LS 5000 670.02-05 99.5.7073 99.5.7073
55 Screw for protection DIN 603-M8x20 99.5.7070 99.5.7070 99.5.7073
56 Starlock-cap D20 99.5.7079
57 Washer DIN 125-Ø21 99.5.7080
58 Split taper pin DIN 1481-6x40 99.5.7081
59 Safety-guard 670.02-18 1429 423 1429 423 1429 423
60 Suction tube with accessories 670.01-28 1429 417 1429 417 1429 417
66 Gearbox 675.01-10 99.5.7089
68 Chain protection wheel shaft 675.01-15 99.5.7091
69 Bowden cable (drive) 675.01-14 99.5.7092
70 Operating handle 675.01-06 99.5.7093
72 Shaft for blower 675.01-12 99.5.7095
73 Pulley guide incl. sprocket 675.01-08 99.5.7096
74 Chain - Gearbox 675.01-01-003 99.5.7097
75 Chain for rotor drive 675.01-01-004 99.5.7098
76 Regulating device (operating handle) 675.01-13 99.5.7099
77 Sprocket - Gearbox H (pos. 66) 675.01-10-003 99.5.7104
