FlexWave120H Guitar Amplifier w/DSP and Channel Tracking
8
Using the Footswitch with the DSP
The Crate three-button footswitch supplied with the FlexWave120H allows access to an addi-
tional DSP preset for each channel of the amplifier. When the footswitch is connected to the
amplifier as shown below, the “original” DSP presets are active for each channel when the #3
footswitch LED is illuminated. These are referred to as “DSP Bank A.” When the #3 button is
switched and the LED is off, a second DSP preset may be stored and recalled for each chan-
nel — “DSP Bank B.”
Note: DSP Bank B presets are only accessible when the footswich is connected to the ampli-
fier. When the footswitch is not connected, only DSP Bank A is accessible.

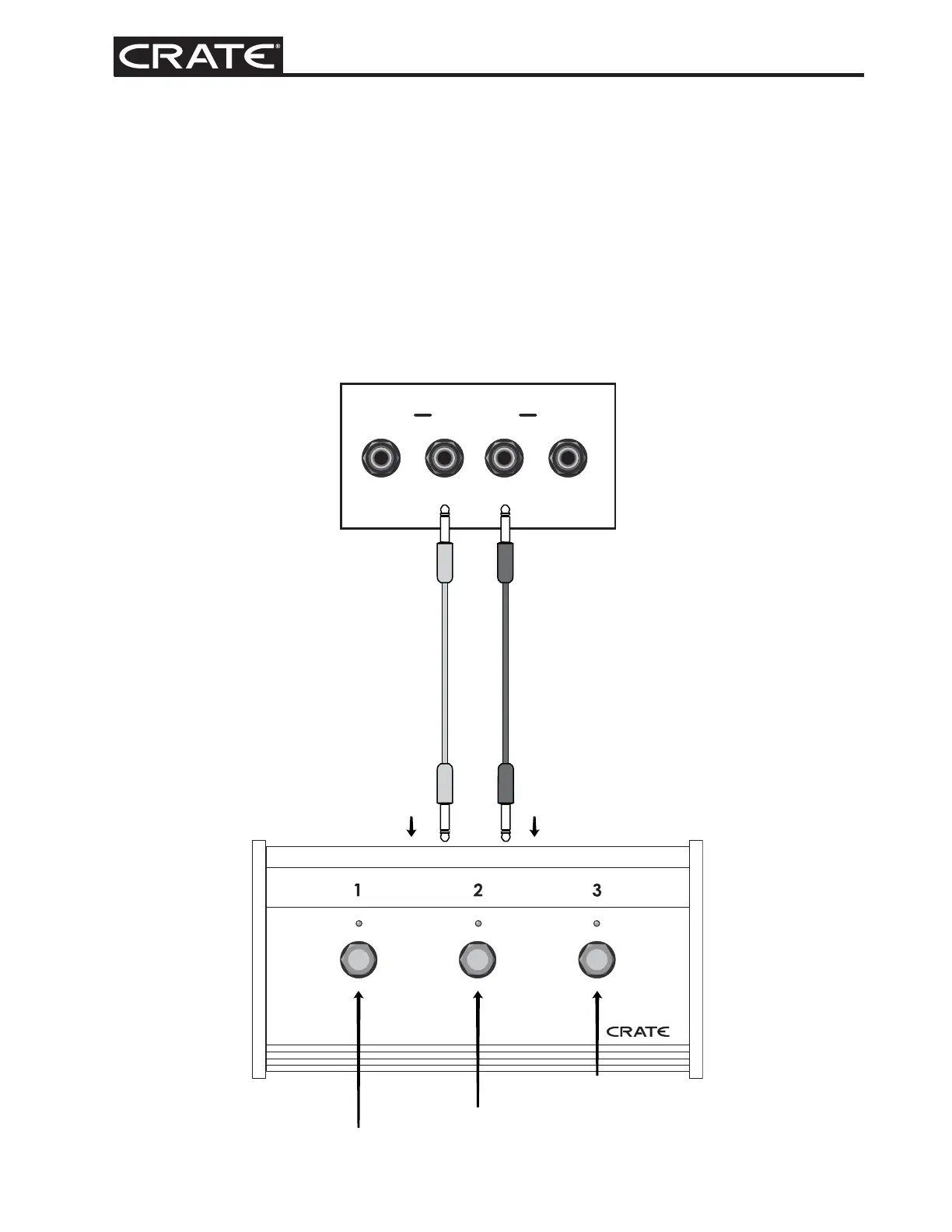

“LEFT” jack
Switch #1:
LED ON = HIGH GAIN CH
LED OFF = OVERDRIVE CH
[only when Switch #2 is activated (LED ON)]
Switch #2:
LED ON = HIGH GAIN CH/OVERDRIVE CH
LED OFF = CLEAN CH
Switch #3:
LED ON = DSP BANK A
LED OFF = DSP BANK B
“RIGHT” jack
BANK A
BANK B
4 OHM
MIN LOAD
CLEAN / OD
HIGH GAIN
EXT SPKRDSPINSERT CHANNEL
FOOTSWITCH
