Using the Footswitch for More Presets:

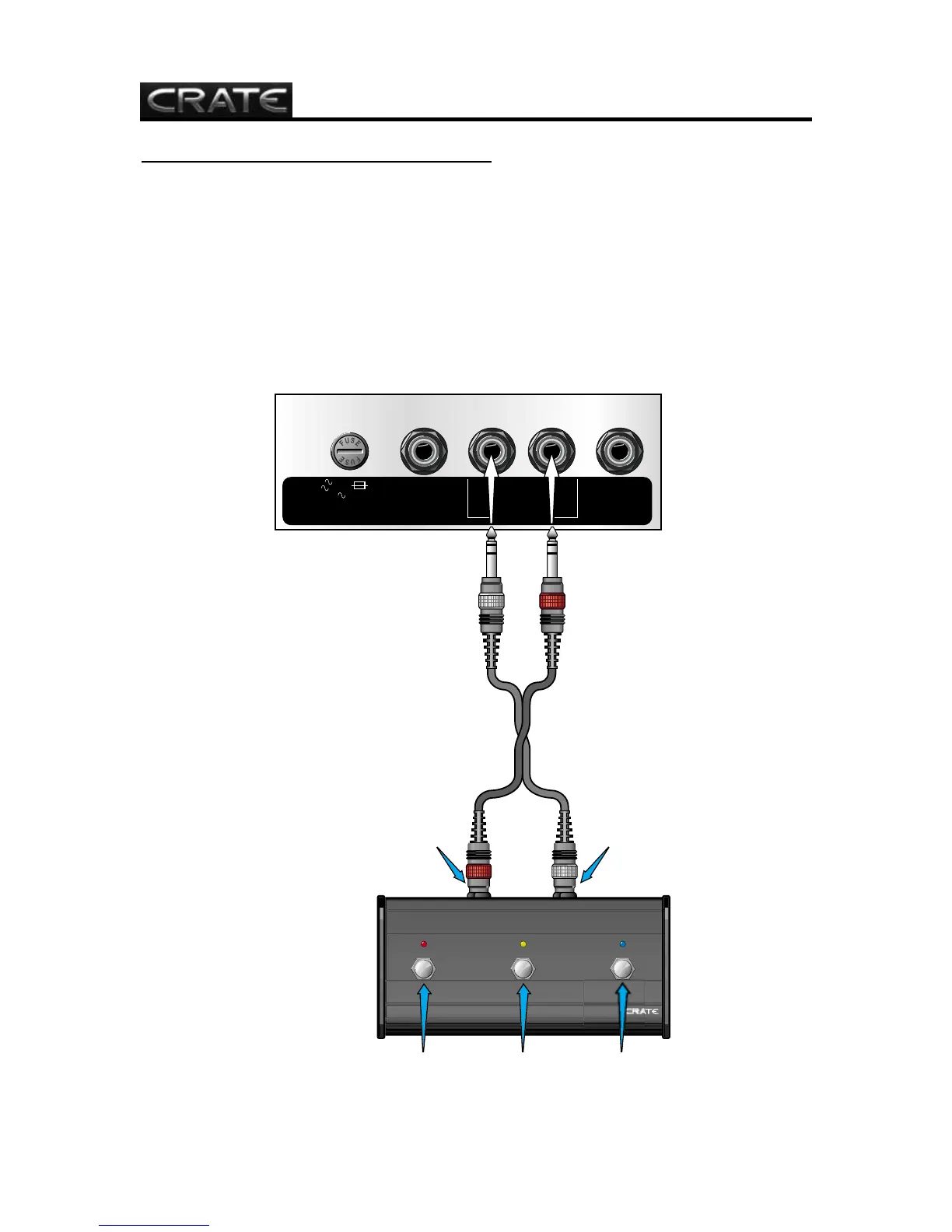

The Crate three-button footswitch supplied with the GTX65 allows access to an addi-
tional DSP preset for each channel of the amplifier. When the footswitch is connected to
the amplifier as shown below, the “original” DSP presets are active for each channel
when the #3 footswitch LED is illuminated. These are referred to as “DSP Bank ‘A’.”
When the #3 button is switched and the LED is out, a second DSP preset may be stored
and recalled for each channel - “DSP Bank ‘B’.”
NOTE: DSP Bank “B” presets are only accessible when the footswitch is connected to the amplifier. When
the footswitch is not connected, only DSP Bank “A” is accessable.
CHANNEL
FOOTSWITCH
EXTENSION
SPEAKER
INSERT
DSP
CLEAN
SOLO/RTHM
BANK A
BANK B
CAUTION: TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING.
ATTENTION: UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE.
100VAC: T2.5A 250V
120VAC: T2A 250V
230/240VAC: T1.25A 250V
"LEFT" jack "RIGHT" jack
S
wi
tc
h
#
1
:
LED
o
n =
SO
L
O
C
H
.
LED off = RHTYHM CH.
Only when Switch #2
is activated (LED lit)!
S
wi
tc
h
#
2
:
LED
o
n =
SO
L
O
/
RHYTHM CH.
LED off = CLEAN
CH.
S
wi
tc
h
#3:
LED
o
n = D
SP
BANK "A"
LED off = DSP
BANK "B"
