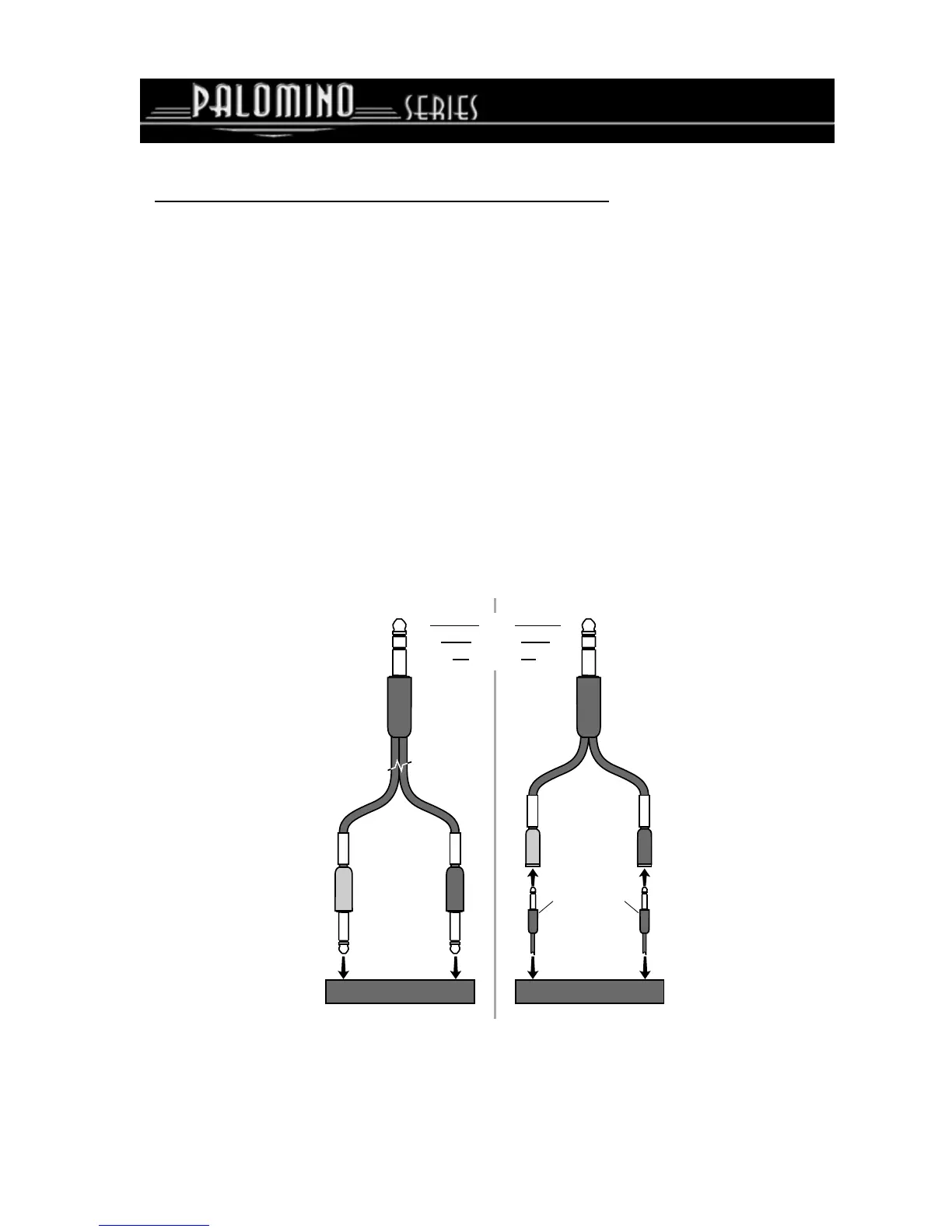

The Line Out jack can also serve as an Insert jack, allowing you to patch exter-
nal effects into the amplifier prior to its power amp stage. Use Crate’s STP201,
STP202 or STP203 stereo-to-mono Y-cord or an adapter such as Crate’s
YPP117 and two 1/4” mono shielded cables to connect to the effect as shown:
TIP
RING
SLEEVE
SEND
RETURN
GROUND
Stereo-to-mono Y-cord:
to Insert
jack
to Insert
jack
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO SHIELDED
CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
External Effect
TIP
RING
SLEEVE
Y-adapter and 2 cables:
External Effect
TIP
TIP
RING
RING
to
effect
"OUT"
jack
to
effect
"IN"
jack
Using the Line Out Jack as an Insert Jack:
