Crate Pro Audio CSM12 - Applications; DJ Setup

11
CSM8/12/16/24 Console Mixer

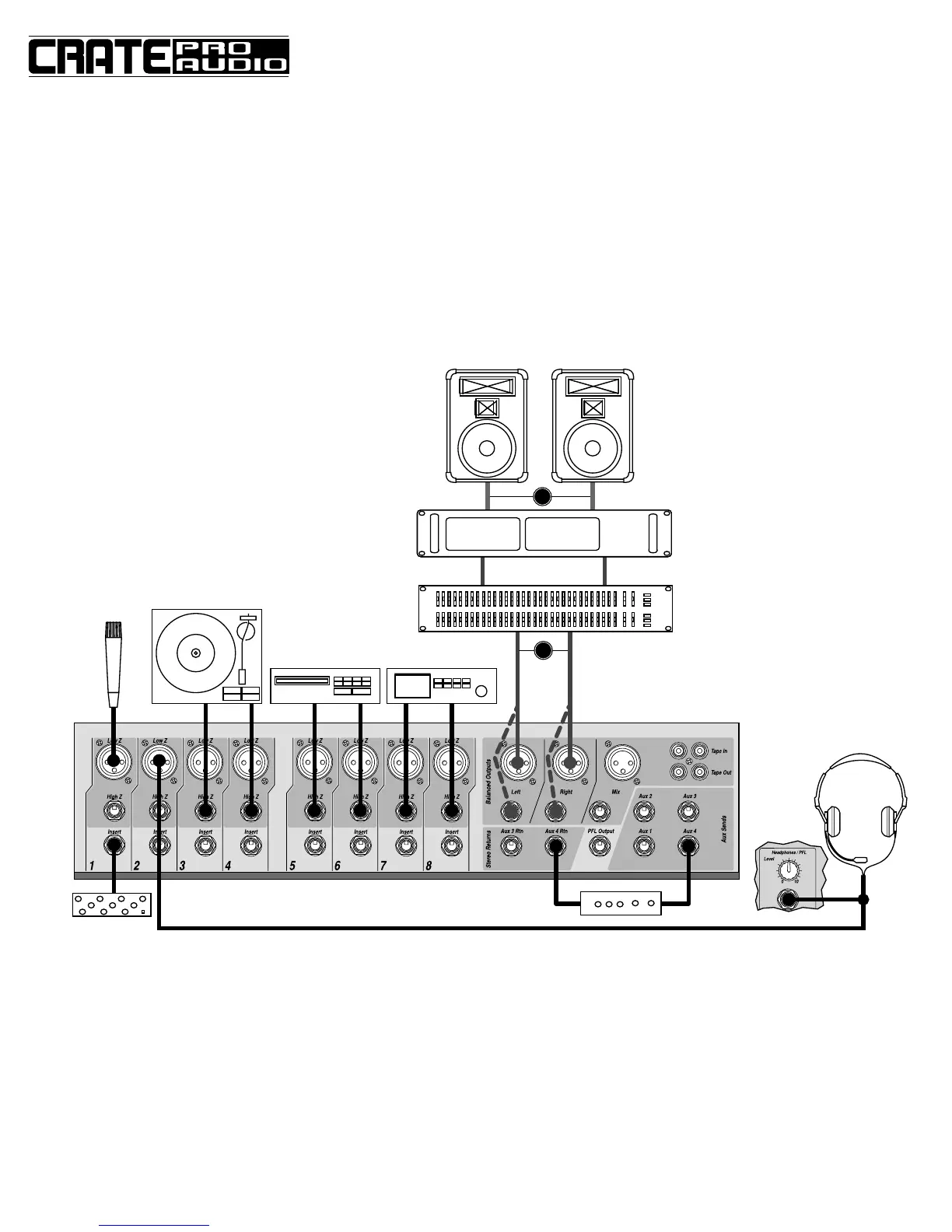

Applications: DJ Setup:
This setup shows one way of using the mixer and one stereo power amplifier to run the house speakers for a mobile DJ
setup. Two mono power amplifiers may be used in place of the one stereo amplifier.
Connect the components as follows:
(A) Connect a balanced or unbalanced signal cable between the mixer’s Left Balanced Output and the house power ampli-
fier’s Channel 1 Input. Connect the Right Balanced Output and the Channel 2 input in the same manner.
(B) Connect a speaker cable between the house power amplifier’s Channel 1 Outputs and the left house speakers’ Inputs.
Connect the Channel 2 Outputs to the right house speaker in the same manner.
(Note the optional use of a graphic equalizer in-line with the connections between the mixer and the power amplifier as shown below.)
CSM8/12/16/24
RL RL
RL
(PAN FULL
LEFT)
(PAN FULL
RIGHT)
(PAN FULL
LEFT)
(PAN FULL
RIGHT)
(PAN FULL
LEFT)
(PAN FULL
RIGHT)
STEREO
POWER AMP
(SPA1400, etc.)
HOUSE
SPEAKERS
(PS115HD,
PS215HDT,
etc.)
DUAL
GRAPHIC EQ
(LS3231,
LS2215)
CH.1
INPUT
CH.2
INPUT
CH.1
OUTPUT
CH.2
OUTPUT
CH.1
OUTPUT
CH.2
OUTPUT
CH.1
INPUT
CH.2
INPUT
LEFT
BAL.
OUT
RIGHT
BAL.
OUT
A
B
Controlling The Mixer’s Output Levels:
• Mains (House Speakers): Use the Left and Right master sliders (#31, page 6) to set the levels of the output signals for the
house speakers.
• Channels: Use the channel Pan controls (#11, page 4) to determine which channel signals are sent to the left and/or right
outputs.
