Crate VC-50H User Manual

6
Gain
5
010
Treble
5
010
Mid
5
010
Bass
5
010
Level
5
010
Reverb
5
010
5
010
VolumeInput
5
010
Treble
Channel A
5
010
Bass
Ch. Sel.
5
010
Effects Loop Ft. Sw. On On
Channel B A B Standby Mains
Gain
5
010
Treble
5
010
Mid
5
010
Bass
5
010
Level
5
010
Reverb
5
010
5
010
VolumeInput
5
010
Treble
Channel A
5
010
Bass
Ch. Sel.
5
010
Effects Loop Ft. Sw. On On
Channel B A B Standby Mains
Gain
5
010
Treble
5
010
Mid
5
010
Bass
5
010
Level
5
010
Reverb
5
010
5
010
VolumeInput
5
010
Treble
Channel A
5
010
Bass
Ch. Sel.
5
010
Effects Loop Ft. Sw. On On
Channel B A B Standby Mains
Gain
5
010
Treble
5
010
Mid
5
010
Bass
5
010
Level
5
010
Reverb
5
010
5
010
VolumeInput
5
010
Treble
Channel A
5
010
Bass
Ch. Sel.
5
010
Effects Loop Ft. Sw. On On
Channel B A B Standby Mains

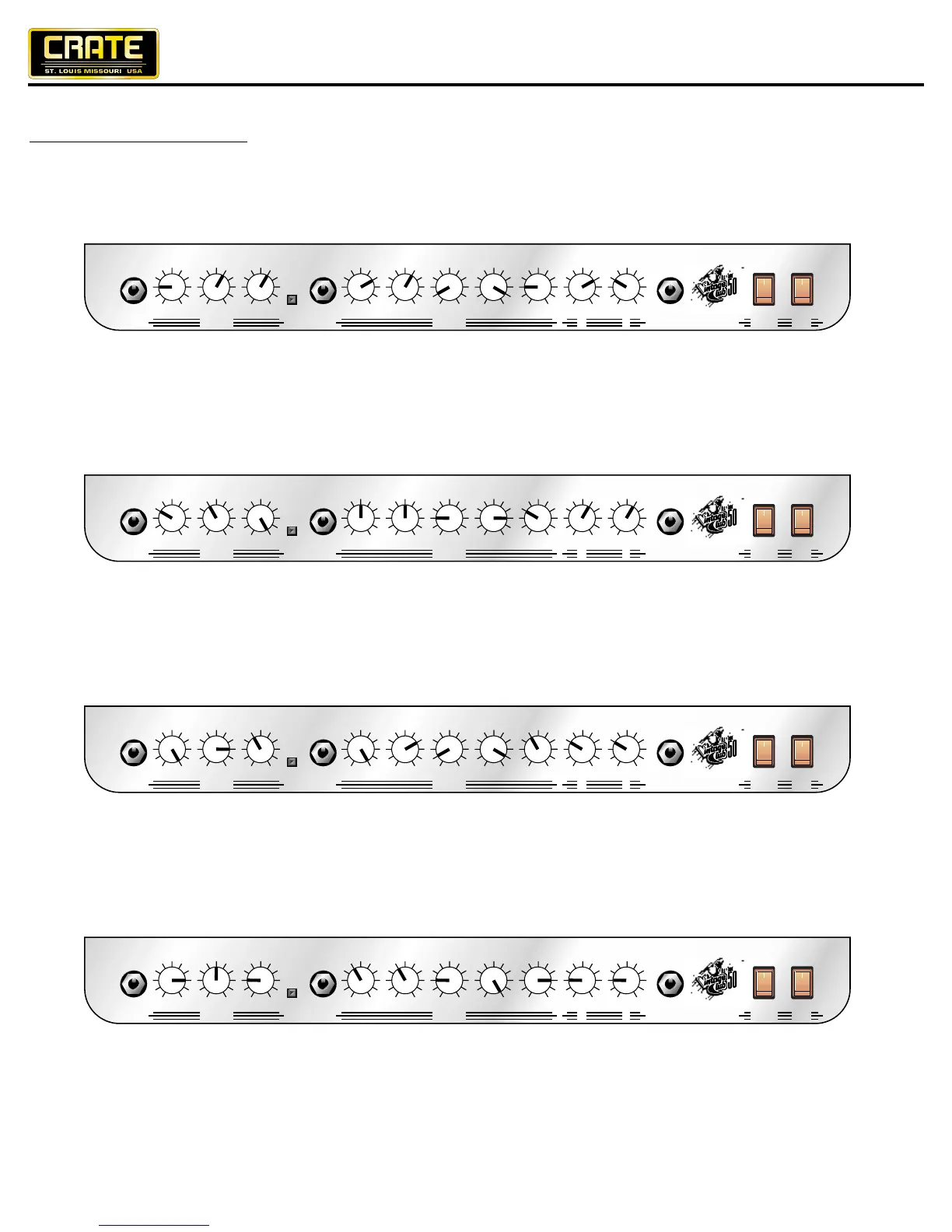

SPARKLING CLEAN CRUNCH RHYTHM
WARM & CLEAN BLUESY GRIND
BLUESY DIRT "DRIVE 'EM MAD" SHRED
TRY THESE AT MIDNIGHT!
Some Suggested Settings:
VC-50H Vintage Club Amplifier

Crate VC-50H Specifications

Output

output power rating	50W RMS @ 10% THD, 8 ohm load, 120 VAC
line out level	375mV RMS @ full power output

Impedance and Signal

input impedance	1M ohm
maximum signal accepted	2.8V peak to peak
signal to noise ratio Channel B	52dB
signal to noise ratio Channel A	58dB

Gain and Tone Control

gain Channel B	75dB
gain Channel A	68dB
tone control range Channel B Bass	12dB range @60Hz
tone control range Channel B Mid	10dB range @600Hz
tone control range Channel B Treble	7dB range @4kHz
tone control range Channel A Bass	20dB range @70Hz
tone control range Channel A Treble	16dB range @2kHz

Power Requirements

power requirements 120VAC	60Hz, 145VA/30W, 170VA/50W
power requirements 100/115VAC	50/60Hz, 145VA/30W, 170VA/50W
power requirements 230VAC	50/60Hz, 145VA/30W, 170VA/50W

Tube Types

preamp tube type	(4) 12AX7
power amp tube type	(4) EL84/6BQ5

Size and Weight

dimensions	21.25”W x 11”H x 11.25”D
weight	35 lbs
