5
10. HIGH: Use this control to adjust the high frequency level of Channel 3.
11. LEVEL: Use this control to adjust the output level of Channel 3.
12. MID: Use this control to adjust the midrange frequency level of Channel 3.
13. GAIN: Use this control to adjust the amount of distortion produced by Channel 3.
14. LOW: Use this control to adjust the low frequency level of Channel 3.

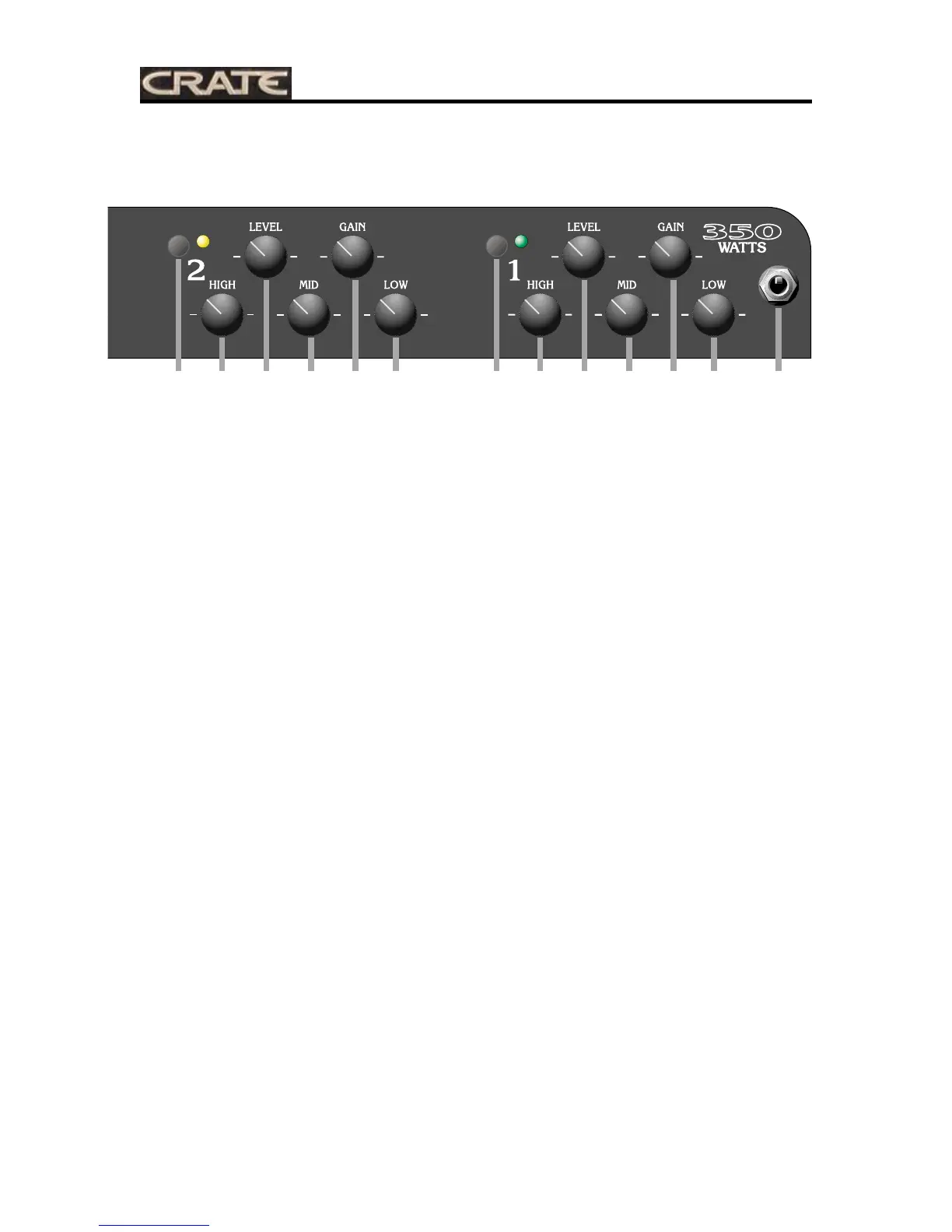

15. 2 (CH 2 SELECT): This switch, when depressed, selects Channel 2 as the active channel.
The adjacent yellow LED illuminates when Channel 2 is active. Channel 2 features a medium
gain FlexWave circuit for moderate distortion and “crunch.”
16. HIGH: Use this control to adjust the high frequency level of Channel 2.
17. LEVEL: Use this control to adjust the output level of Channel 2.
18. MID: Use this control to adjust the midrange frequency level of Channel 2.
19. GAIN: Use this control to adjust the amount of distortion produced by Channel 2.
20. LOW: Use this control to adjust the low frequency level of Channel 2.
21. 1 (CH 1 SELECT): This switch, when depressed, selects Channel 1 as the active channel.
The adjacent green LED illuminates when Channel 1 is active. Channel 1 features a low gain
FlexWave circuit for clean sounds or sounds with mild distortion.
22. HIGH: Use this control to adjust the high frequency level of Channel 1.
23. LEVEL: Use this control to adjust the output level of Channel 1.
24. MID: Use this control to adjust the midrange frequency level of Channel 1.
25. GAIN: Use this control to adjust the amount of distortion produced by Channel 1.
26. LOW: Use this control to adjust the low frequency level of Channel 1.
27. (INPUT): Use this jack to connect your guitar to the amplifier by means of a shielded instru-
ment cable.
VTX350H
Three-Channel Guitar Amplifier with Advanced DSP
