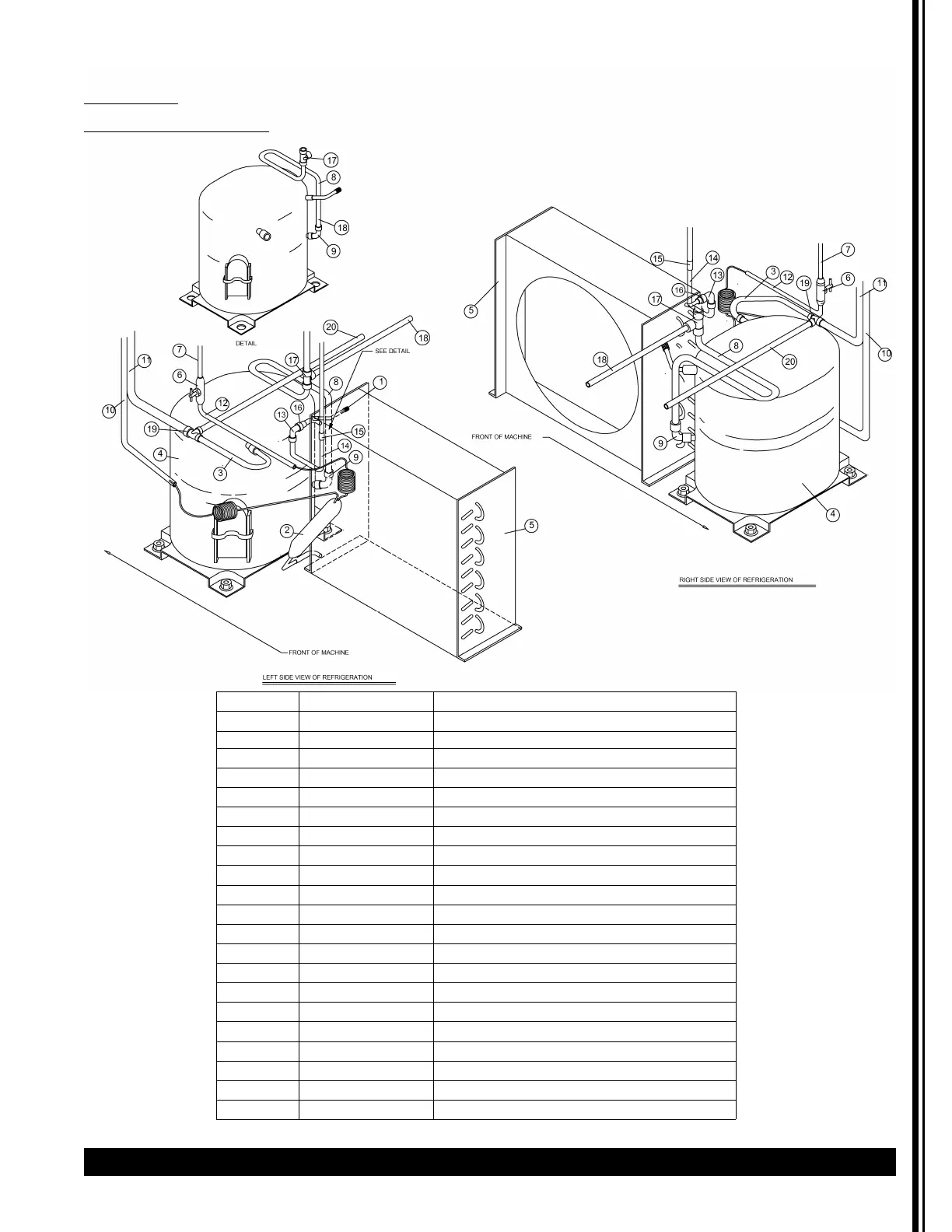

Refrigeration Diagram and Parts List
Model 3311
115V Air-Cooled Model
ITEM PART NO. DESCRIPTION
1 W0650501 ACCESS VALVE
2 W0200300 DRIER/CAP TUBE ASSEMBLY
3 W0201191 SUCTION LINE
4 W0200123 COMPRESSOR
5 W0200256 CONDENSER
6 W0650416 NEEDLE VALVE
7 ------ HOPPER COOLANT LINE
8 W0201009 HOT GAS LINE
9 W0620112 3/8” COPPER ELBOW
10 ------ EVAPORATOR LINE
11 ------ SUCTION LINE
12 W0201133 COOLANT LINE
13 W0620107 90 DEG. STREET ELBOW
14 W0201151 3/8” COND. CONNECTION
15 W0620103 3/8” COPPER COUPLE
16 W0201153 5/16 X 1/4 RED. COUPLE
17 W0620114 1/4” COPPER TEE
18 W0201006 HIGH SIDE PROCESS TUBE
19 W0620106 1/2 S 3/8 X 3/8 COPPER TEE
20 W0201008 LOW SIDE PROCESS TUBE
21 W0201004 HOT GAS EXTENSION
