Closed Swing
Door Catch
Open Swing
Door Catch
2
SL

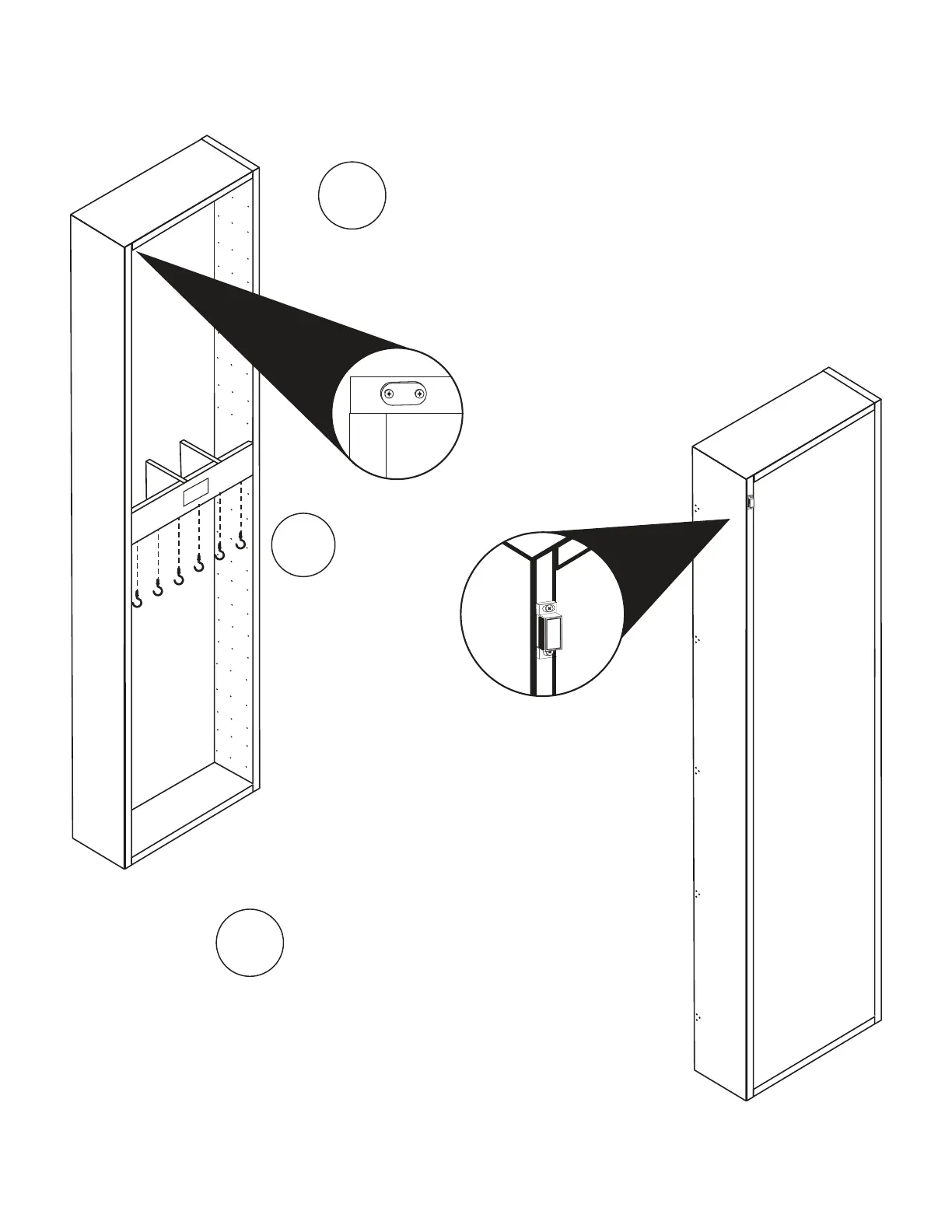

Attach the pill-shaped side of (1) Closed
Swing Door Catch to the pre-drilled holes
in the top left corner of the Left Swing Door
using the included screws. Save the rectangular
side for a later step.
7
Twist in 6 Metal Hooks
to the bottom of the
Pocket Shelf.
8
Attach the white plastic side of (1) Open
Swing Door Catch to the pre-drilled holes
in the right back edge of left door
using the included screws.
Make sure catch is on the back edge on the
same side of the door as the hinge holes. Also
be sure the magnet is facing out.
9
