Proprietary, patented product and assembly instructions. Do not copy or distribute.
LB 1
Closed Swing
Door Catch
Open Swing
Door Catch

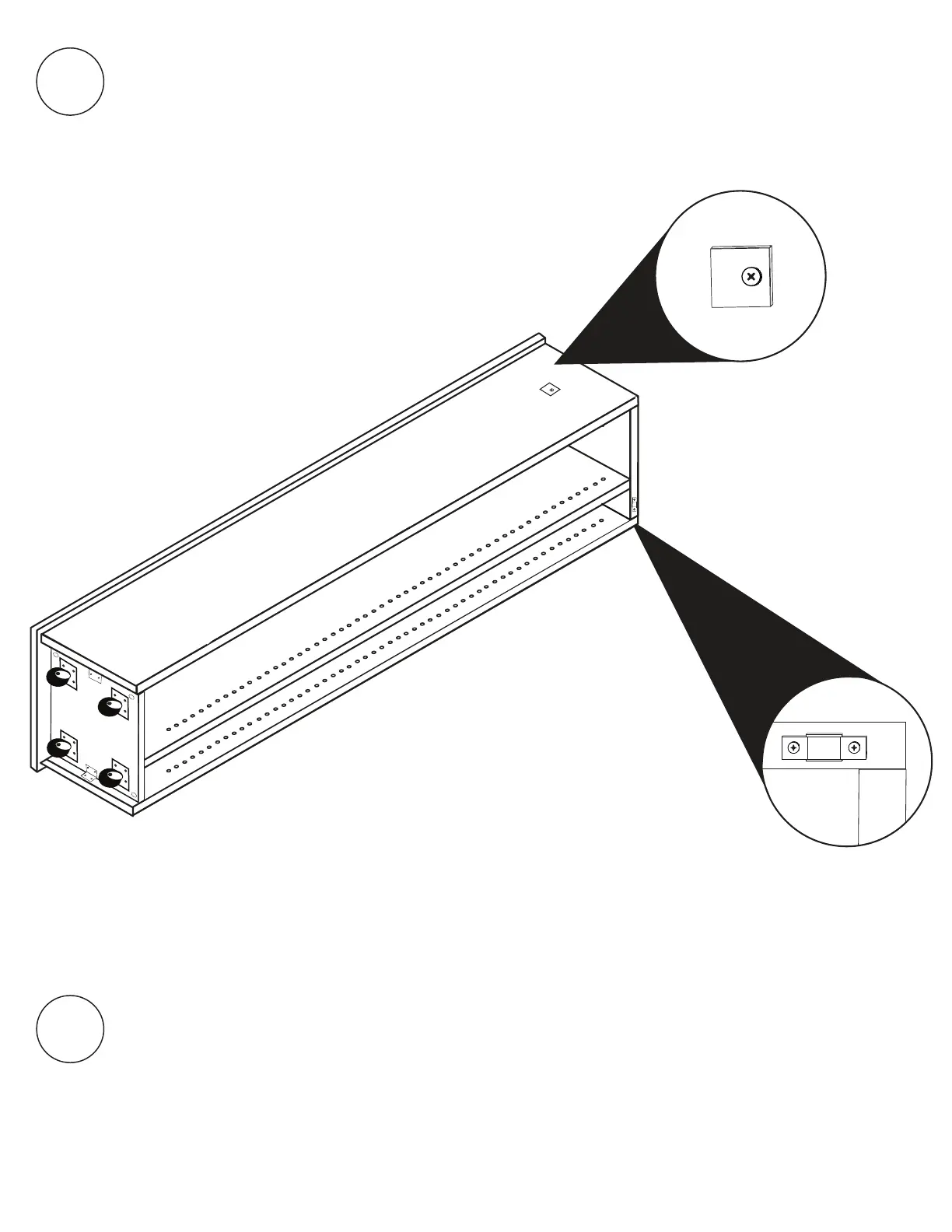

Attach the square metal side of (1)
Open Swing Door Catch to LB1 of
the Left Box using the included
screws. Use pre-drilled holes
to guide you.
10
Attach the rectangular side of (1)
Closed Swing Door Catch to the
pre-drilled holes in the top right
corner of the left swing door
using the included screws.
11
