#1 Screws
S Back
LB1
Barrel faces down
so that short side of
hinge drops down
below edge of Left
Box.
It is SAFE to use
an Electric Screw Driver
to install hinges.

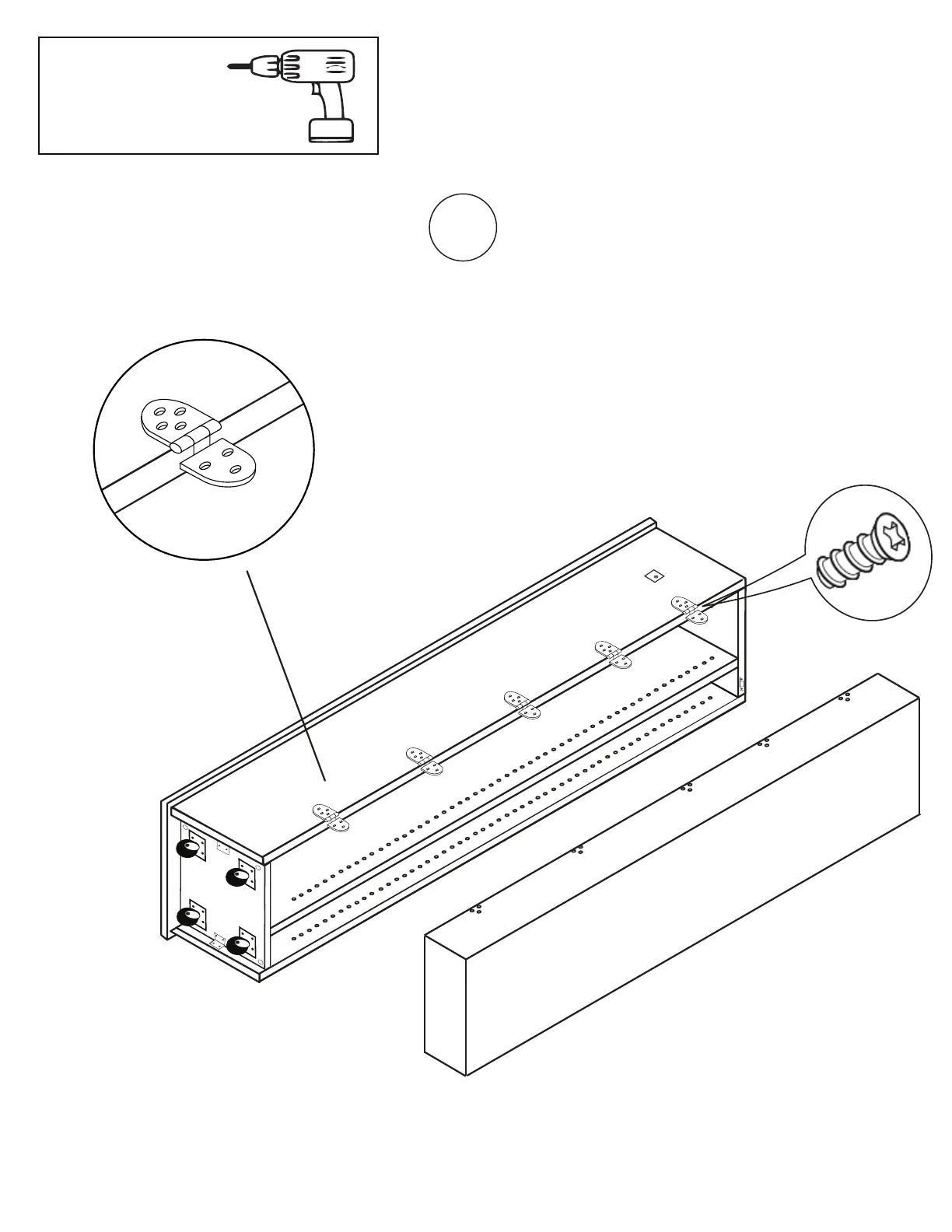

Turn Left Box onto LB2 and install
(5) Offset Hinges to LB1 using
(20) #1: 13 mm Euro Screws.
With two people, attach Left Swing Door
to CB 1 using (15) #1: Screws 13mm Euro Screws.
