35
Proprietary, patented product and assembly instructions. Do not copy or distribute.

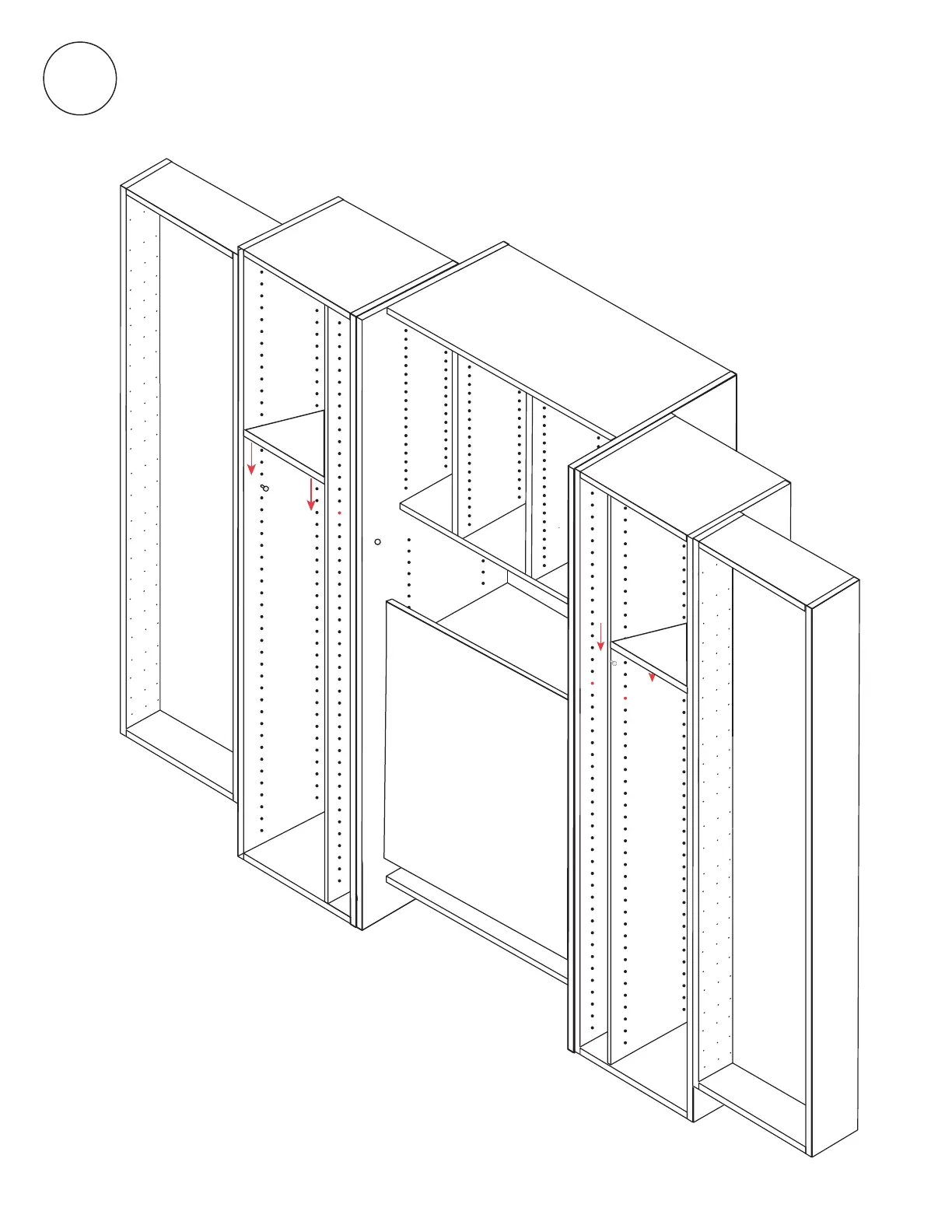

Push in (8) Connecting Bolts at shelf peg
hole #20 from the top in to left & right
boxes. Place L/R Shelf
over Connecting Bolts with grooves and built-in
cams facing down but visible on the underside of the shelf. Use a phillips screw
driver to tighten cams until locked.
**L/R Shelf are adjustable but MANDATORY
#20
#20
LH
Connecting
Bolts
15
