Proprietary, patented product and assembly instructions. Do not copy or distribute.

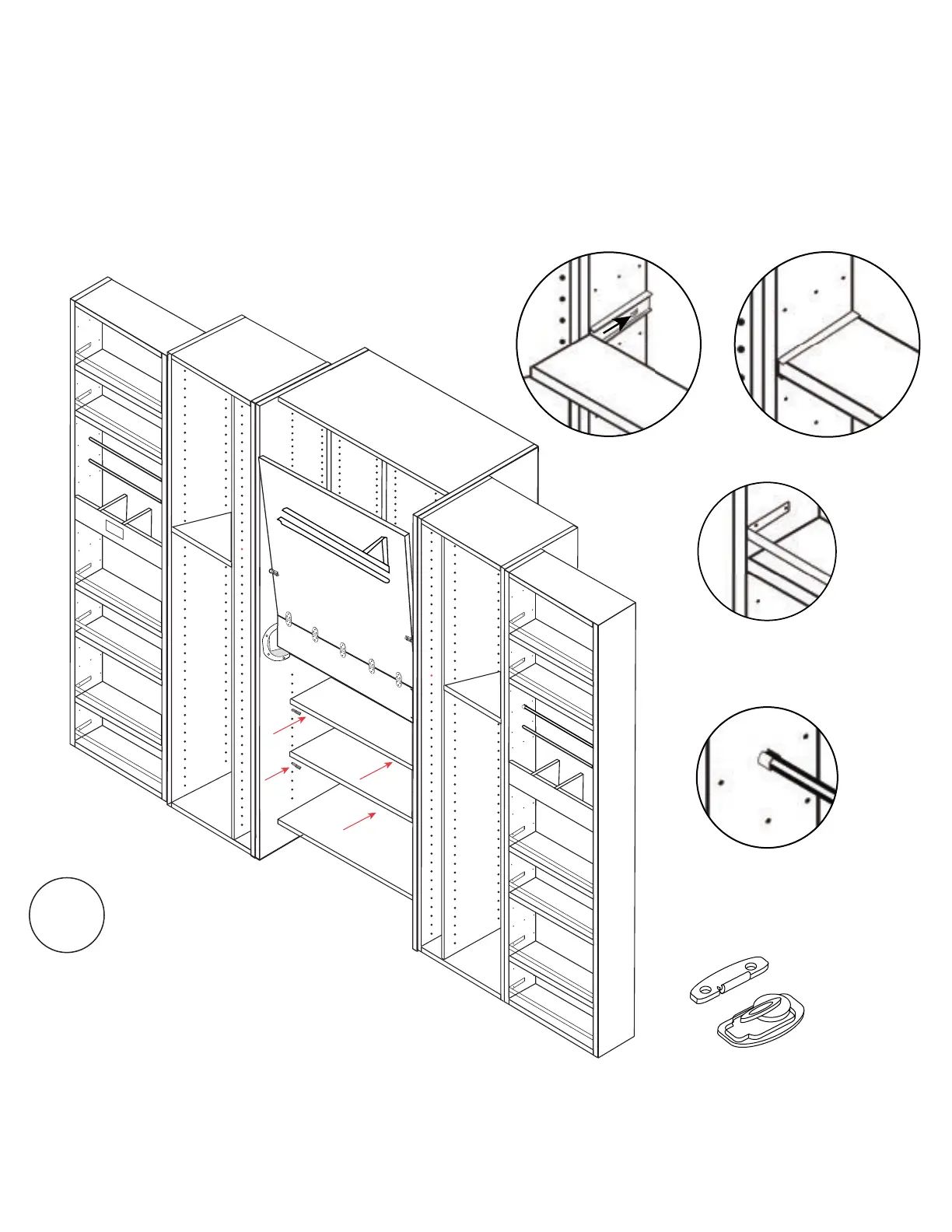

Install (8) Metal Shelf Pegs to
shelf peg holes under table. Slide
in (2) R/L shelves from Box 3.
Install (4) Metal Rods
using (8) Acrylic Cups.
Optional: use included screws to install Sash Lock into
pre-drilled holes in the top of Left & Right boxes. *If
installing crown, DO NOT install sash lock
Install (12) Acrylic
Guards.
LH
x1
Optional Sash Lock
(screws included)
LH
Swing Door
Shelf Supports
Box 6: Center Box Long Adjustable Shelf (CB Long Shelf), (2) Center Box Middle
0.5” Adjustable Shelf (CB Middle Shelf), (4) Standard 0.5” Adjustable Shelf
(Standard Shelf).
BOX 6 & 7: Adjustable Shelves 1 & 2
Install Swing Door Shelf Supports in the
back two shelf support holes in the swing
door. See below for suggested placement.
16
Box 7: Center Box Long Adjustable Shelf (CB Long Shelf), (2) Standard 0.5”
Adjustable Shelf (Standard Shelf), Center Box Middle 0.5” Adjustable Shelf
(CB Middle Shelf).
Rest on shelf pegs.
CB Long Shelf
See tote configuration
pages for other suggested
adjustable shelf locations.
Metal Shelf
Pegs
