Create WIND CALM - Remote Control Connection; Blades Assembly

ENGLISH
10
Ground
wire
L
N
DC
L (black)
Input N
(white)
Remote
control
receiver
Neutral N (white)
Ground wire
Light L (blue)
Grey DC motor L
Pink DC motor L
Red DC motor L
Receiver placement: Attach the motor on the left hook and then conduct the wiring.

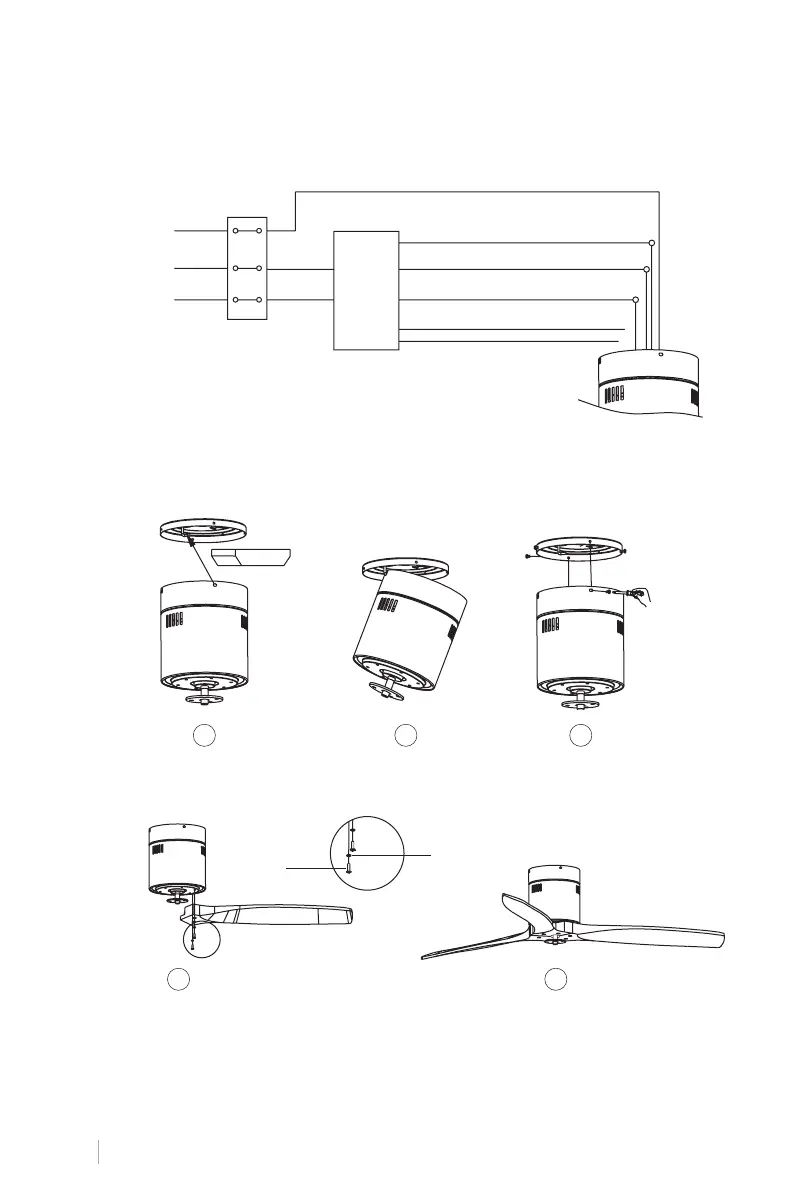

REMOTE CONTROL CONNECTION
1 2 3
BLADES ASSEMBLY
Blade arm
screw
Washer
Tip: Washers for blade screws can be set on each blade screw prior to installing blades. Align
the blade holes with the motor screw holes. Tighten all the screws once all the blades are
attached. Before securing screws permanently, repeat with remaining blade arms.
1 2
