MODEL PS18EAS
19862-600 Rev E (01-19)
© Copyright 2014, Creative Playthings
Page 9

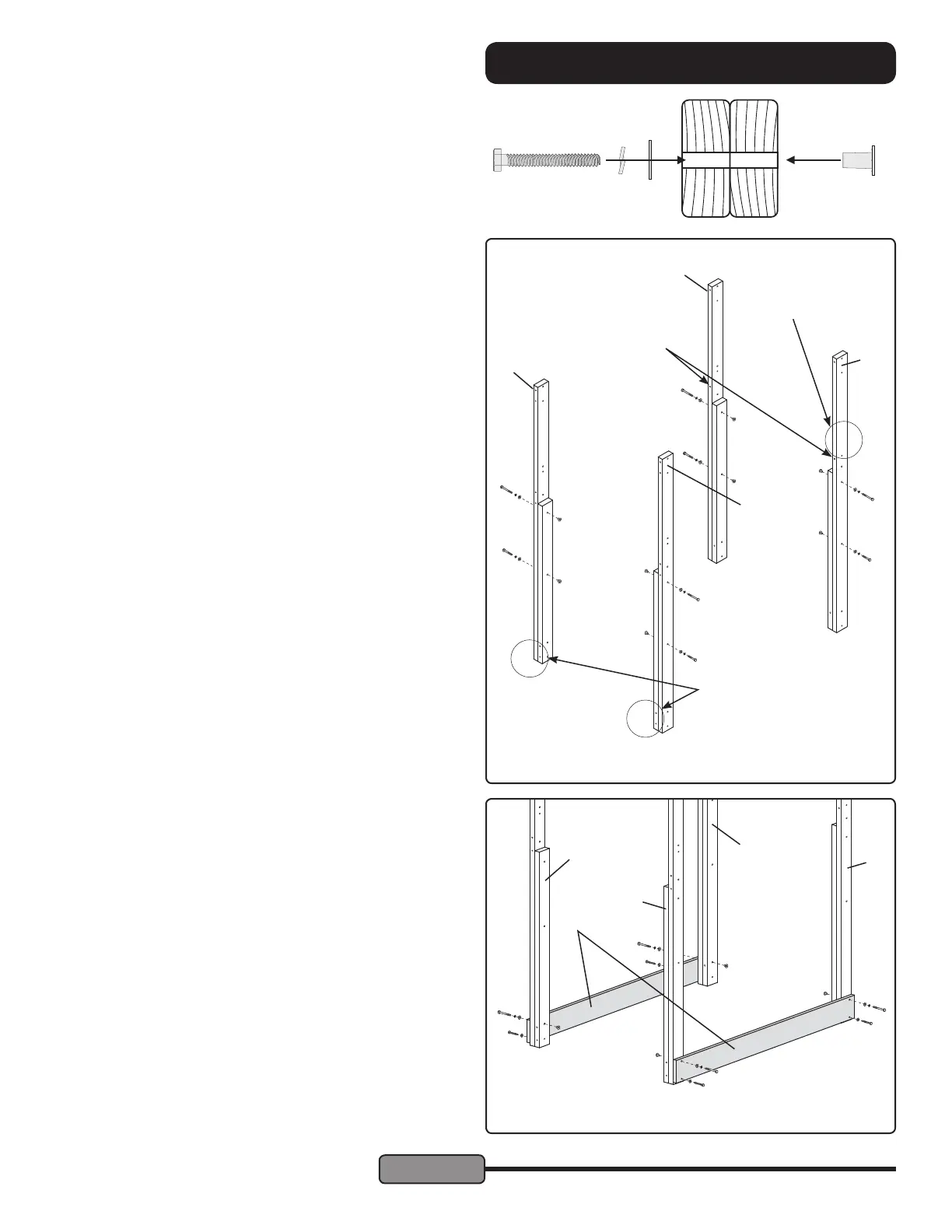

ASSEMBLY INSTRUCTIONS
STEP 1 — Assemble Posts:
Locate Back Left Post (AA), Back Right Post (AB), Front Left
Post (AC), and Front Right Post (AD).
Secure each post using two 1/4 x 3" Hex Bolt Assemblies
through the two central holes as shown at right. If the tip of
the Hex Bolt protrudes, add another Flat Washer next to the
rst.
Hex Bolt Assembly:
Throughout this guide a Hex Bolt Assembly consists of
one Hex Bolt, one Lock Washer, one Flat Washer and one
Weld Nut. Long Weld Nuts are used unless otherwise noted.
AA
AA
J
AC
AC
AB
AB
AD
AD
View from the
front of the set.
1) These holes are
higher on back posts.
3) These holes face
opposite on the left
& right front posts
2) No holes here
on Back Right Post
Hint: The posts can be difcult to tell apart. There are three
clues at right.
1) The holes for the Platform Ends are higher on the back
Posts.
2) There are no holes for a Lower Wall Support on the Back
Right Post.
3) Look at the holes on the narrow edge of the post to tell the
Left Front Post from the Right Front Post.
1/4 x 3-1/2" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.
STEP 2 — Sandbox Sides:
Fasten one Sandbox Side (J) to the Front Left Post and Back
Left Post using 1/4 x 3-1/2" Hex Bolt Assemblies through the
top holes and 1/4 x 2" Lag Screws and Flat Washers through
the bottom holes.
Repeat the process with the other Sandbox Side and right
posts.
Note: Additional help is suggested for
steps 2 through 6 to support the Corner
Posts.
