MODEL PS18SPH
19861-300 Rev A (07-20)
© Copyright 2013, Creative Playthings
Page 15
ASSEMBLY INSTRUCTIONS

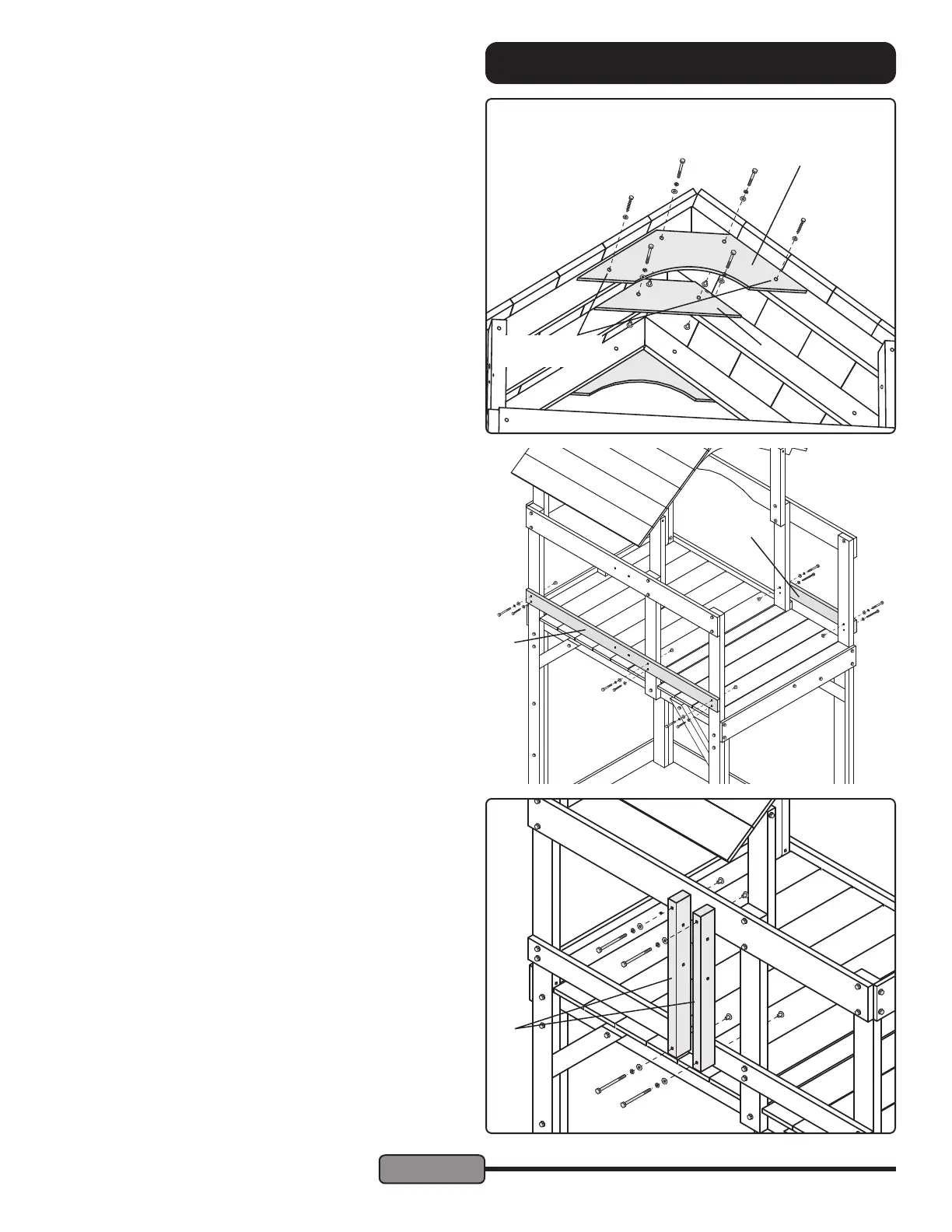

STEP 16 — Ceiling Joists:
Adjust the Roof Panels so the angled ends are even with
each other. Fasten an End Joist (AA) to the outside of the
Rafters on each end. Use two 1/4 x 2" Hex Bolt Assemblies
through the upper holes of each End Joist.
Fasten the Ceiling Joist (T) to the center Rafters using two
1/4 x 2" Hex Bolt Assemblies.
Adjust the Roof so it looks even. Adjust the End Rafters to
look straight and centered in place. Use a 3/16" diameter
drill to make pilot holes in the Rafters through the lower
holes in the End Joists. Secure the End Joists to the Rafters
using 1/4 x 2" Lag Screws and Flat Washers through the
bottom holes.
STEP 17 — Lower and Short Wall Supports:
Fasten the Lower Wall Support (R) to the Back Left Post,
left Midpost and Front Left Post using 1/4 x 2" Hex Bolt As-
semblies through the upper holes. Secure the three lower
holes in the Lower Wall Support using 1/4 x 2" Lag Screws
and Flat Washers.
Fasten the Short Wall Support (S) to the right Midpost and
Front Right Post using 1/4 x 2" Hex Bolt Assemblies through
the upper holes. Secure the lower holes using 1/4 x 2" Lag
Screws and Flat Washers.
Drill 3/16" diam-
eter pilot holes.
T
AA
R
S
STEP 18 — Swing Mounts:
Fasten the two Swing Mounts (AH) to the Left Wall Support
and Lower Wall Support using two 1/4 x 3-1/2" Hex Bolts
each. Be sure to orient the Swing Mounts so the holes on the
sides are closer to the top.
3-1/2" Hex Bolts
AH
1/4 x 2" Hex Bolts
top, 1/4 x 2" Lag
Screws bottom
