ASSEMBLY INSTRUCTIONS

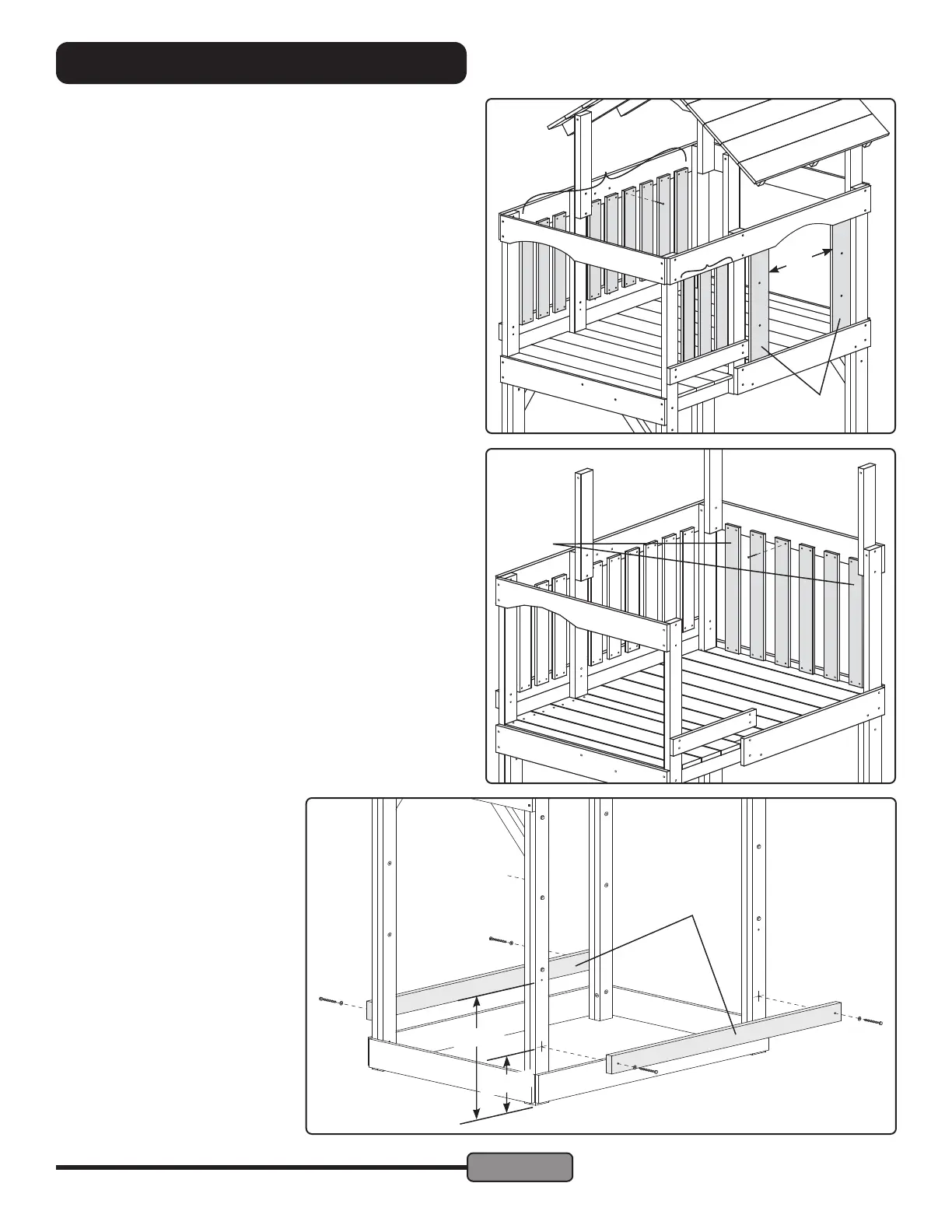

STEP 19 — Short Wall Slats & Entrance Slats:
Fasten three Short Wall Slats (AG) to the Left Wall Support and
Lower Wall Support using four #8 x 1-1/4" Screws each. Even-
ly space the Slats between the front left post and the left Mid
Post. The gap between the Slats will be approximately 1-5/8".
Fasten six Short Wall Slats (AG) to the Left Wall Support and
Lower Wall Support using four #8 x 1-1/4" Screws each. Even-
ly space the Slats between the back left post and the left Mid
Post. The gap between the Slats will be approximately 1-7/8".
Fasten three Short Wall Slats (AG) to the Right Top Support
and Short Wall Support using four #8 x 1-1/4" Screws each.
Evenly space the Slats between the front left post and the left
Mid Post. The gap between the Slats will be approximately
1-5/8".
Fasten the Entrance Slats (AL) to the inside of the Right Wall
Support and Rock Wall Mount using #10 x 1-5/8" Screws. Leave
a gap of 19" between the Entrance Slats.
STEP 20 — Narrow Wall Slats:
Fasten six Narrow Wall Slats (AK) to the Platform Back and
End Support using four #8 x 1-1/4" Screws each. Evenly space
the Slats between the Back Left Post and Back Right Post. The
gap between the Slats will be approximately 2-3/4".
NOTE: If you intend to mount Monkey Bars to the back of
this set, wait to install the Narrow Wall Slats.
Parts omitted
for clarity
AG
AG
AK
AN
AL
19"
STEP 21 — Seat Supports:
There are pilot holes in the post
assemblies at 10-1/4" and 23"
from the bottom of the posts.
In the lower holes fasten one
Picnic Support (AN) to the right
Post Assemblies using one 1/4
x 3-1/2" Lag Screw and one 1/4"
Flat Washer for each end.
Repeat with a second Picnic
Support on the left Posts.
10-1/4"
23"
3-1/2" Lag Screws
