© Copyright 2013, Creative Playthings
MODEL PS18SPH
19861-300 Rev A (07-20)
Page 20
ASSEMBLY INSTRUCTIONS

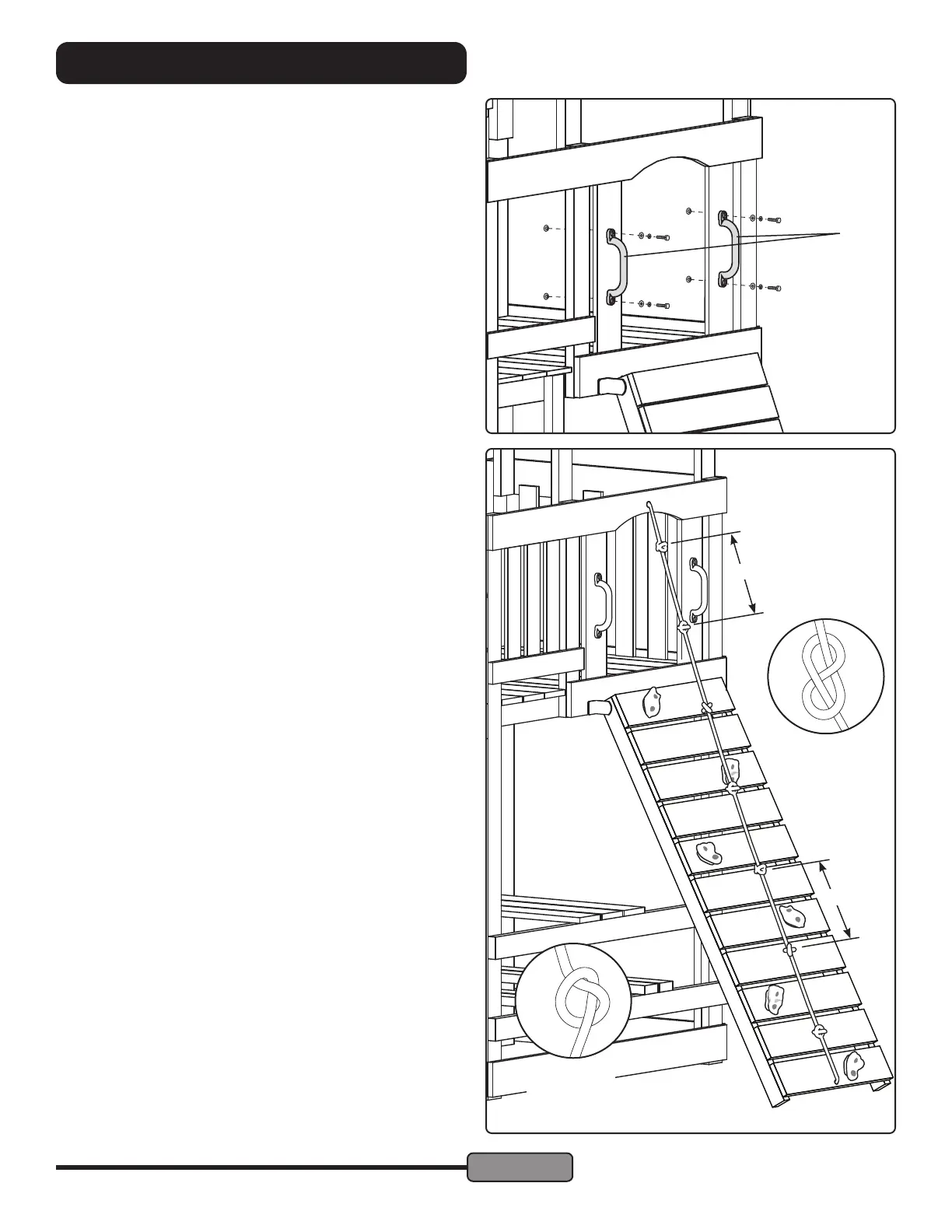

STEP 31 — Climbing Rope:
Push one end of the Climbing Rope (AV) through the hole in
the Right Wall Support. Tie a gure-eight knot at the end of
the rope, inside the gym. Leave at least 3" of rope extending
beyond the knot inside the gym.
From the outside of the gym, tie an overhand knot approxi-
mately every 11" along the length of the rope. Make sure
each knot is tight.
Push the loose end of the rope through the hole in the Bot-
tom Rope Support. Pull the rope taut and tie a gure-eight
knot to secure it.
Set the Climber Rails into the playground surface to en-
sure that the bottom rope connection is as close to the
ground as possible.
IMPORTANT: Check the rope often. At no time should
the bottom end of the rope be untied or the rope loose
enough to form a loop. This presents extreme danger to
your children.
Figure Eight
Knot
Overhand
Knot
If the rope is too
long you can tie
extra knots along
the length of the
rope. If too short,
remove knots.
Parts omitted
for clarity
1/4 x 1"
Hex Bolt
AU
STEP 30 — Hand Grips to Entrance Slats:
Fasten one Hand Grip (AU) to each Entrance Slat above
the Rock Climber using two 1/4 x 1" Hex Bolt Assemblies
for each.
11" Typical
11" Typical
