MODEL PS18SPH
19861-300 Rev A (07-20)
© Copyright 2013, Creative Playthings
Page 21
ASSEMBLY INSTRUCTIONS
8"
3/16" Pilot Drill & 1/4" x
1-1/2" Lag Screw
AU

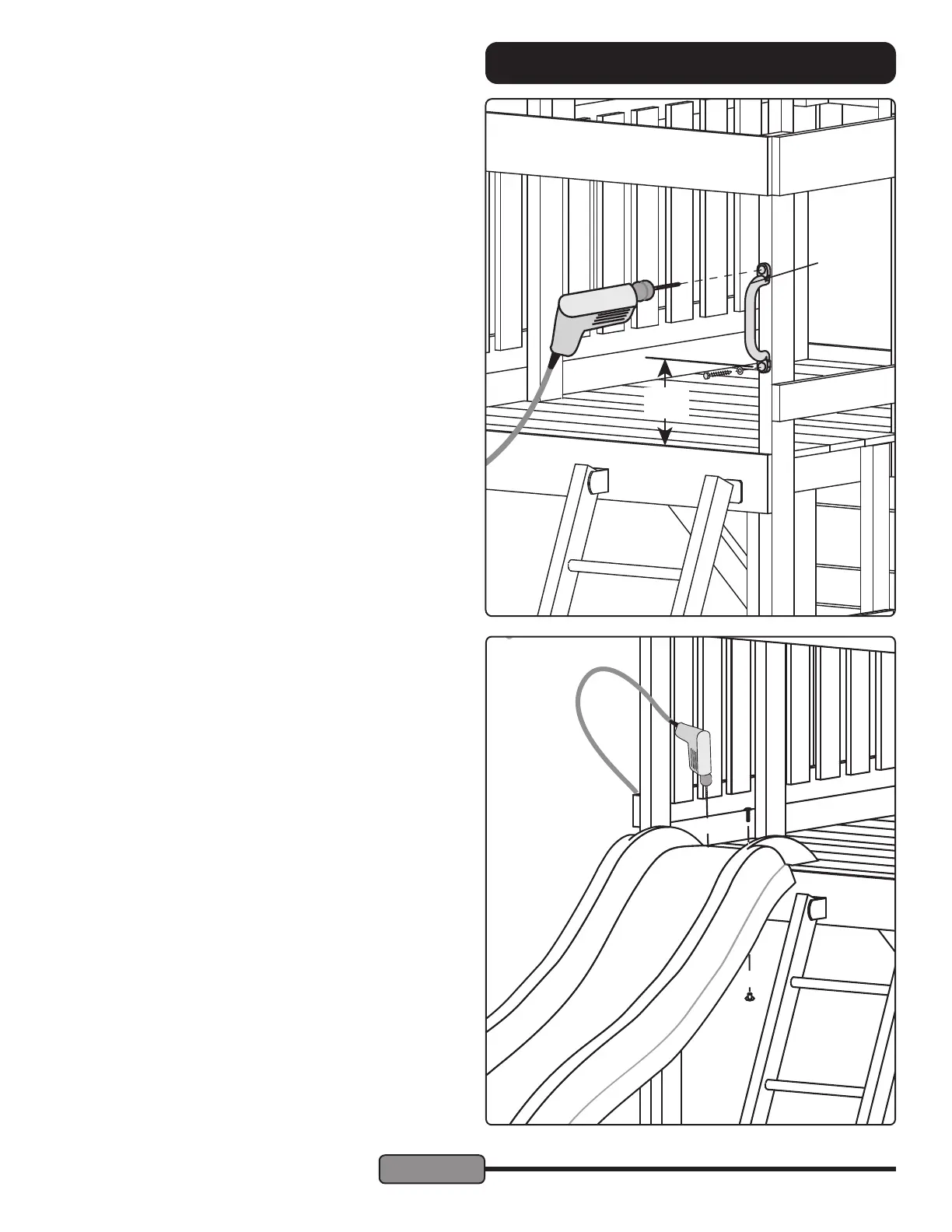

STEP 32 — Front Hand Grip:
Hold one Hand Grip (AU) against the front face of the front
right post above the Access Ladder. The lower hole should
be 8" above the top of the platform.
Drill 3/16" diameter pilot holes 1" deep into the post through
the holes in the Hand Grip. Fasten using 1/4 x 1-1/2" Lag
Screws and Flat Washers.
STEP 33 — Slide:
Place your Slide in the opening in the tower front as shown.
Pull it tight to the platform until it stops against the Platform.
Check that the Slide extends out perpendicular from the play
set.
Using the holes in the slide for guides, drill two 5/16" diam-
eter holes through the Platform Boards and secure the Slide
using two 1/4" x 1" Truss Head Bolts from the top and 1/4"
Weld Nuts from below.
Note: Depending on the Slide, you may nd the holes you
drill encounter a framing member. If so, stop drilling after
piercing the Deck Board. Loosen the Deck Board and insert
the Weld Nuts from the underside. If desired, a 1" spade drill
bit can be used to clear a space for the base of the Weld Nut
in the Framing Member. Re-attach the Platform Board and
continue securing the Slide.
