Creative DTT 3500 Digital - Signal Source Connection Diagram

6

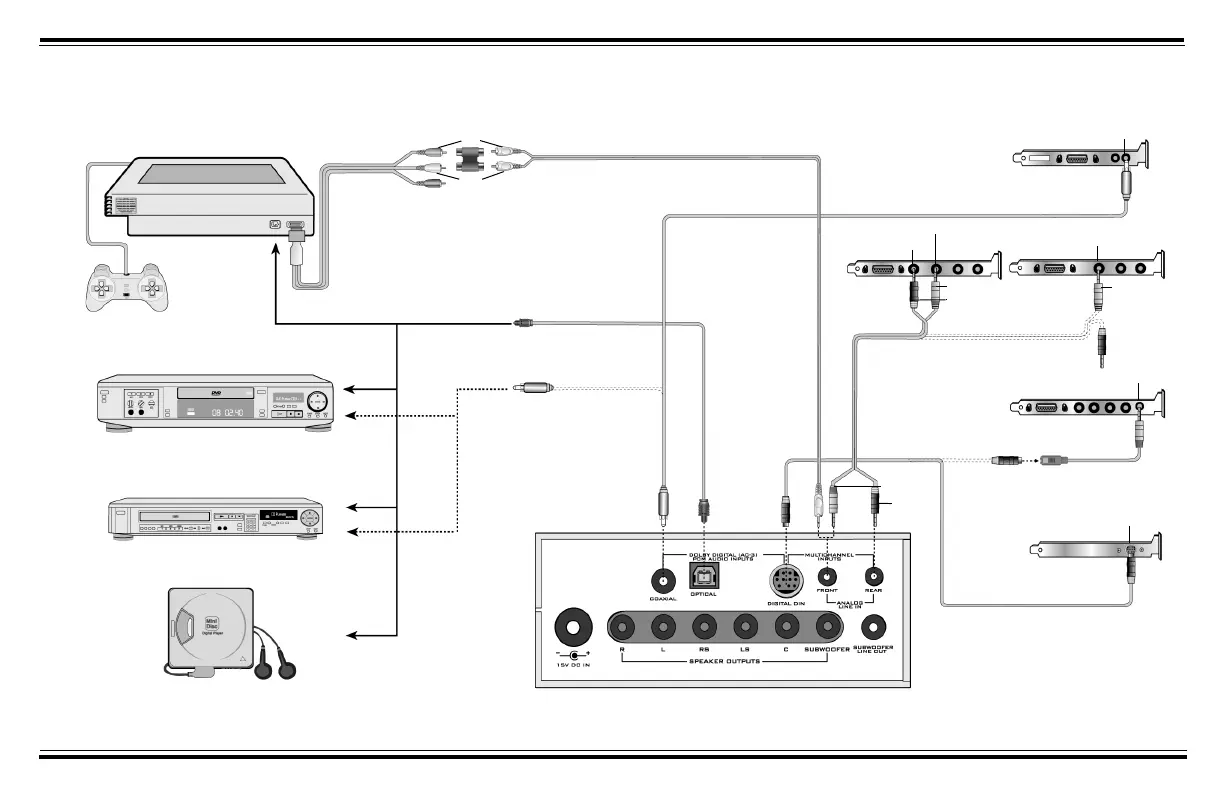

Signal Source Connection Diagram
Dual Female-to-Female RCA
Game Console
DVD Player
CD Player
MD Player
Digital Output (Eg. PC-DVD Encore)
4-Ch Sound Card Output
(Eg. Sound Blaster Live!)
Digital Output
(Bundled with Live! Drive IR)
REAR OUT
LINE OUT
DIGITAL OUT
OPTICAL OUTPUT
DIGITAL OUT
Stereo to Dual RCA Cable
SPDIF Cable
(RCA to RCA)
Optical Cable
Tandem Audio Cable
SPDIF DIN Cable
2-Ch Sound Card Output
(Eg. Sound Blaster AWE64)
LINE OUT
Lime-Green
Black
Lime-Green
Lime-Green
Black
Digital Output (Sound Blaster 5.1 Sound Card)
Minijack to DIN Cable
White
Red
COAXIAL OUTPUT
DIGITAL OUT
OR
OR
