SPEAKER CONFIGURATION GUIDE
Copyright 1998. Creative Technology Ltd. Sound Blaster is a registered trademark and Sound Blaster Live! logo, Sound Blaster Live!,
Environmental Audio are trademarks of Creative Technology Ltd. SoundWorks is a registered trademark and PCWorks and MicroWorks are
trademarks of Cambridge SoundWorks Inc. All other brand names are registered trademark or trademarks or their respective owners.
There are several ways to configure your speaker system for the best
Environmental Audio experience. Below are some of our recommendations
:
•
Cambridge SoundWorks PCWorks
FourPointSurround - Ideal Companion
This four-channel speaker system is the Best Companion to Sound Blaster Live! that money can buy. It lets
you enjoy the best Environmental Audio experience. Simply select the ‘4-speaker’ option in the Speaker
Configuration settings under Sound Blaster Live!’s AudioHQ application.
F
R
F
R
PCW
ORKS
B Y H E N R Y K L O S S
CAMBRIDGE
SOUNDWORKS
BASS
LEVEL
AUDIO
INPUT
SPEAKER
OUT
12-14V DC IN
PO WE R
ON/O FF
REAR
REAR
LEFT
REAR
RIG H T
FRONT
FRONT
LEFT
FRONT
RIG H T
CAMBRIDGE
SOUNDWORKS
CAMBRIDGE
SOUNDWORKS
CAMBRIDGE
SOUNDWORKS
CAMBRIDGE
SOUNDWORKS
12VDC IN
PCWorks FourPointSurround
LINE IN
MIC IN
LINE OUT
REAR OUT
Mic_Conn
TAD CD_IN
AUX_IN
Pc-Spk
I2S_IN CD_SPDIF
VOL_CTLMB-Pro
EMU10K1
AUD_EXT
JOYSTICK/
MIDI
SB LIVE! MAIN BOARD
CT4620
F
OUR
P
OIN T
S
UR RO U ND

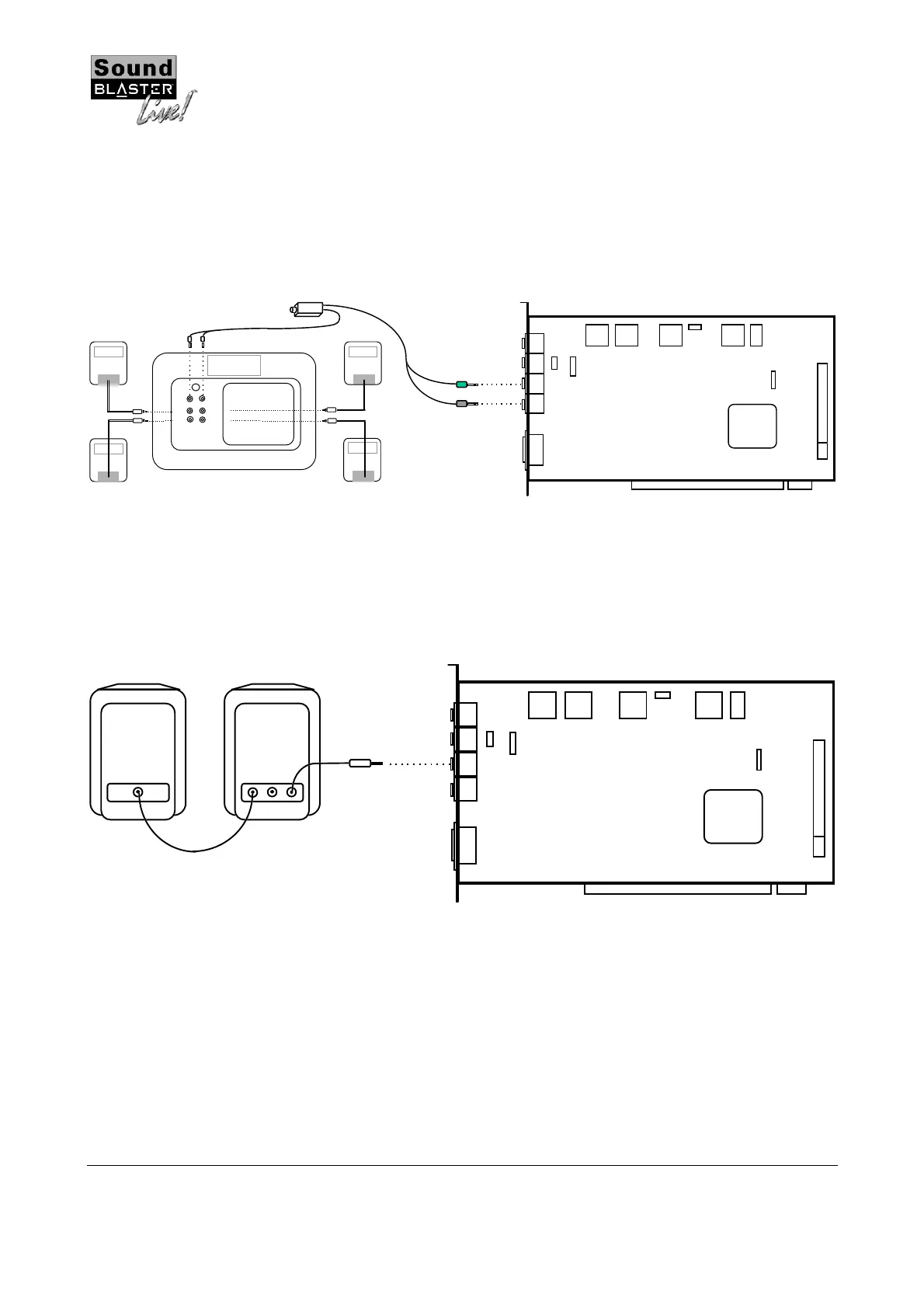

Figure 1: SB Live! connectivity to PCWorks FourPointSurround
•
Two Speakers or Headphones - Legacy speaker system
Though not ideal, you can still experience Environmental Audio with two speakers or headphones. Simply
select the ‘2-speaker’ or ‘headphone’ option in the Speaker Configuration settings under Sound Blaster
Live!’s AudioHQ application.
LINE IN
MIC IN
LINE OUT
REAR OUT
Mic_Conn
TAD CD_IN
AUX_IN
Pc-Spk
I2S_IN CD_SPDIF
VOL_CTLMB-Pro
EMU10K1
AUD_EXT
JOYSTICK/
MIDI
SB LIVE! MAIN BOARD
CT4620
Figure 2 : SB Live! connectivity to legacy speaker system
