SPEAKER CONFIGURATION GUIDE
•
Upgrade you Speakers!
If you already own a speaker system, it is highly recommended to add on more speakers for a multiple
speaker system to enjoy the best Environmental Audio experience.
Existing Speaker System Upgrade Option What You’ll Get
PCWorks PCWorks
Cool Environmental Audio experience
(
illustrated in Figure 3
)
SoundWorks SoundWorks
Great Environmental Audio experience
with good bass delivery
MicroWorks MicroWorks
The Ultimate Environmental Audio
experience with big sounds and real
solid bass response!
SBS20, SBS50 or any
powered two-speaker system
PCWorks Place the new PCWorks as your
front speakers and your existing pair at
the rear
Table 1 : Speaker upgrade options for users with existing speaker system
LINE IN
MIC IN
LINE OUT
REAR OUT
Mic_Conn
TAD CD_IN
AUX_IN
Pc-Spk
I2S_IN CD_SPDIF
VOL_CTLMB-Pro
EMU10K1
AUD_EXT
JOYSTICK/
MIDI
SB LIVE! MAIN BOARD
CT4620
PCW
ORKS
/
S
OUND
W
ORKS
/
M
ICRO
W
ORKS
CAMBRIDGE
SOUNDWORKS
CAMBRIDGE
SOUNDWORK S
CAMBRIDGE
SOUNDWORK S
PCW
ORKS
/
S
OUND
W
ORKS
/
M
ICRO
W
ORKS
CAMBRIDGE
SOUNDWORKS
CAMBRIDGE
SOUNDWORK S
CAMBRIDGE
SOUNDWORK S

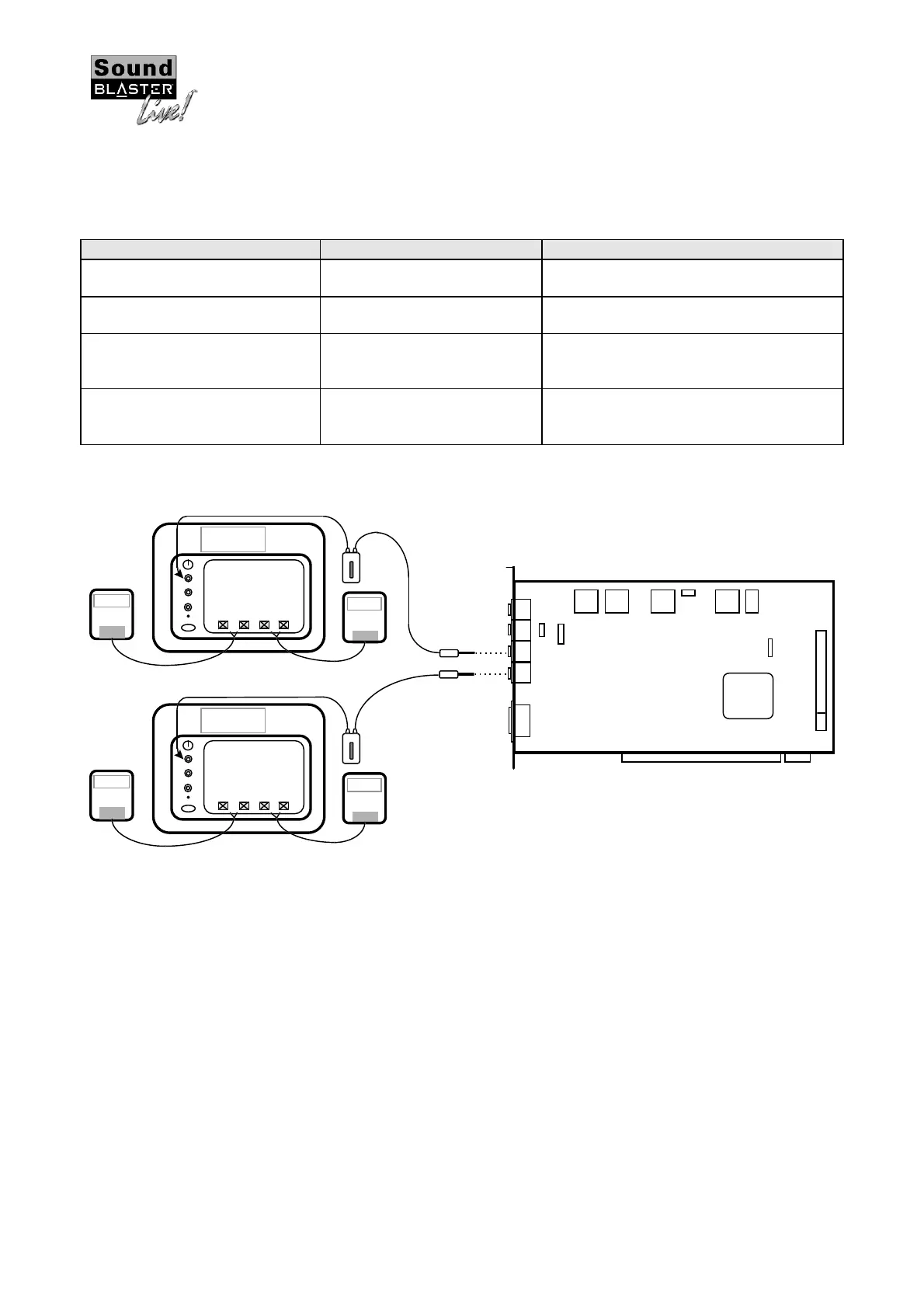

Figure 3 : Adding another pair of PCWorks to your existing PCWorks for cool Environmental Audio
