Creative SoundBLASTER AE-9 - Connecting Power Supply; Power Supply Connector Details & Warnings

PC Power Supply Unit
^

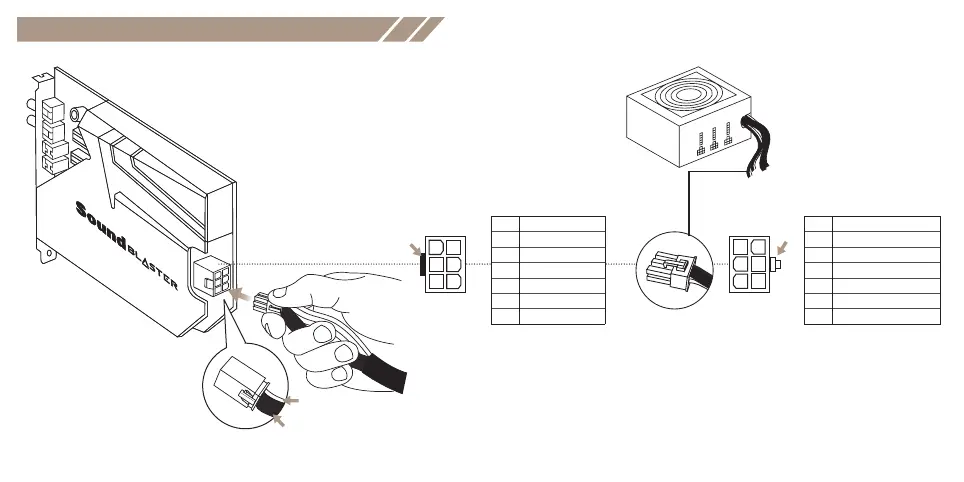

Connecting The Power Supply
Sound Card Connector
Power Supply PCI
Express Connector
Pin Definition
1 +12 VDC
2 +12 VDC
3 +12 VDC
4 Ground (G)
5 Ground (G)
6 Ground (G)
3
2
1
6
5
4
Note:
- Only the use of PCI Express 6-Pin Connector is permitted.
- The PCIe connector must be connected to the sound card in a Pin-to-Pin matching conguration.
- DO NOT forcefully link the connectors if they do not t.
- DO NOT connect ATX 4Pin/P4/EPS Connectors to the Sound Card’s PCI Express Connector.
Doing so will cause damage to the Sound Card and / or PC / Power supply.
6
2
4
3
5
1
Ensure that the 6-pin PCI Express
power supply connector’s latch is
properly tted into the sound card
connector’s catch.
GND +12V
Pin Definition
1 +12 VDC (Yellow)
2 +12 VDC (Yellow)
3 +12 VDC (Yellow)
4 Ground (G) (Black)
5 Ground (G) (Black)
6 Ground (G) (Black)
GND+12V
^
Power supply unit must be 80 PLUS Bronze certied with a minimum of 500 watts power
output and a 2 x 6 PCIe connector.
GND
+12V
LatchCatch
