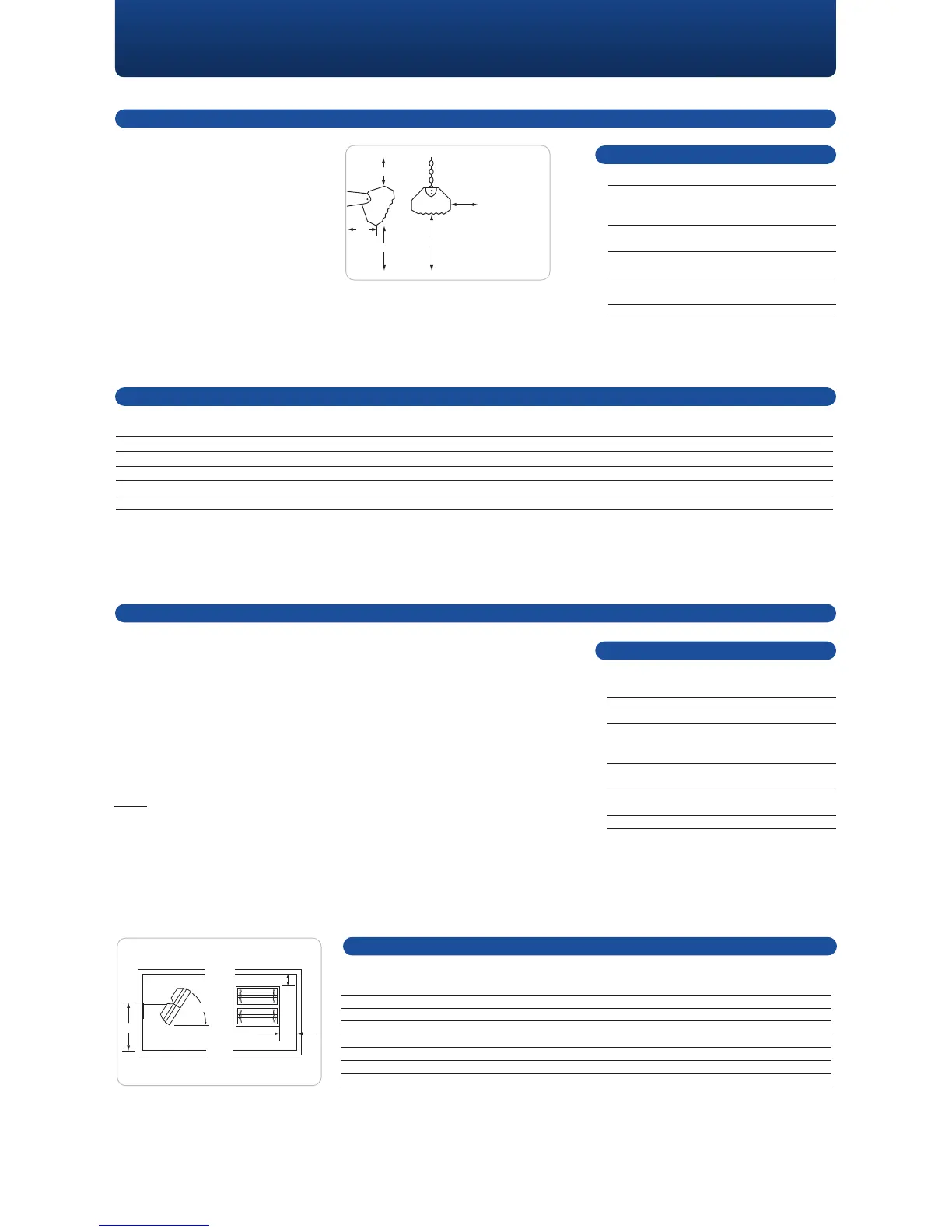

Creda Heating Solution - Sizing Guide: Commercial Space Heaters; Sunslim Radiant Heaters Sizing Guide; Sunquartz Radiant Heaters Sizing Guide

When planning a radiant heating
installation, refer to Table 1 to select the
application and type of environment
you wish to heat. Table 2 shows the
area that can be heated by a single
Sunslim radiant heater in 3kW and
2kW variants.
Note: Heating areas can be overlapped
to achieve the necessary heating index.
0.3
0.1
2.0
2.0
0.5
Sunslim - Minimum
mounting distances
(metres)
Heating index 3kW 2kW
HLW H LW
10 4.0 5.24 5.49 3.3 4.11 4.53
12 3.6 4.88 4.94 3.0 3.84 4.12
14 3.2 4.51 4.39 2.7 3.57 3.70
16 3.5 4.33 4.12 2.5 3.38 3.43
18 2.8 4.14 3.84 - - -
H = mounting height (determined by on-site requirements) L = length of the heated area W = width of the heated area
Applications Heating Index
Offices, canteens, 10-14
waiting rooms, entrance
halls, dressing rooms
Shops, meeting halls, 12-16
recreation rooms, clubs
workshops, garages, 14-18
public buildings
Warehouses, loading bays, 16-20
hangars
Churches 18-20
Use the following procedure when
planning a Sunquartz heating
installation for buildings having a floor
area of up to 500m
2
.
• Make a scaled plan of the area to be
heated, noting possible mounting heights
and positions
• Determine the overall heating requirements
WxYxK = Total kW loading
1000
Key:
W= Length to be heated in metres
Y = Width to be heated in metres
K = Intensity watts per m
2
, determined
from Heating Index Table 1
• Determine the number of Sunquartz
heaters by dividing the kW rating of the
selected units into the total kW loading
from stage 2
Model Spare tube reference Min mounting distances
ABC
Sunquartz 1.5kW 85 821421 1,800 300 300
Sunquartz 2.0kW 85 822171 2,500 300 300
Sunquartz 3.0kW 2 lamp 85 821421 3,000 500 500
Sunquartz 3.0kW 3 lamp 85 821421 3,000 500 500
Sunquartz 4.0kW 85 822171 3,000 500 500
Sunquartz 4.5kW 85 821421 3,000 500 500
Sunquartz 6.0kW 85 822171 4,000 500 500
Sunquartz - Recommended Applications:
Heating Index (K)
130 - 170 Shops, meeting halls,
recreation rooms, clubs
150 - 170 Offices, canteens,
waiting rooms,
entrance halls
150 - 200 Workshops, garages,
public buildings
180 - 220 Warehouses, loading bays,
hangars
220 - 240 Churches
Sizing Guide
Commercial space heaters
Sunslim radiant heaters
Table 1 - Sunslim heating index
Table 2 - Sunslim heated area
Sunquartz radiant heaters
Table 1 - Sunquartz heating index
B
C
A
30" Min.
Table 2 - Sunquartz heated area
45
