Crestron Adagio™ AES Entertainment System

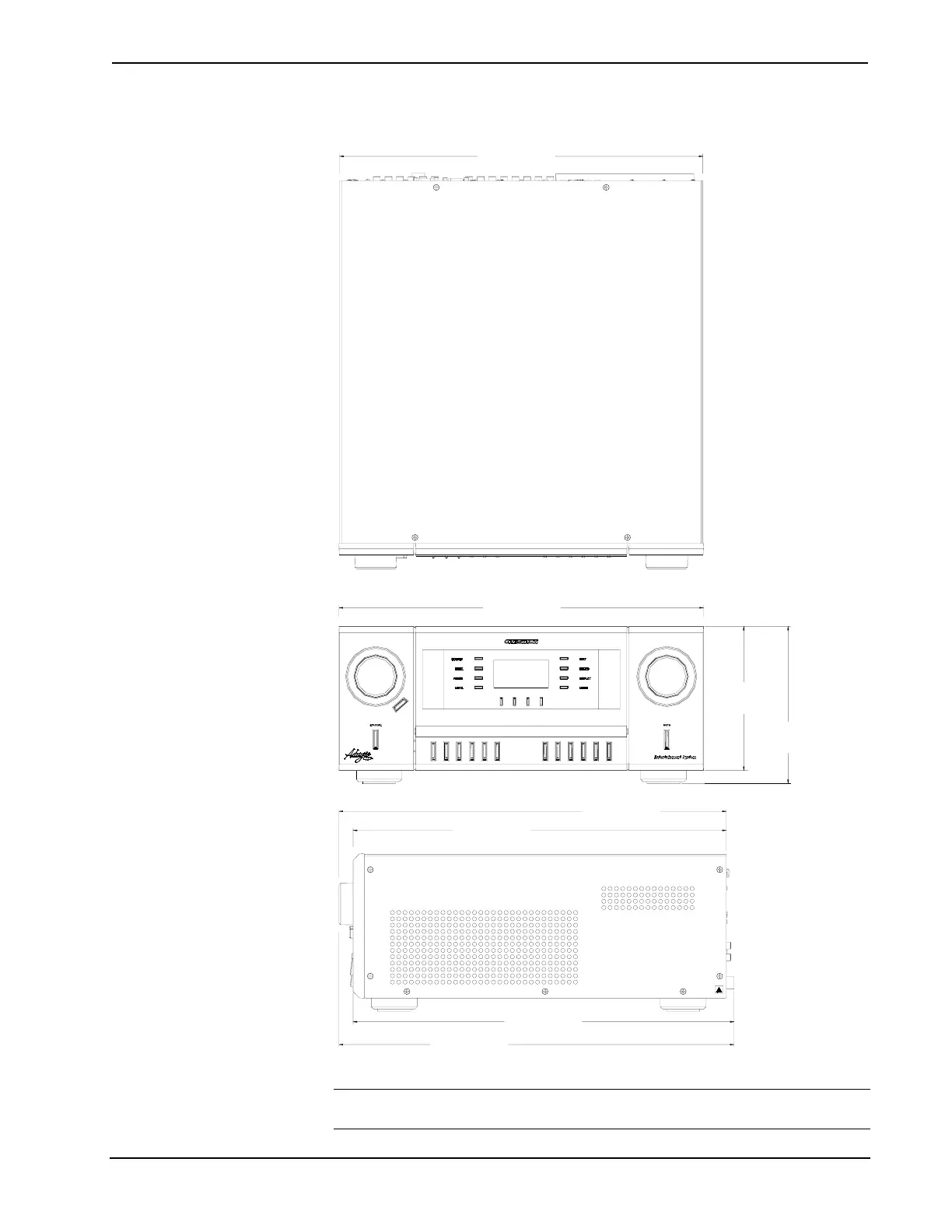

AES Overall Dimensions
18.60 in
(47.24 cm)
17.93 in
(45.55 cm)
17.56 in
(44.60 cm)
18.23 in
(46.30 cm)
7.39 in
(18.78 cm)
6.78 in
(17.22 cm)
17.16 in
(43.58 cm)
17.09 in
(43.41 cm)
NOTE: Cable connections can extend the overall depth of the AES by
approximately two to three inches.
