Keypads Crestron C2N/C2NI-CB Series
Appendix: Template for Flush Mounting Hole

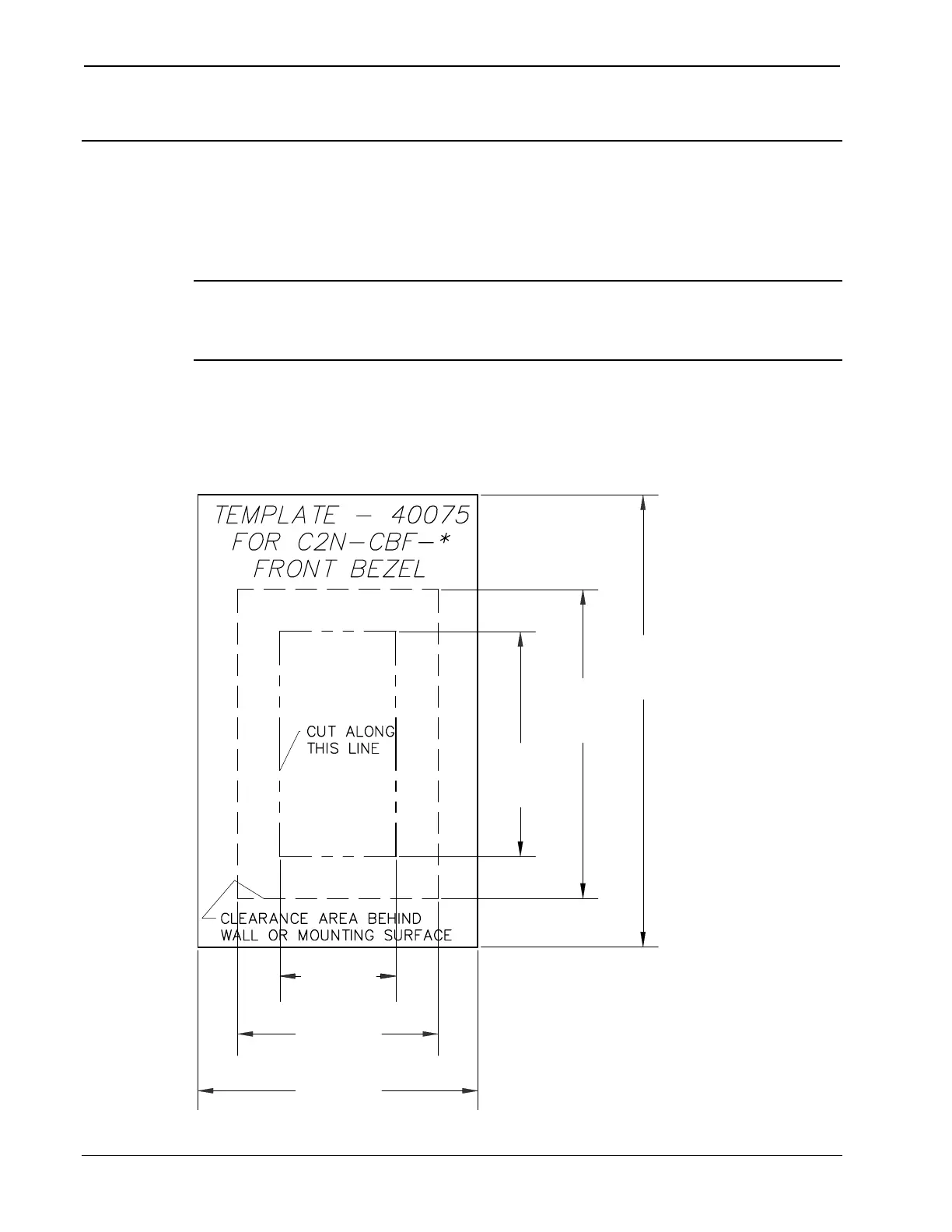

The following figure (not to scale) illustrates the supplied template used
to prepare the hole in the wall or other mounting surface for the flush
mounting style Cameo keypad.
NOTE: Use only the original template, not a photocopy, to prepare the
hole. Photocopies usually alter the size of the image slightly, which
would make the hole the wrong size.
Be careful when cutting the hole, the spring clamp on the keypad does
not have provision for positioning adjustment. Also, ensure that there is a
sufficient clearance area behind the mounting surface as shown on the
template.
2.68 in
(6.80 cm)
(2 11/16 in)
3.68 in
(9.34 cm)
(3 11/16 in)
5.38 in
(13.66 cm)
(5 3/8 in)
1.38 in
(3.50 cm)
(1 3/8 in)
2.38 in
(6.04 cm)
(2 3/8 in)
3.32 in
(8.42 cm)
(8 27/64 in)
40 • Cameo™ Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346A
