Crestron CHV-RSS User Manual

Remote Slab Sensor Crestron CHV-RSS
Refer to the following illustration.
1. Mount the sensor using two coaxial cable standoffs. If the fit is
not snug, use silicon adhesive to secure the sensor in place.
NOTE: Sensor should not come in contact with metal objects.
2. Use a plastic feedthrough bushing and pass the wires through the
outside wall.
3. Form a drip loop in the wire to prevent moisture from entering
the building.

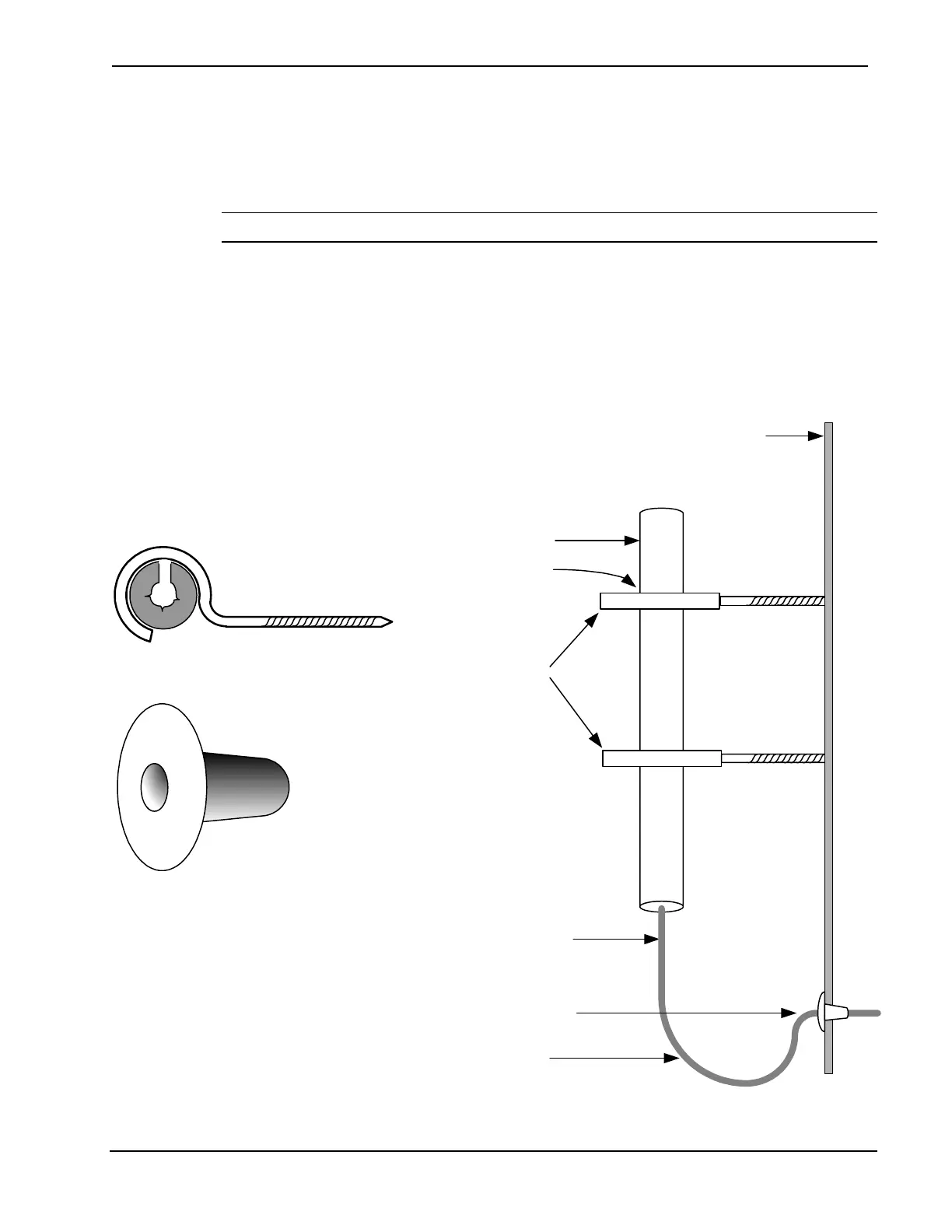

Suggested Mounting Illustration
CHV-RSS
Coaxial
Cable
Standoffs
Feedthrough
Bushing
Twisted Pair
Outside Wall
Drip Loop
Coaxial Cable
Standoff
Feedthrough
Bushing
Silicon Adhesive
8 • Remote Slab Sensor: CHV-RSS Installation Guide – DOC. 6229A

Crestron CHV-RSS Specifications

General

Brand	Crestron
Model	CHV-RSS
Category	Accessories
Language	English
