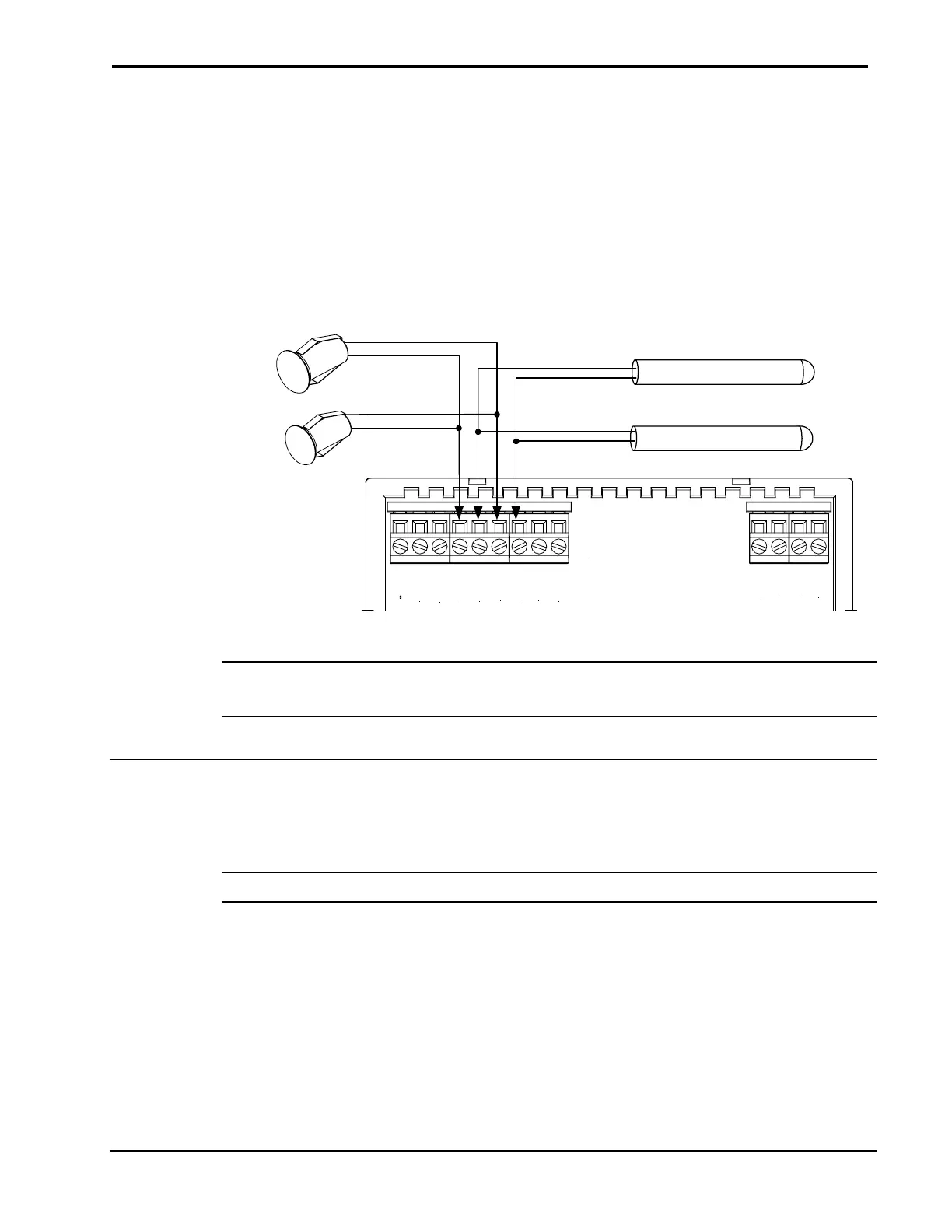

Connection Example 2: Connecting two air temperature sensors
(CHV-RTS) and two floor temperature sensors (CHV-RSS) to the
thermostat.
1. Remote Temperature Sensors 1 and 2 (CHV-RTS) are
connected to RS1 and RSR.
2. Remote Temperature Sensor 3 and 4 (CHV-RSS) are
connected to RS2 and RSR.
TOP
HUM
RHU
RSR RSR
RS1 RS2 24(C)
24(R)
24V
Y
Z
G
TWORK
CHV-RTS
CHV-RTS
CHV-RSS
CHV-RSS
NE
Thermostat Backplate
NOTE: In this example, two CHV-RSS slab sensors are used for
temperature averaging in a large room.
Using the CHV-RSS as an Outdoor Temperature Sensor
The rugged waterproof construction, stainless steel housing, and high
degree of accuracy make this sensor ideal for outdoor use.
NOTE: Mount in a location out of direct sunlight.
Required Materials (not supplied).
•
•
•
Two wood screw coaxial cable standoffs with insulators
One plastic feedthrough bushing
Silicon adhesive
Installation Guide - DOC. 6229A Remote Slab Sensor: CHV-RSS • 7
