CLW-DIM1, DIMS1, & SLVD1(W/A/B)
• The white wire of the -SLVD1 must be capped.
• The white line between -DIMS1 and the -SLVD must be capped on both ends.
• The minimum load requirement is 100W.
• Bulb noise may be present even when the load is off.
• The LED on an attached -SLVD1 slave unit will not function.
• Circuits with small magnetic low-voltage loads may not work.

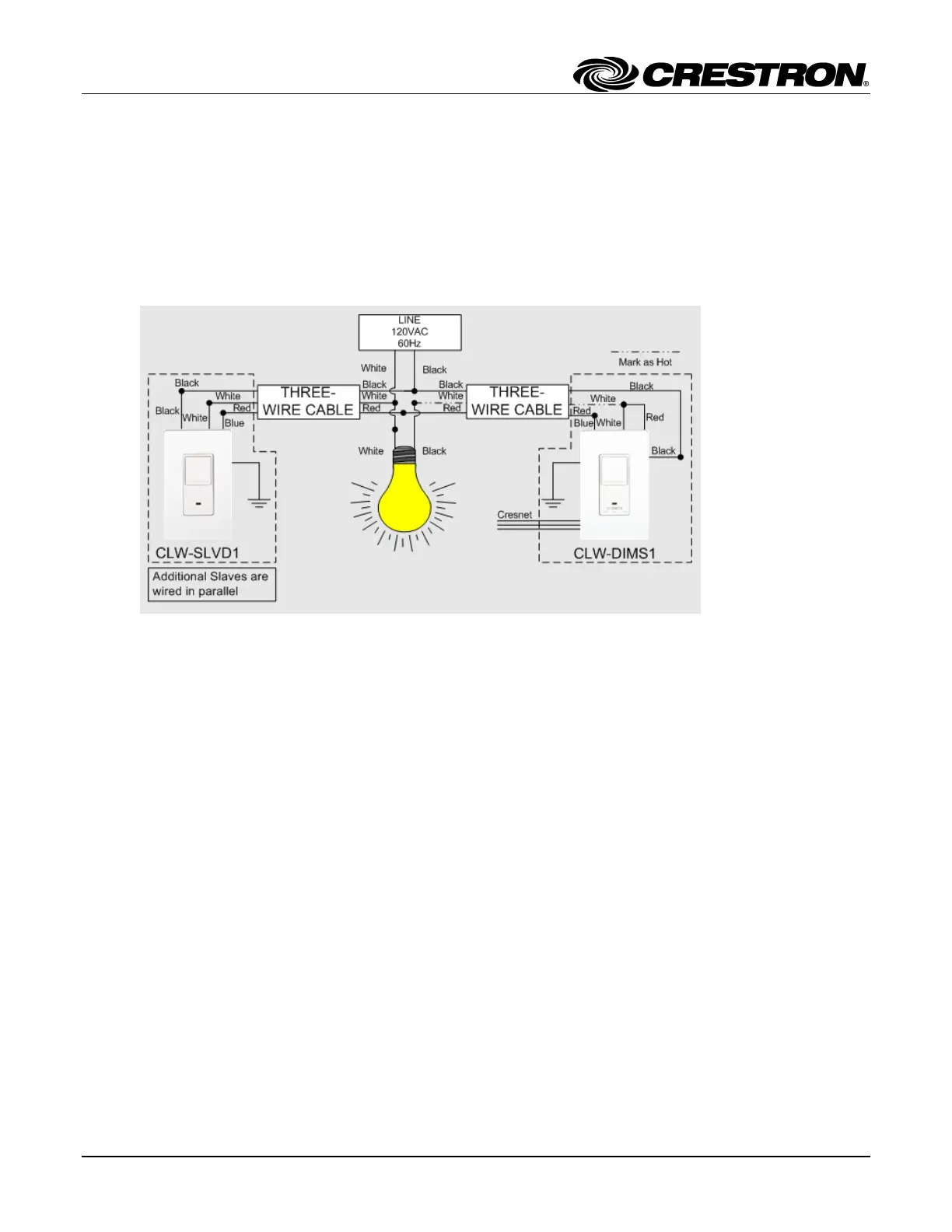

Figure 6: Alternative Wiring of -DIMS1 with -SLVD1 Where Neutral is Not Present (Center-Fed three-way system)
In the above configuration:
• The white wire from the -DIMS1 to the load is coded HOT.
• The minimum load requirement is 100W.
• Bulb noise may be present even when the load is off.
• Circuits with small magnetic low-voltage loads may not work.
10 • Stand Alone Wall Box Dimmer : CLW-DIM1, DIMS1, & SLVD1 Installation Guide – DOC. 6250A
