CLW-DIM1, DIMS1, & SLVD1(W/A/B)
To continue a circuit past a switched light fixture to one or more duplex receptacles, connect the dimmer as shown in the
following diagram.

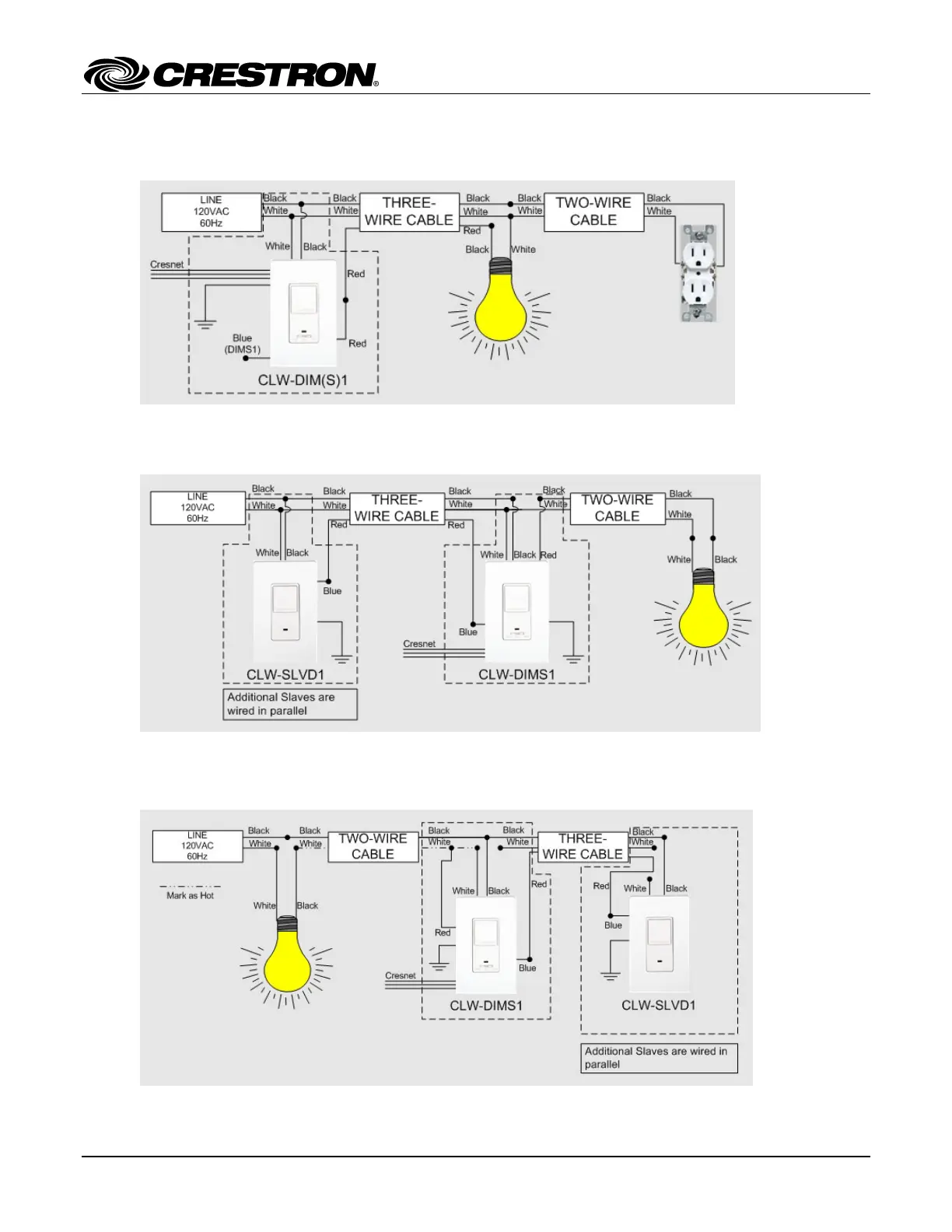

Figure 3: Adding a Duplex Receptacle Past a Switched Light Fixture
Master-Slave Installations
Figure 4: Wiring a -DIMS1 with a -SLVD1
If a neutral is not present in the wallbox, the wiring methods shown in the following diagrams can be used when wiring a
-DIMSX with -SLVD1 devices.
Figure 5: Alternative Wiring of -DIMS1 with -SLVD1s Where Neutral is Not Present (End-Fed three-way system)
In this configuration:
• The white wire from the -DIMS1 to the load is coded HOT.
Installation Guide – DOC. 6250A Stand Alone Wall Box Dimmer: CLW-DIM1, DIMS1, & SLVD1 • 9
