Bridging/Mono Interface Crestron CNXBRMO
2-Series
Control System
Cresnet Distribution Block
CNX-PAD8A
CNAMPX-16x60
LEFT
SPEAKER
RIGHT
SPEAKER
SET TOGGLE
SWITCH TO MONO
NOTE:
IN A BRIDGED CONFIGURATION,
ONLY USE THE CRESTRON
CNAMPX-16X60
(OR CNAMPX-12X60)
SPEAKERS MUST BE CAPABLE OF
HANDLING MORE THAN 200 WATTS

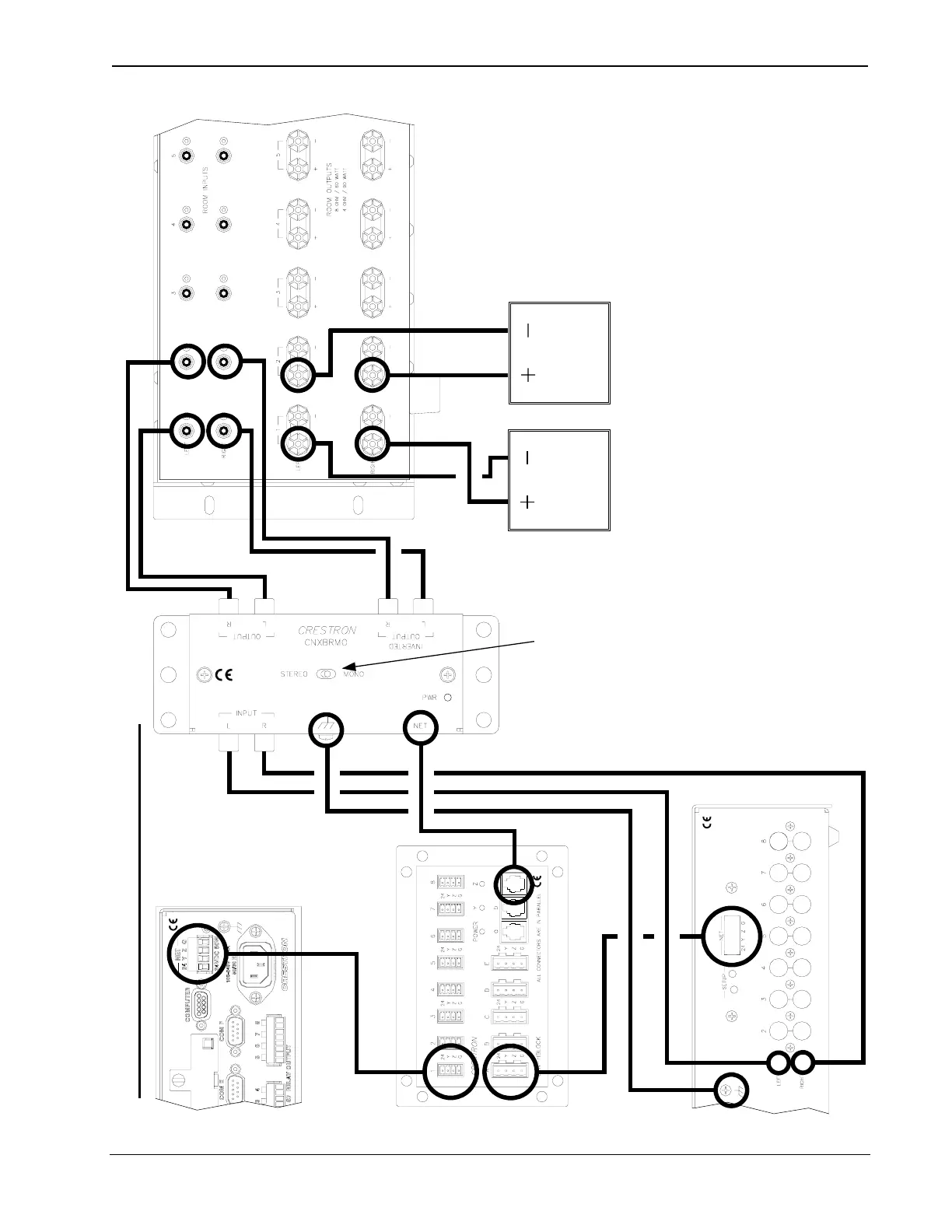

CNXBRMO Used as a Mono Bridge
