Crestron CNXBRMO Bridging/Mono Interface

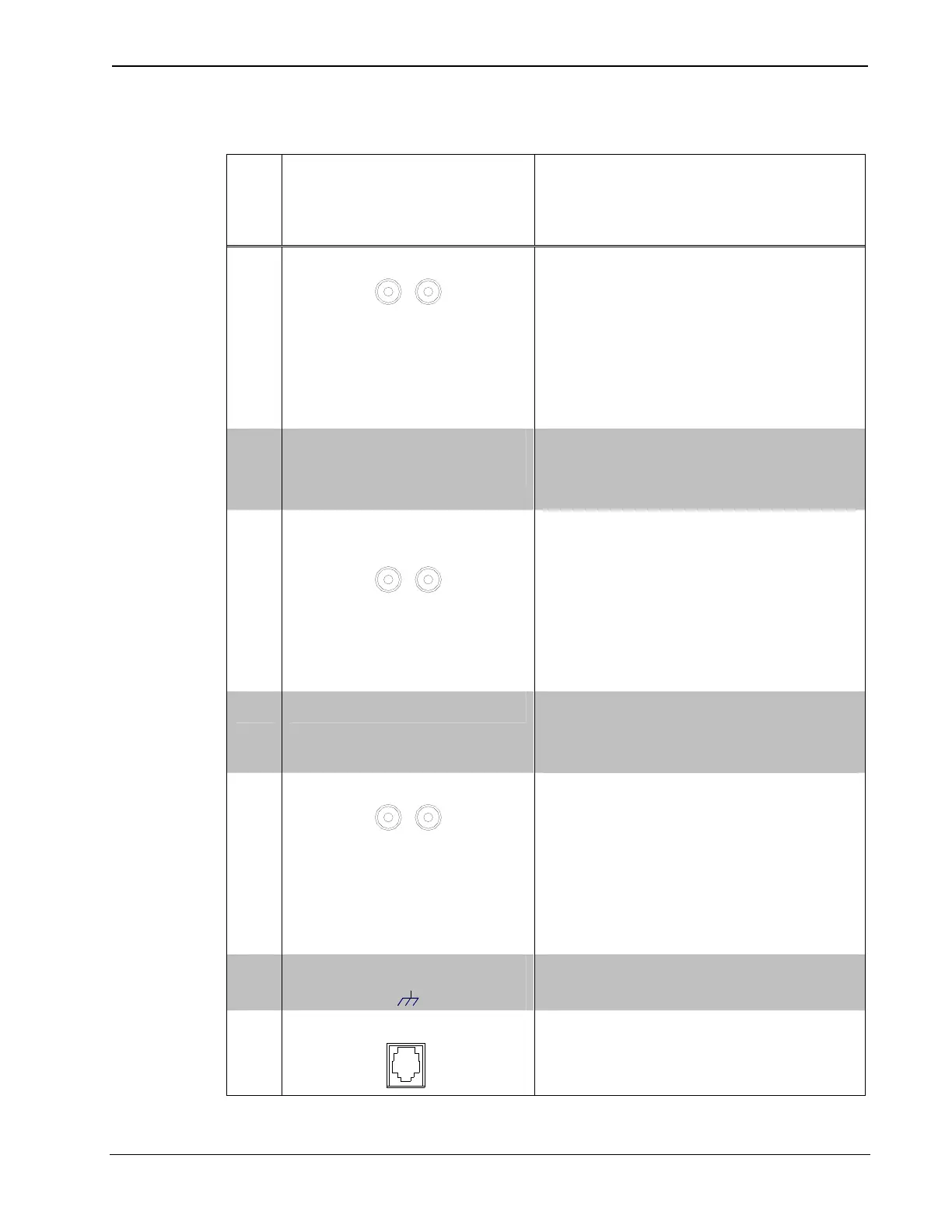

Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
1 OUTPUT (L & R)
Two RCA jacks are used to
connect to a room/zone
amplifier to provide direct left
and right line-level audio.
Output impedance: 600 Ω;
Maximum output level: 2.5
Volts RMS.
2 STEREO/MONO
SWITCH
Two-position toggle switch
used to select between stereo
and mono output.
3 INVERTED OUTPUT
(L & R)
Two RCA jacks are used to
connect to a room/zone
amplifier to provide inverted left
and right line-level audio.
Output impedance: 600 Ω;
Maximum output level: 2.5
Volts RMS.
4 PWR LED Indicates 24 Volts DC power
supplied from Cresnet control
network.
5 INPUT (L & R)
Two RCA jacks are used to
connect to the CNX-PAD8A or
CNX-BIPAD8 to accept left and
right line-level audio.
Input impedance: 10 kΩ;
Maximum input level: 2.5 Volts
RMS.
6 GROUND (1) 6-32 screw, chassis ground
lug.
7 NET
1, 2
(1) 6-pin RJ-11 female;
connects to Cresnet control
network
Operations Guide – DOC. 8158A Bridging/Mono Interface: CNXBRMO • 5
