18 • 3-Series Control Systems: CP3 & CP3N Operations Guide – DOC. 7316C
Uploading and Upgrading
Crestron recommends using the latest programming software and that each device
contains the latest firmware to take advantage of the most recently released features.
However, before attempting to upload or upgrade it is necessary to establish
communication. Once communication has been established, files (for example,
programs or firmware) can be transferred to the control system (or device). Finally,
program checks can be performed (such as changing the device ID or creating an IP
table) to ensure proper functioning.
NOTE: Crestron software and any files on the Web site are for authorized Crestron
dealers and Crestron Service Providers (CSPs) only. New users must register to
obtain access to certain areas of the site (including the FTP site).
While the next section provides an overview for communication, refer to
“Establishing Communications with the Control System” in the Crestron 3-Series
Control Systems Reference Guide (Doc. 7150) for connection details. If
communications cannot be established, refer to “Troubleshooting Communications”
in the same guide.
Establishing Communication
Use Crestron Toolbox for communicating with the CP3; refer to the Crestron
Toolbox help file for details. There are two methods of communication: USB and
TCP/IP.
USB
USB Communication

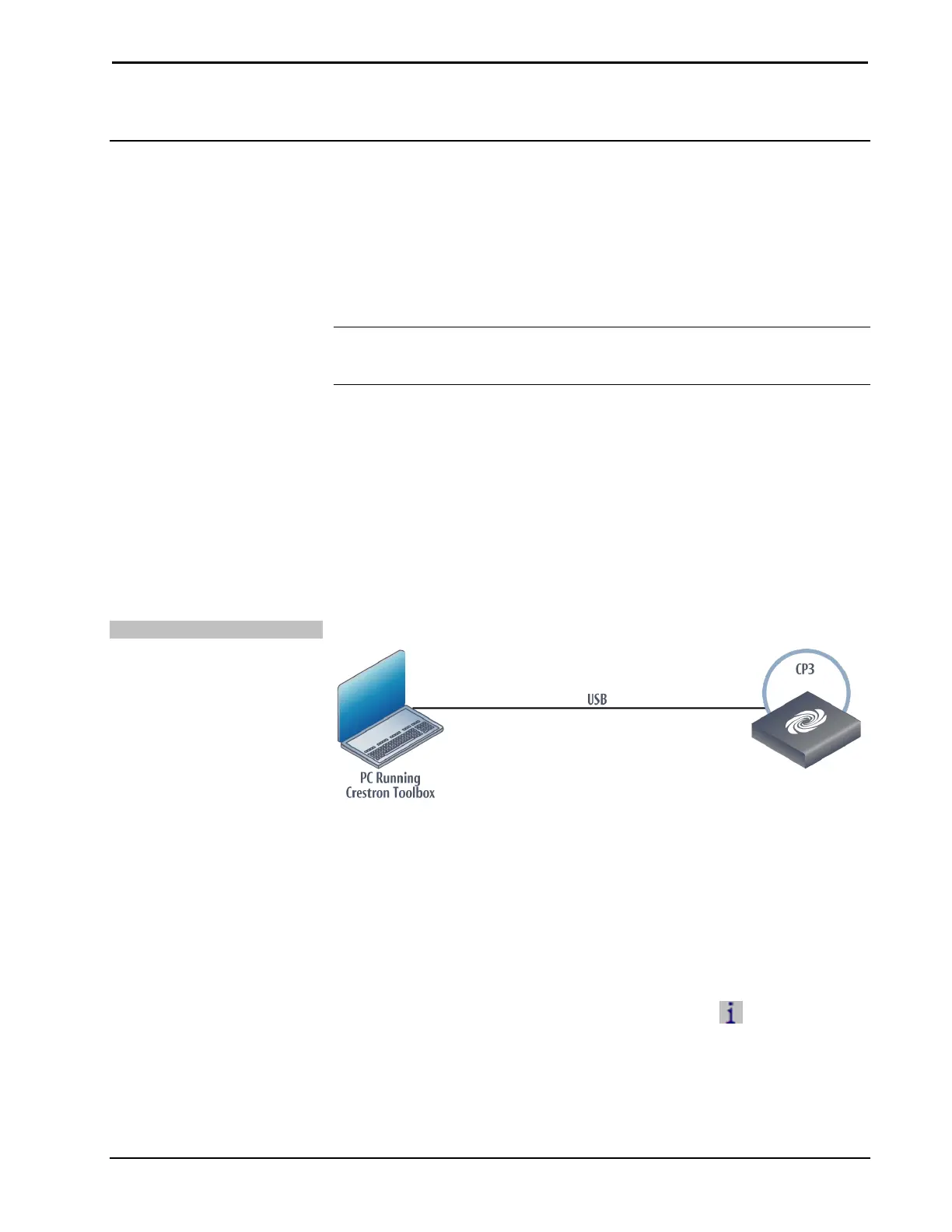

The COMPUTER port on the CP3 connects to the USB port on the PC via the
included Type A to Type B USB cable:
1. Use the Address Book in Crestron Toolbox to create an entry using the
expected communication protocol (USB). When multiple USB devices are
connected, identify the CP3 by entering “CP3” in the Model text box, the
unit’s serial number in the Serial text box or the unit’s hostname in the
Hostname text box. The hostname can be found in the “System Info”
window in the section marked Ethernet however, communications must be
established in order to see this information in the “System Info” window.
2. Display the CP3’s “System Info” window (click the
icon);
communications are confirmed when the device information is displayed.

Crestron CP3 Specifications

General

Motherboard chipset	-
Processor frequency	- GHz
Storage media	Flash
Card reader integrated	Yes
Total storage capacity	4 GB
Compatible memory cards	MMC
Internal memory	0.5 GB
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Serial interface type	RS-232/422/485
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	5 - 45 °C
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	167 mm
Width	439 mm
Height	44 mm
Weight	1420 g
