quickstart guide
DM-TX-401-S/DM-TX-401-S2
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to
change without notice.
DM-TX-401-S/DM-TX-401-S2
QUICKSTART DOC. 7258B (2031811) 11.12
DigitalMedia 8G™ Fiber Transmitter 401
Setting the IP Address
Selecting Inputs
3
For details, refer to the latest version of the DM-TX-401-S/S2
Operations and Installation Guide, Doc. 7257.
Setup of the IP address of the DM-TX-401-S/
DM-TX-401-S2 depends on the way the
transmitter is configured within the DigitalMedia
8G system:
If the transmitter is connected to a receiver/
room controller, the transmitter uses its own
configuration settings. The transmitter ships
with DHCP enabled; however, the default IP
address can be assigned by holding down the
SETUP button while the unit boots up.
The default IP address of the DM-TX-401-S/
DM-TX-401-S2 is 192.168.1.238. The default
IP address overwrites the current setting.
If the transmitter is connected to a DM
switcher, the transmitter is automatically
configured by the switcher.
If manual configuration of the IP address of the
transmitter is desired, use Crestron Toolbox™ to
set the IP address.
By default, automatic switching of inputs is enabled.
Automatic switching causes inputs to switch according to
the following priorities:
Video switching priority: DisplayPort, HDMI, RGB,
composite
Audio switching priority: DisplayPort, HDMI,
1/8” analog, dual RCA analog
The AUTO LED on the front panel of the transmitter lights
to indicate that automatic switching is enabled.
To manually select the desired audio/video input, press
the SELECT button on the front panel of the
transmitter until the corresponding LED lights.
Pressing the SELECT button in succession cycles from
automatic switching (default selection) through the various
available selections in the following order:
DisplayPort audio and video. The DISPLAY PORT
LED lights.
HDMI audio and video. The
HDMI LED lights.
VGA video with 1/8” audio. The
PC LED lights.
Composite video with dual RCA audio. The
VIDEO
LED lights.
None. No input is selected.
After cycling through the above selections, pressing the
SELECT button returns to automatic switching.

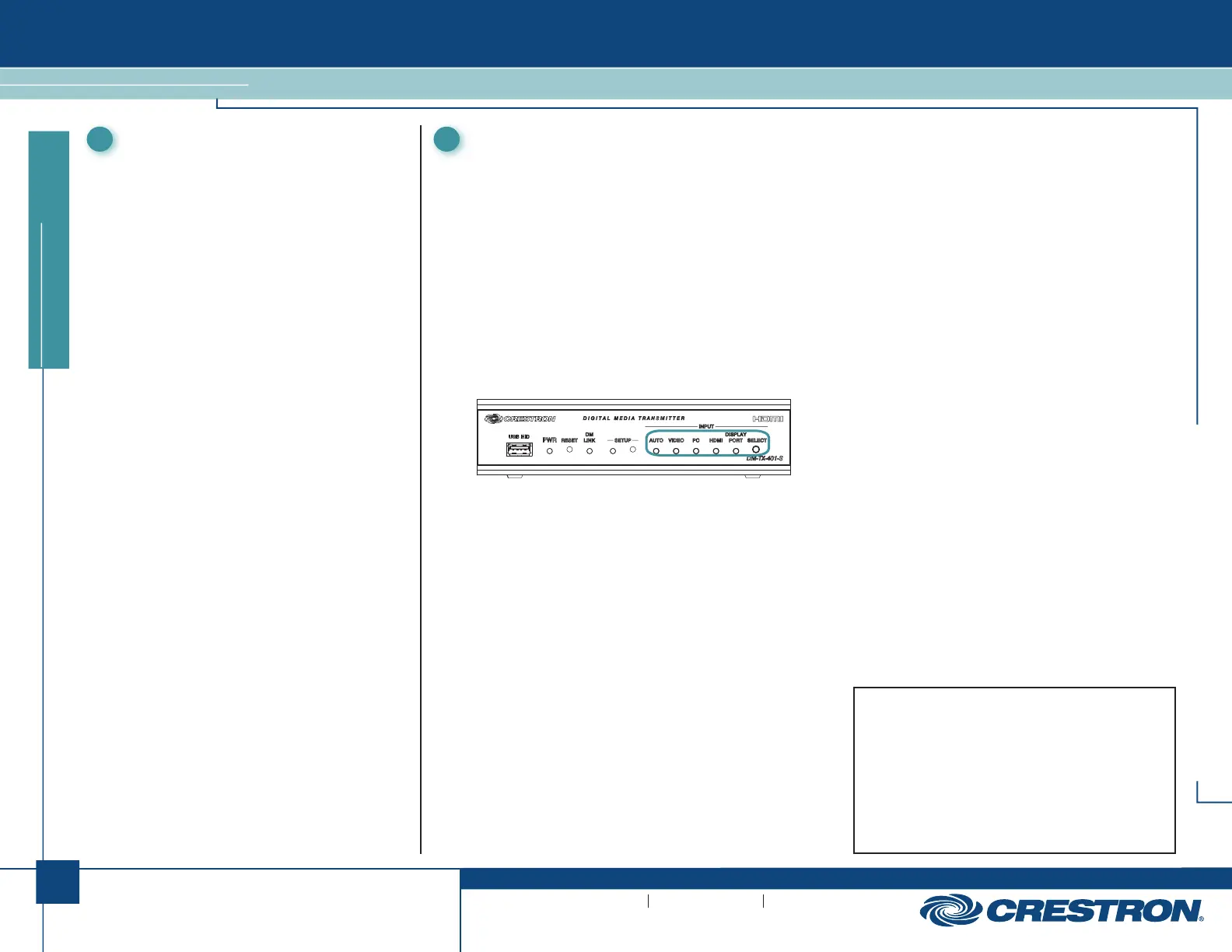

Front Panel (DM-TX-401-S Shown)
The specific patents that cover Crestron products are listed at
patents.crestron.com.
Crestron, the Crestron logo, Crestron Toolbox, DigitalMedia 8G, DM,
and DM 8G are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. HDMI and
the HDMI logo are either trademarks or registered trademarks of HDMI
Licensing LLC in the United States and/or other countries. Other
trademarks, registered trademarks, and trade names may be used in
this document to refer to either the entities claiming the marks and
names or their products. Crestron disclaims any proprietary interest in
the marks and names of others.
©2012 Crestron Electronics, Inc.
2
4
