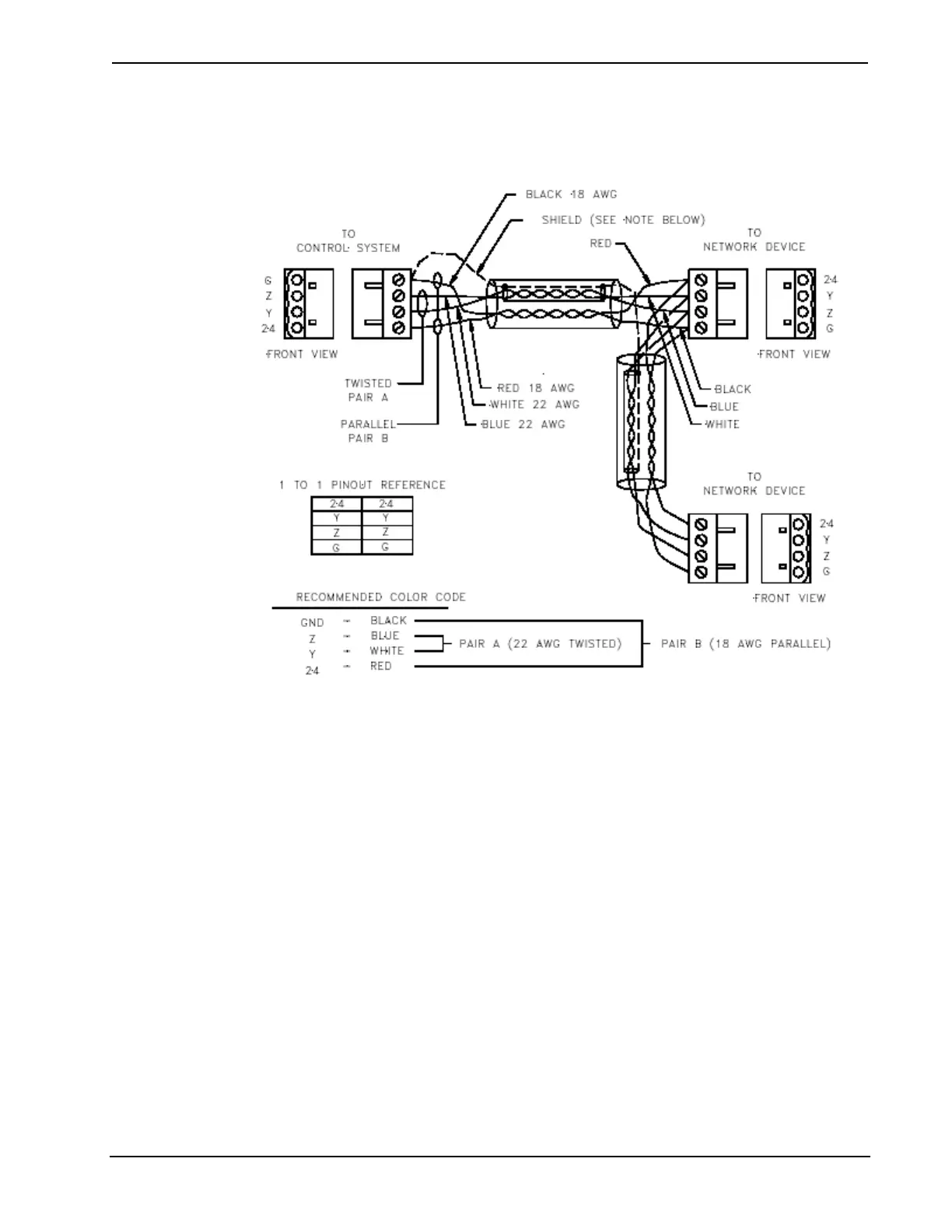

Cresnet - Network Interconnect Specifications
CAUTION: POSSIBLE EQUIPMENT DAMAGE IF MISWIRED.
Do not power up system until all wiring is verified. Care should be taken to
ensure data (Y, Z) and power (24, G) connections are not crossed.
Ground shield at control system end only.
Model CNTBLOCK network terminal block is recommended for testing
purposes and convenience of wiring.
