Crestron TSW-1050 Configuration Guide

5”/7”10.1” Touch Screens Crestron TSW-550/750/1050
10 • 5”/7”/10.1” Touch Screens: TSW-550/750/1050 Configuration Guide – DOC. 7366C
Test Patterns
On the “Diagnostics” menu, touch Test Patterns to display the “Diagnostics - Test
Patterns” screen.

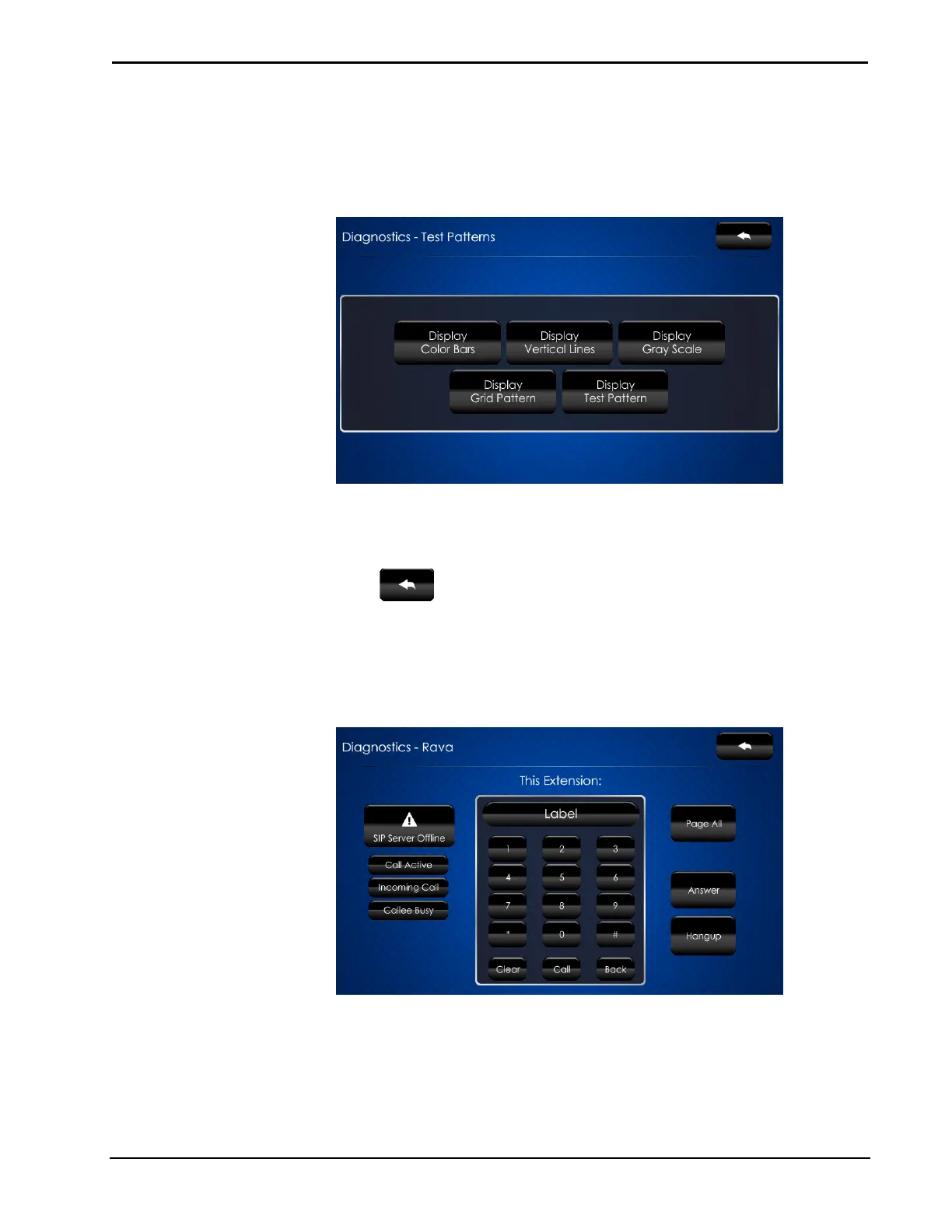

“Diagnostics - Test Patterns” Screen
The “Diagnostics - Test Patterns” screen contains buttons for selecting the different
available test patterns: Display Color Bars, Display Vertical Lines, Display Gray
Scale, Display Grid Pattern and Display Test Pattern.
Touch
to return to the “Diagnostics” menu.
Rava Test
On the “Diagnostics” menu, touch Rava Test to display the “Diagnostics – Rava”
screen.
“Diagnostics - Rava” Screen
The “Diagnostics - Rava” screen provides controls for testing the use of Crestron’s
Rava™ SIP Intercom with the TSW-550/750/1050. They can be used to test projects
and settings. If the intercom works but the project does not, there is an issue with the
project; if the intercom does not work, there is an issue with the settings.
