2.2. Connect the wiring harness to the open connector located inside the front dash on the drivers’ side of the dash.
(Fig. 2.2.1)
2.3. Install wiring harness clips on the steering shaft. (Fig 2.2.2)
3. Install the Floorboard Extension
3.1. Use your hand to pull up on the spring-loaded T-Lever in the center of the permanent floorboard. Turn the lever
clockwise until it locks open. (Fig. 3.1.1)
3.2. Gently pull or push the vehicle chassis front end forward until it stops. Then lift and turn the T-Lever
counterclockwise and lock the chassis into position. You might need to slightly adjust the two chassis once the T-
Lever is lowered for it to “click” into lock. Check that the lever is locked. (Fig 3.2.1)

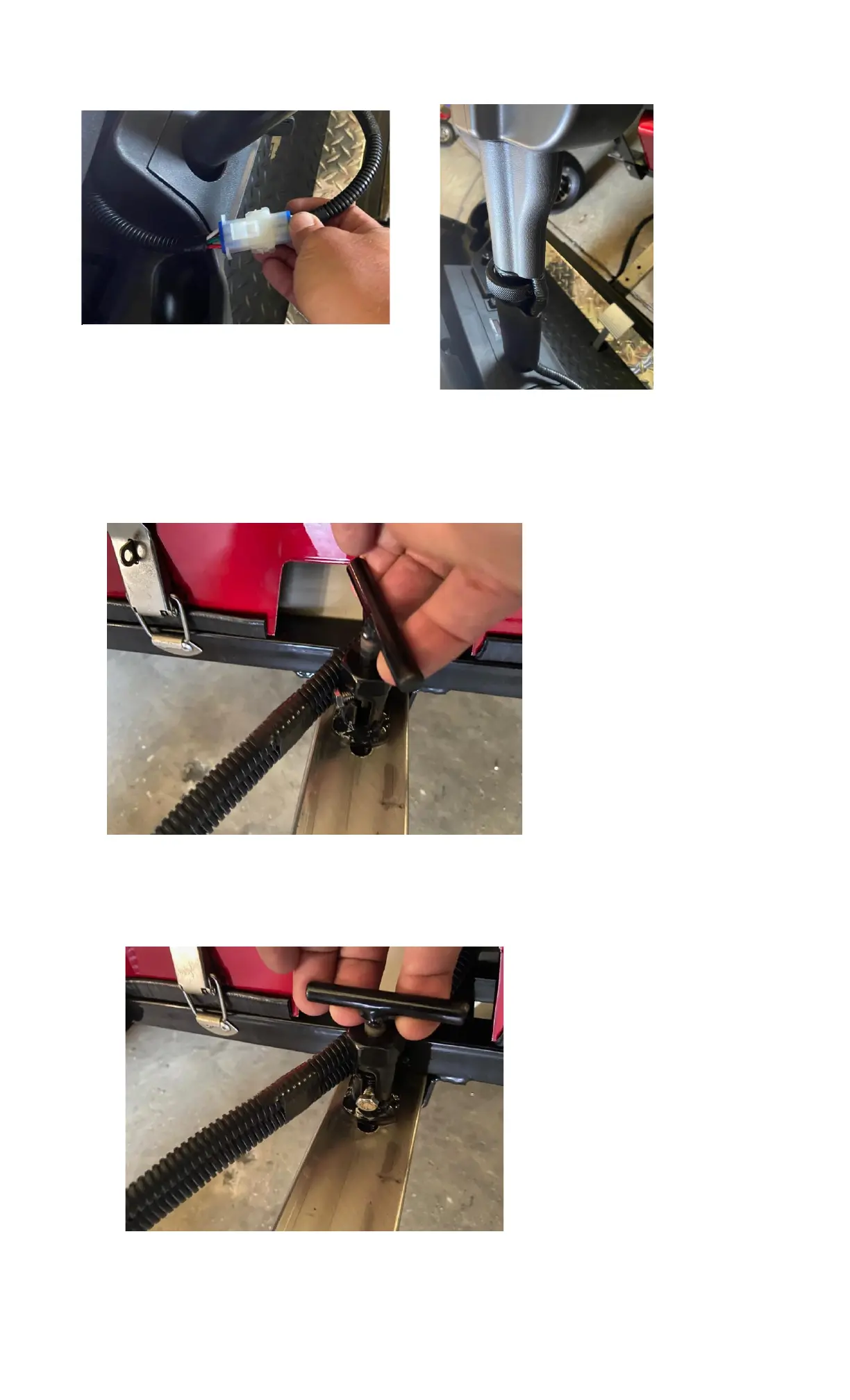

Figure 2.2.1 Grasshopper Wiring Harness Connector
Figure 2.2.2 Grasshopper
Wiring Harness Clips
Figure 3.1.1 Grasshopper T-Lever Released
Figure 3.2.2 Grassshopper T-Lever Locked
