Cricket Grasshopper - Secure Floorboard Extension and Knobs; Install Front Seat Back Rest; Install Rear Passenger Step Plate

9
3.3. Remove the floorboard knobs from both sides of the chassis, located just under the front seat on the frame.
3.4. Slide the floorboard extension into position by angling it in toward the front of the CRICKET. Check that the Key is
in the “OFF” position and you may need to depress the throttle pedal slightly to get the floorboard to clear.
3.5. Slide the floorboard extension
underneath the stainless-steel flash
plate of the permanent floorboard
assembly. (Fig 3.5.1)
3.6. Make sure both sides of the
floorboard extension are lined up
and securely fitted underneath the
front stainless-steel flash plate and
into the black plastic tabs on the
front body.
3.7. Install but do not tighten one of the
floorboard knobs located on the
chassis under the front seat, then
install the second knob. You may
need to slightly move the floorboard
in order to line up with the threaded
holes for the knobs. Once both knobs
are installed tighten them down to
secure the floorboard in place.
4. Install Front Seat Back Rest
4.1. Gently guide both seat back support arms into the
metal slots located behind the front seat. Install the
small knobs into the threaded inserts on the rear of
the metal slots to secure the seat back.
5. Install Rear Passenger Step Plate
5.1. Loosen both locking nuts located below the back
seat and rear carrier rack. (Fig. 5.1.1)
5.2. Insert both step plate bars into the rear chassis
frame tubing and gently guide both bars into the
tubes. Check that the step plate bars are all the way in and that the knobs are tightened securely. (Fig 5.2.1 and
5.2.2)

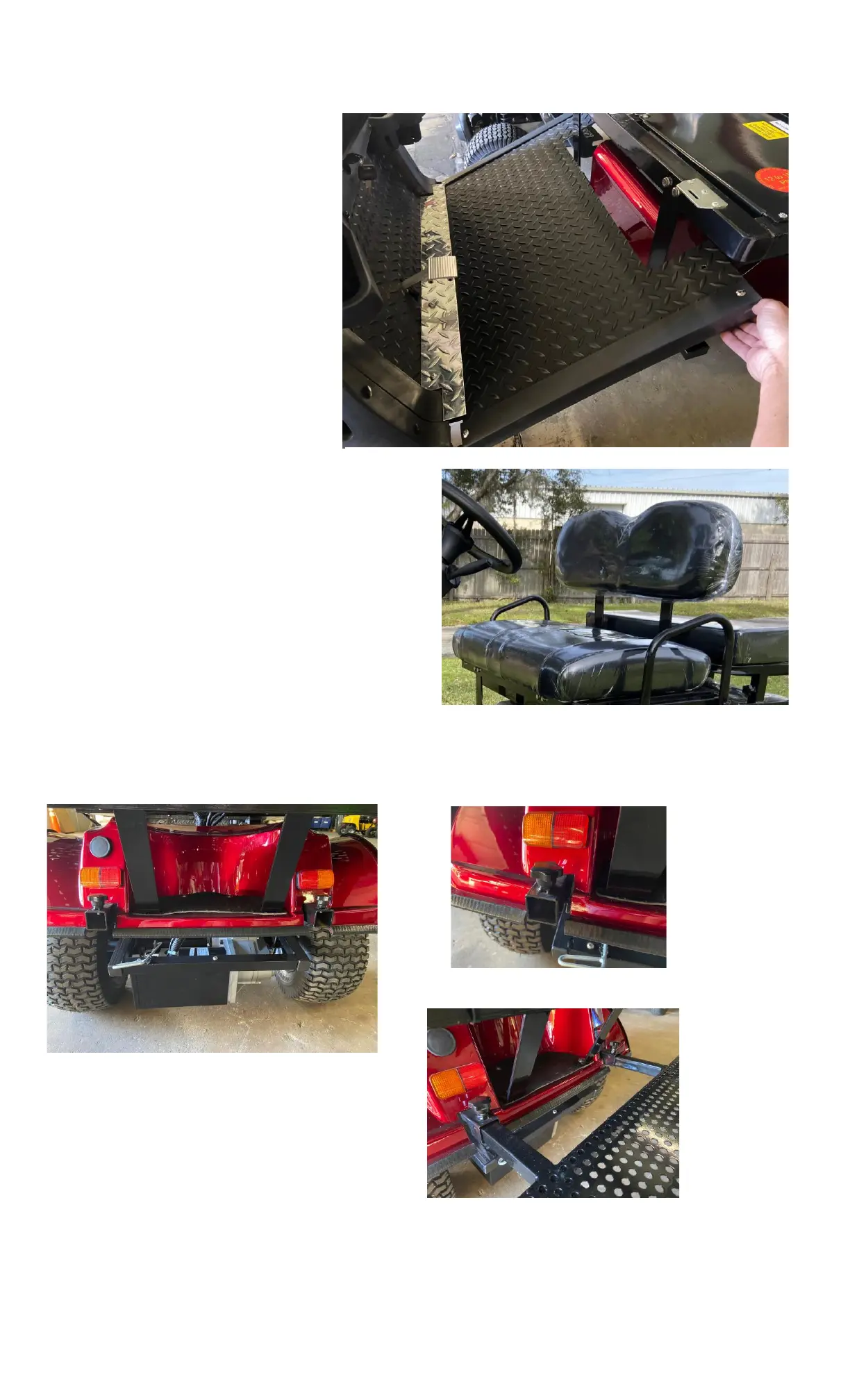

Figure 3.5.1 Grasshopper Floorboard Installation
Figure 5.2.1
Figure 5.1.1
Figure 5.2.2
Figure 4.1.1
