Criterion CFDR286M4S - Page 7

07

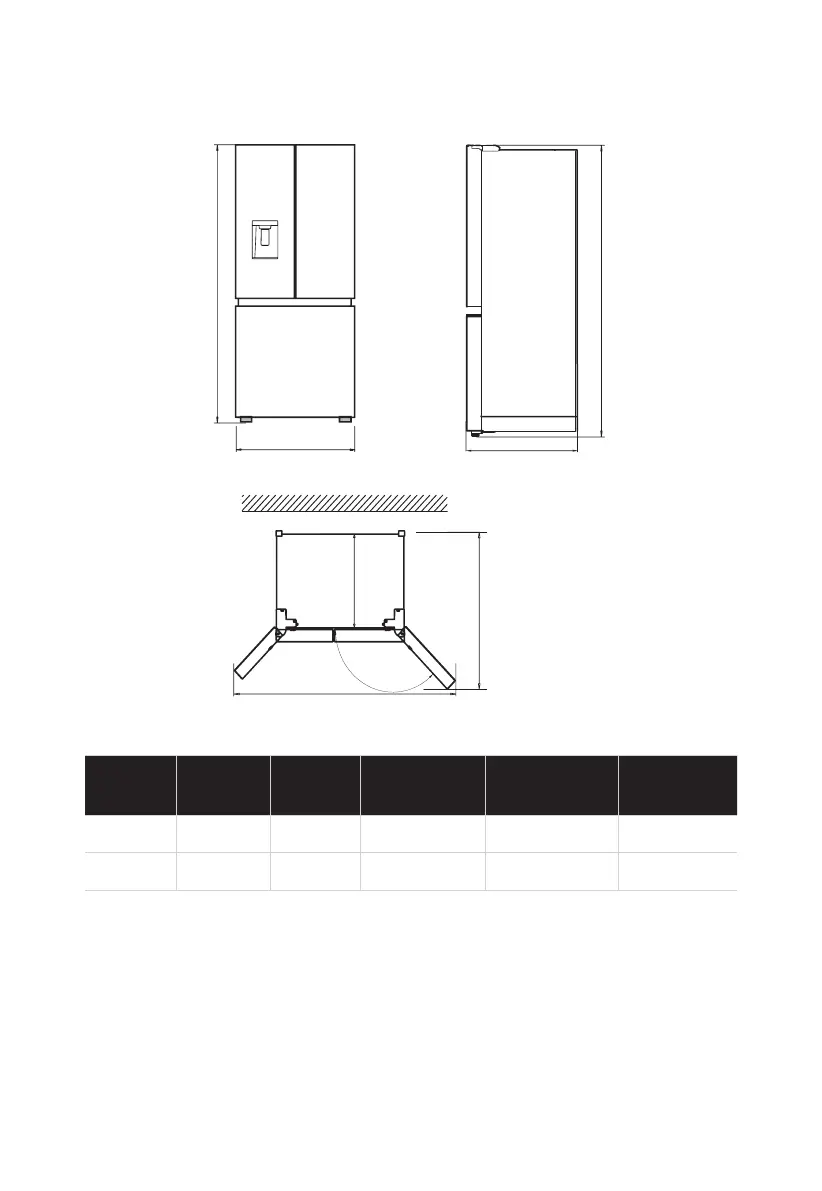

Space requirement diagram (when the door is open and when the door is closed).
C
E
B
135 °
B
A
C1
D
Width
Overall
Height
Depth
Depth
Only Cabinet
Depth
doors open
135
o
Width
doors open
135
o
A B C C1 D E
910 1775 862 745 1127 1596
Notice: All dimensions in mm
