2.2 System dimension & weight
Table 2-1:System equipment size, weight table
Device Model
W(cm)
L(cm)
H(cm)
Weight(kg)
HDI-600**
140
118
105
780
HDI-920**
170
130
110
880
HDI-1600**
232
115
118
1480
Remark：System equipment, size, weight will be vary depends on required configurations
2.3Power requirement
Table 2-2：Power requirements of the system
Device Model
Rated power (kW)
Power supply requirements
HDI-600**
5.1
200~240V 23A
HDI-920**
5.6
200~240V 25A
HDI-1600**
6.0
200~240V 27A
2.4Power connection & wiring
Preparation of the wires, sockets, open empty, etc. (if necessary, an UPS is required too)
Instruction：Required voltage must be stable. Grounding must be good (with galvanized metal diameter of
not less than 10mm, buried 1.5m below).
Equipment must be having ground resistance ≤ 0.5Ω.

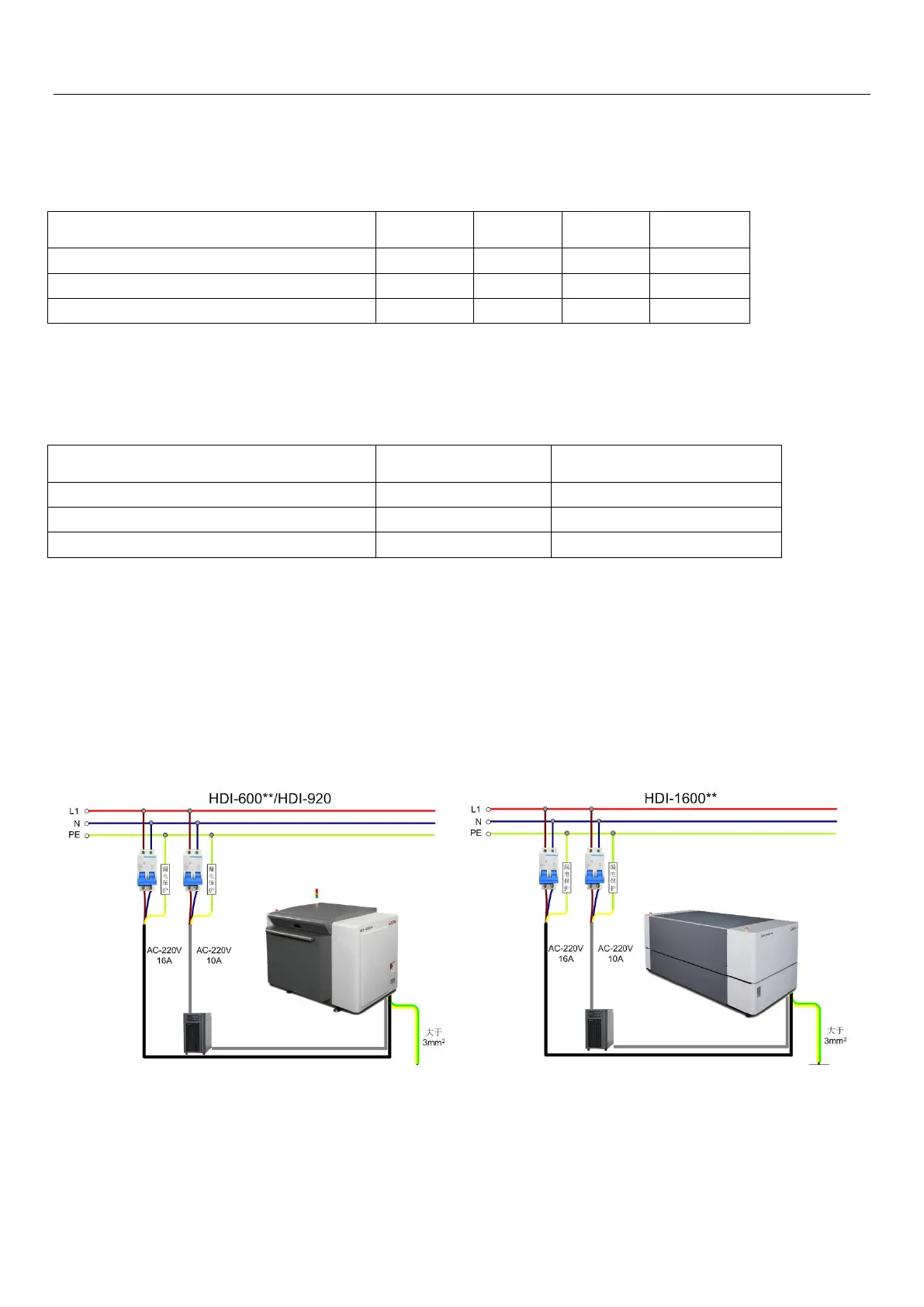

Picture 2-4:power wiring diagram
