44
43
11105
M3x6
11106
M3x8
11105
11106
14102
40
BAG/Q

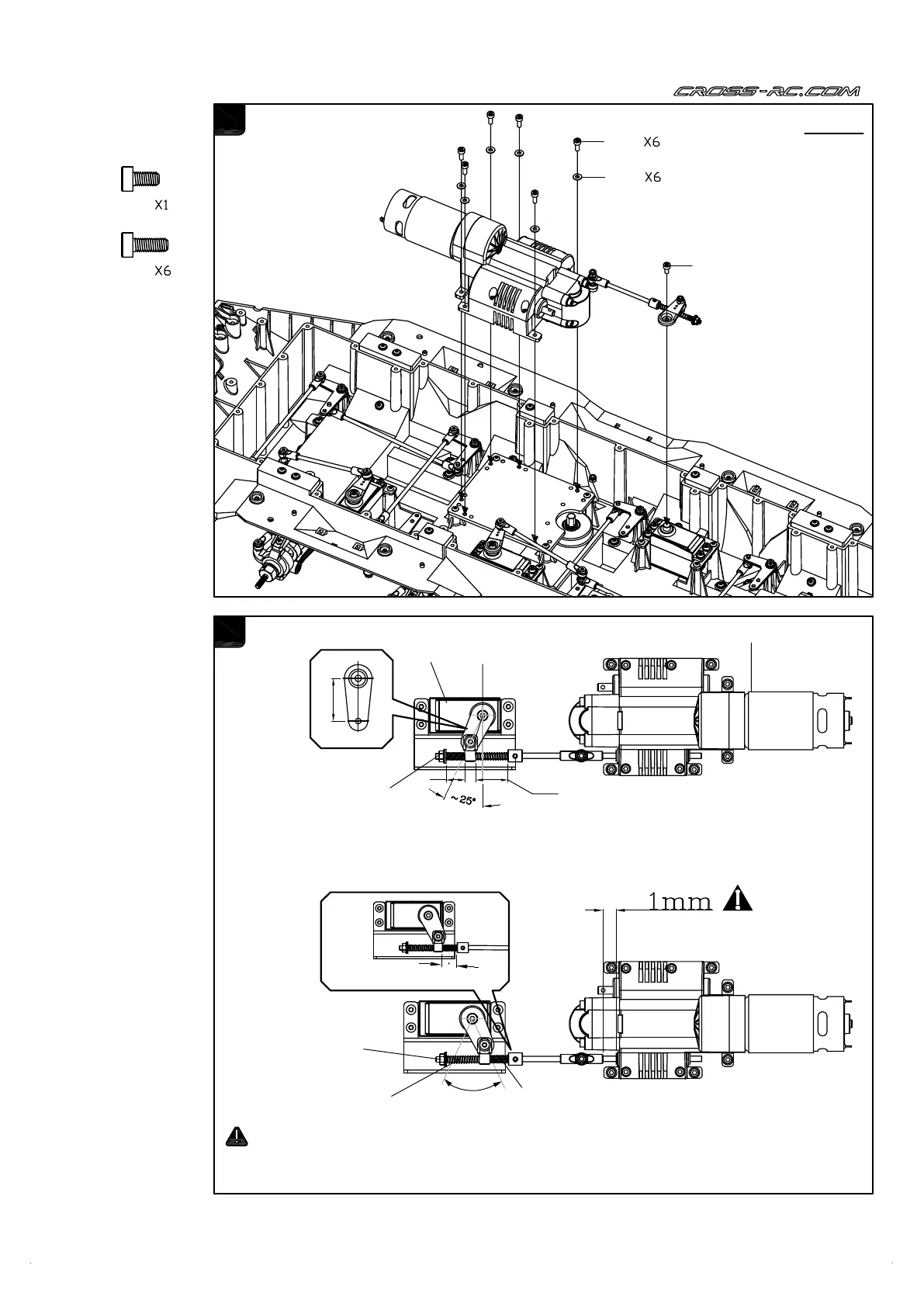

Servo arm installation
1. 1 Check to remote control's instruction for get servo using and setting method.
1.2 Make sure the servo is in neutral position before installation, as shown in the drawing to keep
the transmission rod in its state (low gear), the arm is mounted on the servo, and the servo
doesn't put pressure on the shift rod after installation completed
2. Adjusting servo stroke and result to spring decrement in the 2-3mm after into high speed gear.
Make sure the servo is operated in a suitable stroke, it's may result in damage to the servo or
transmission gearbox parts if the servo or shift rod continues to exert a large force.
WARNING
Servo stroke adjustment
Amount of compression 2~3 mm
Spring #1
Spring #2
Servo stroke
Nut
Transmission gear box
Servo arm
Transmission rod
Servo
22mm
a b
a<b
