OPERATION

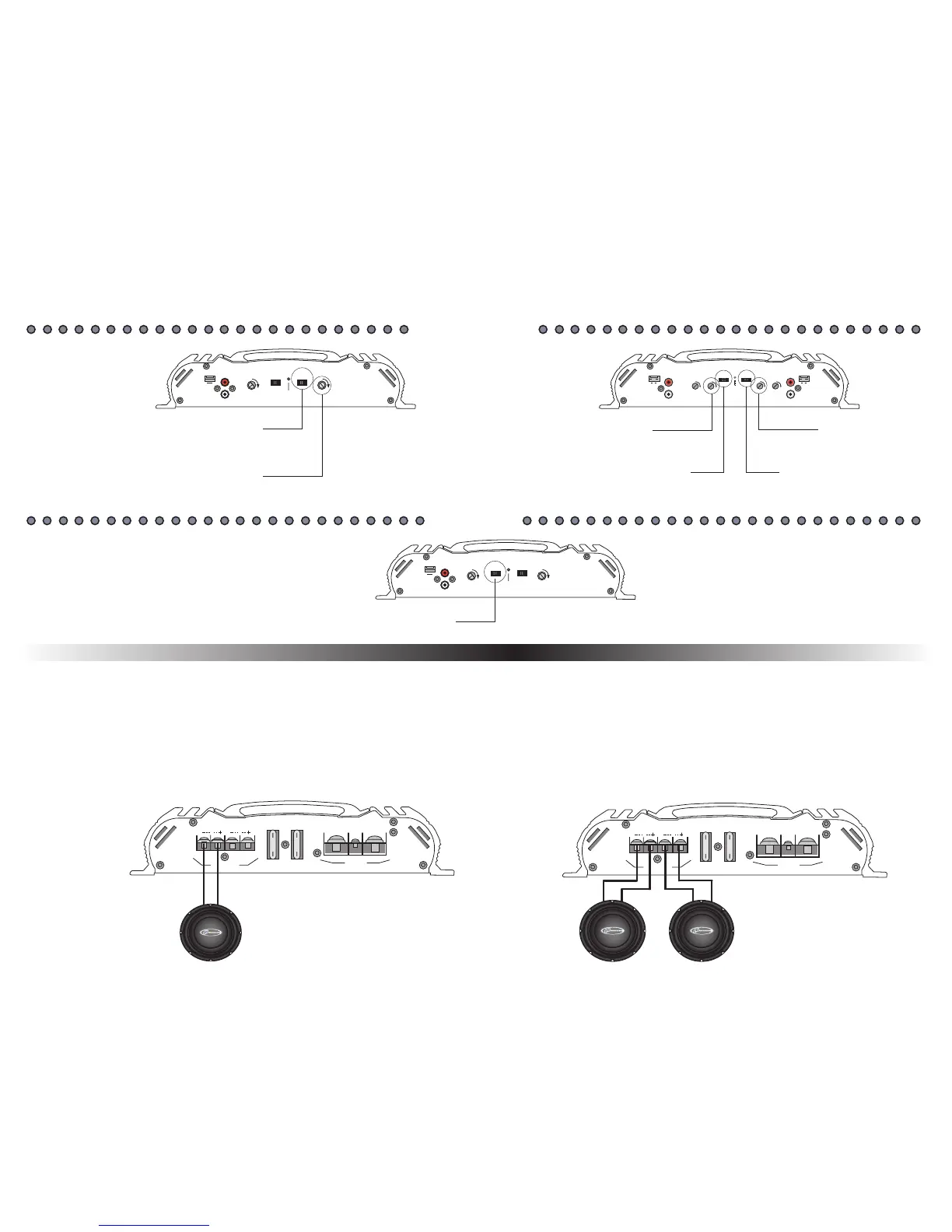

The Crossfire TEK400.1 is a mono-block amplifier. Unlike other Crossfire TEK amplifiers, this amplifier operates as a single channel, therefore the amplifier cannot be
bridged. Do not be fooled by the two sets of speaker outputs. Two outputs are provided strictly for convenience and are paralleled internally on the circuit board of
the amplifier. This means that if both outputs are used with one driver each, the amplifier sees the same load as if the same two drivers are connected to only one
output terminal. See diagram below.
LOAD
The TEK400.1 will reach its potential output into a 2ohm load. However, the TEK400.1 requires a minimum impedance of 2 ohms to operate trouble free. Any
impedance lower than 2 ohms can send the amplifier into current protection and possibly damage the circuitry. Please use the chart on page 8 for furmulas to achieve
a 2ohm load.
TEK400.1 MONOBLOCK
TEK400.1 MONOBLOCK
1
2
FUSE
FUSE
+12V REM GND
POWER
SPEAKER
1
2
FUSEFUSE
+12V REM GND
POWER
SPEAKER
-
+
-
+
-
+
Single
speaker
operation
Two
speaker
operation
