CrossLand CC1 - Software Error Codes; Electrical Schematic

User ManualUser Manual
3 Way
Valve
Water
Pump
Coffee
Boiler
Steam
Boiler
Steam
Valve
Switch
Main
Power
Switch
Line
Neutral
Ground

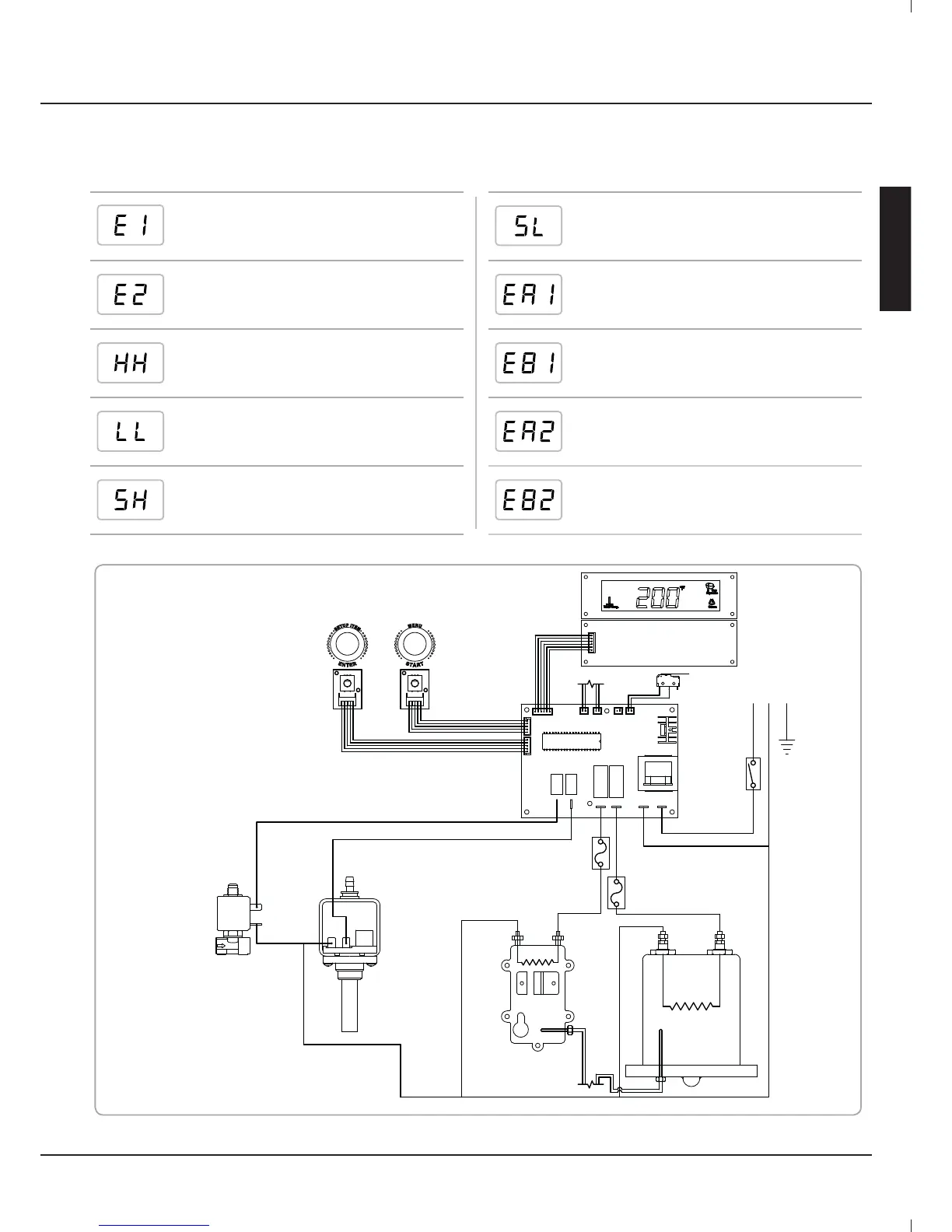

Electrical Schematic
Display Error Description
Coffee boiler heating error:
Water temperature does not reach
set temp. within 1 hr.
Steam boiler heating error:
Steam boiler temperature does
not reach set temp. within 3 min.
The temperature of coffee boiler is
more than 230°F or temperature
sensor short.
The temperature of coffee boiler
is under 149°F or temperature
sensor open.
The temperature of steam boiler
is over 392°F or temperature
sensor short.
Display Error Description
The temperature of steam boiler
is under 32°F or temperature
sensor open.
Menu button circuit A open
Menu button circuit B open..
Setup button circuit A open.
Setup button circuit B open.
Software Error Codes
CC1
