Crossray TCS4FL - Parts Diagram; Parts List

7
Model: TCS4FL

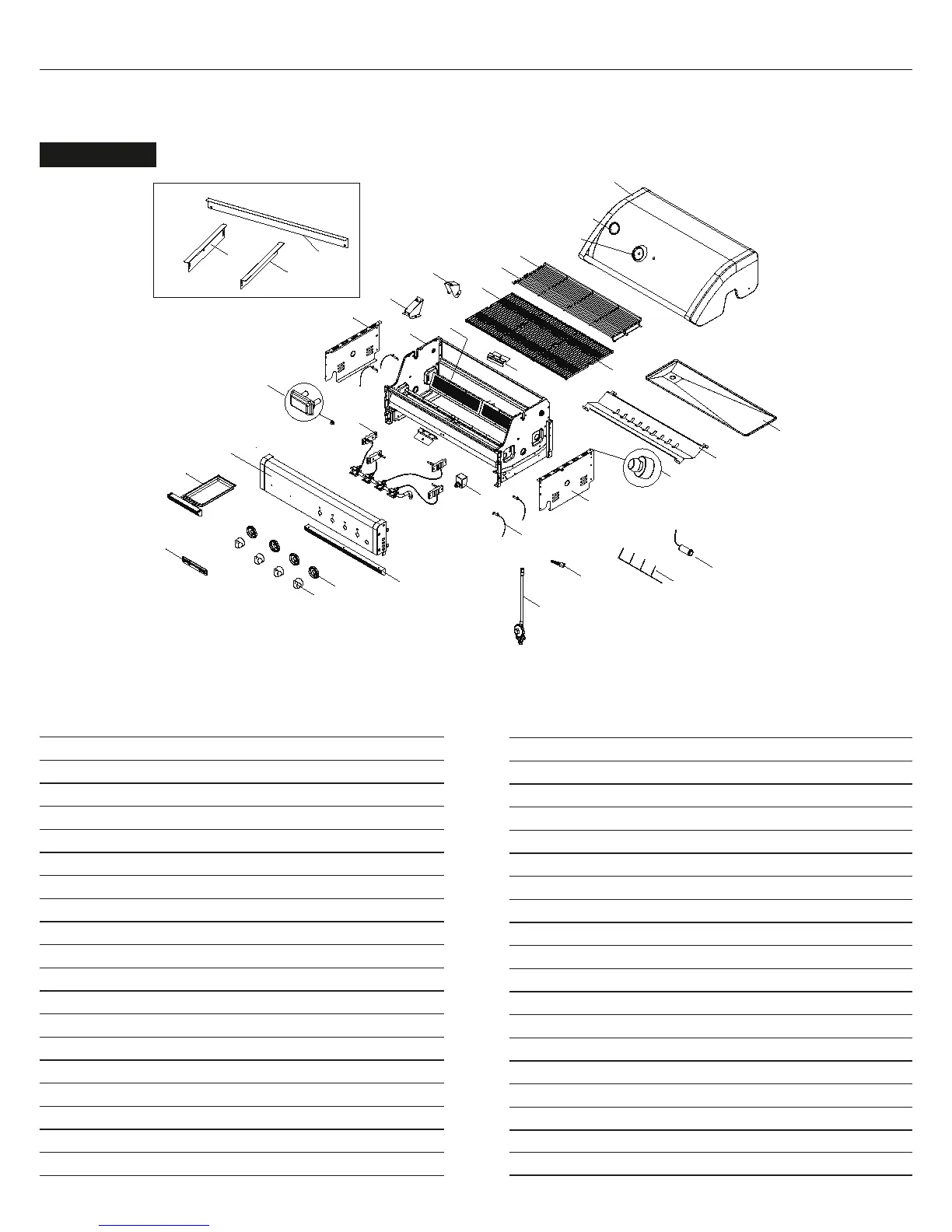

PARTS DIAGRAM
PARTS LIST
KEY DESCRIPTION PART# QTY
1 Hood Assembly P0014761KA 1
2 Temperature Gauge P00601601C 1
3 Temperature Gauge Seat P00614047E 1
4 Warming Rack W295 P01507035H 1
5 Warming Rack D100 P01507036H 1
6A Cooking Grid W295 P01615068H 2
6B Cooking Grid W281 P01615067H 1
7 Grill Bowl Assembly P00736027E 1
8 Burner/Main P020050364 4
9A Burner Bracket, Lower P02213467A 1
9B Burner Bracket, Upper P02213477A 1
9C Gas collector box (cross lighter) P02212425A 1
10 Gas Valve/Manifold Assembly - 30mbar Y0060866 1
- 50mbar Y0060867 1
11 Electric Wires Set/Electrode P02614017A 1
12A Protective Pad P05518112K 2
12B Protective Pad P05518113K 2
13 Electric Ignitor, 4 ports P02502484F 1
14 Control Panel P02914471S 1
KEY DESCRIPTION PART# QTY
15 Control Knob Seat P03447014A 4
16 Control Knob P03444022V 4
17A Grease Tray Heat Shield P06904072C 1
17B Grease Tray P0270643RG 1
17C Grease Receptacle P02701387G 1
17D Grease Receptacle Front Panel, Right P07508018W 1
18 Side Shelf Connecting Bracket, Left P01202009B 1
19 Side Shelf Connecting Bracket, Right P01203009B 1
20A Universal Hose Barb P03905002A 1
20B Regulator with Hose (50mbar) P03640016A 1
21 LED Light Wire P05373012B 1
22 Battery Pack (LED) P05301013B 1
23 Spacer Bracket - LEFT P07901056D 1
24 Spacer Bracket - RIGHT P07901057D 1
25 Spacer Bracket - REAR P07901059D 1
26 Name Plate P00403009D 1
Cover(Optional) P07007074B 1
Plancha(Optional) P05701058B 1
Operator's Manual P80196010A 1
ENGLISH
2
3
14
26
21
22
20B
23
24
25
1
20A
16
6B
12A
4
5
6A
7
8
10
18
19
11
13
15
17B
17A
17C
17D
9B
9A
12B
9C
