10

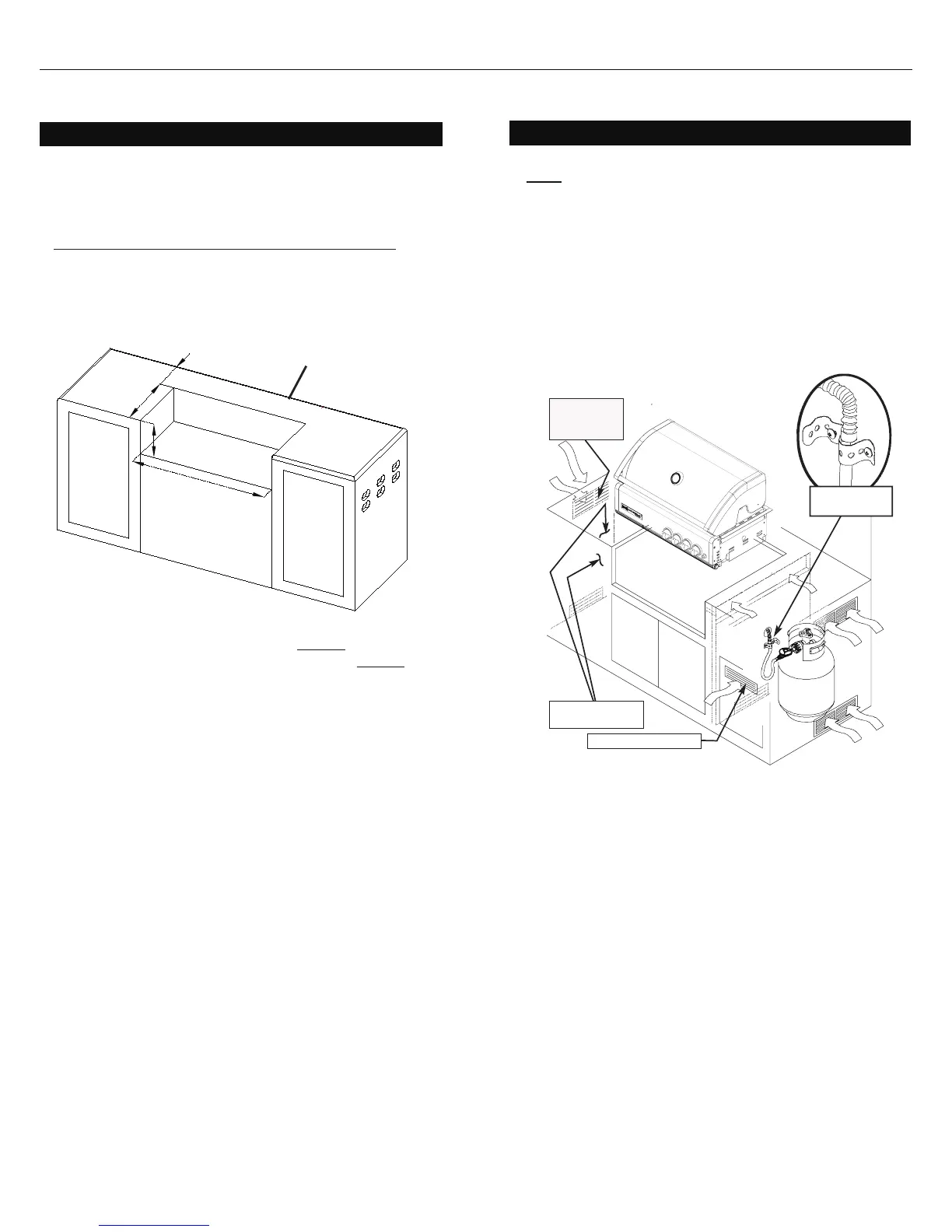

MOUNTING CUT - OUT
Model
Width Height Depth
TCS4FL 928mm 260mm 447mm
Non-combustible
Construction
Refer to the this table for show the minimum Cut out
size when designing the island unit.
the minimum distance of the unit is 900mm from combus-
tibles. the minimum height of the island unit is 800mm start-
ing from the ground up.
Non-combustible
Contruction
Vented on
Both Sides
of Island
Vented Access Door
Clamp down
flexline
NOTE: When installing a barbecue equipped for liquid propane in an
island, the
gas cylinder
must be in a separate enclosure that is completely
isolated from the barbecue. It must be cross-ventilated in accordance
with the current standard. The
gas cylinder
MUST NEVER be installed
directly under the barbecue. NOTE: Upper & lower ground-level vents (20
sq. in.(130 cm
2
) minimum each) MUST BE PROVIDED for combustion
air on both sides of built-in construction.
PRECAUTIONS
ENGLISH
