Com-Tech 810 and 1610 Amplifier Service Manual
]
2-3
Rev. 0
Height B: 5.25 inches (13.3 cm)
Models: Com-Tech 410 (100/120 VAC, 50/60 Hz)
Com-Tech 410 (220/240 VAC, 50/60 Hz)
Com-Tech 810 (All)
Height C: 7 inches (17.8 cm)
Model: Com-Tech 1610 (All)
Approximate Weight: Center of gravity is 6 inches (15.2
cm) behind the front mounting surface.
120 VAC, 60 Hz North American Units:
Com-Tech 810 : 47 pounds, 4 ounces
(21.5 kg) net; 50 pounds, 8 ounces
(22.9 kg) shipping weight.
Com-Tech 1610 : 57 pounds, 14 ounces
(26.3 kg) net; 66 pounds, 10 ounces
(30.2 kg) shipping weight.
100/120 VAC, 50/60 Hz Units:
Com-Tech 810 : 45 pounds, 1 ounce
(20.5 kg) net; 49 pounds, 10 ounces
(22.5 kg) shipping weight.
Com-Tech 1610 : 54 pounds, 11 ounces
(24.8 kg) net; 64 pounds, 3 ounces
(29.1 kg) shipping weight.
220-240 VAC, 50/60 Hz Units:
Com-Tech 810 : 45 pounds, 4 ounces
(20.5 kg) net; 49 pounds, 13 ounces
(22.6 kg) shipping weight.
Com-Tech 1610 : 55 pounds, 2 ounces
(25.0 kg) net; 64 pounds, 10 ounces
(29.3 kg) shipping weight.
C: 7 in
(17.8 cm)
O
F
F
O
D
E
P
I
O
C
S
P
I
C
H
1
C
H
2
B: 5.25 in
(13.3 cm)
A: 3.5 in
(8.9 cm)
19 in
(48.3 cm)
1
6
i
n
(
4
0
.
6
c
m
)
L
O
C
A
L
R
E
M
O
T
E

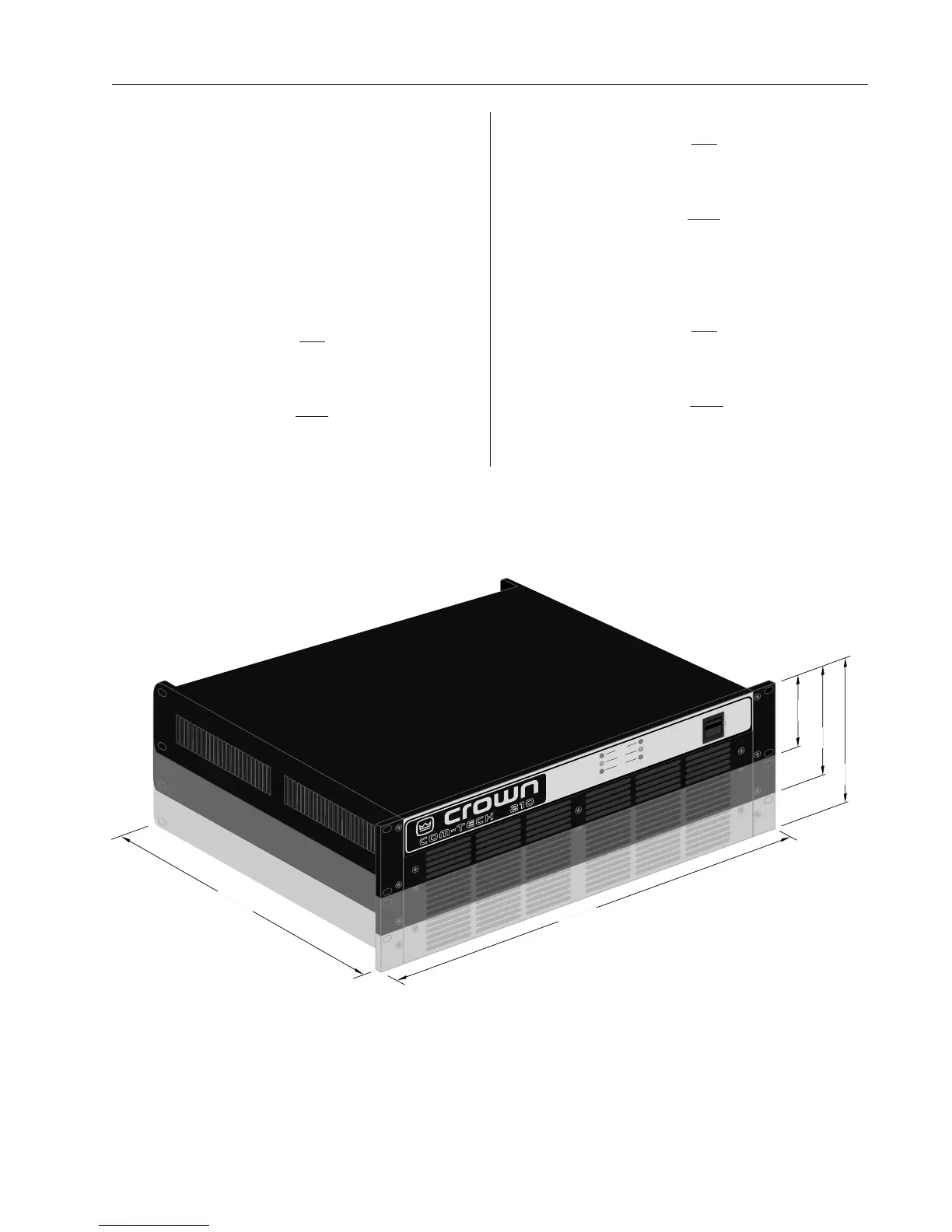

Figure 2.10 Mounting Dimensions
