2.2.2 Fuses
The fuse holders are located in the power connector assembly just below the voltage
selector.

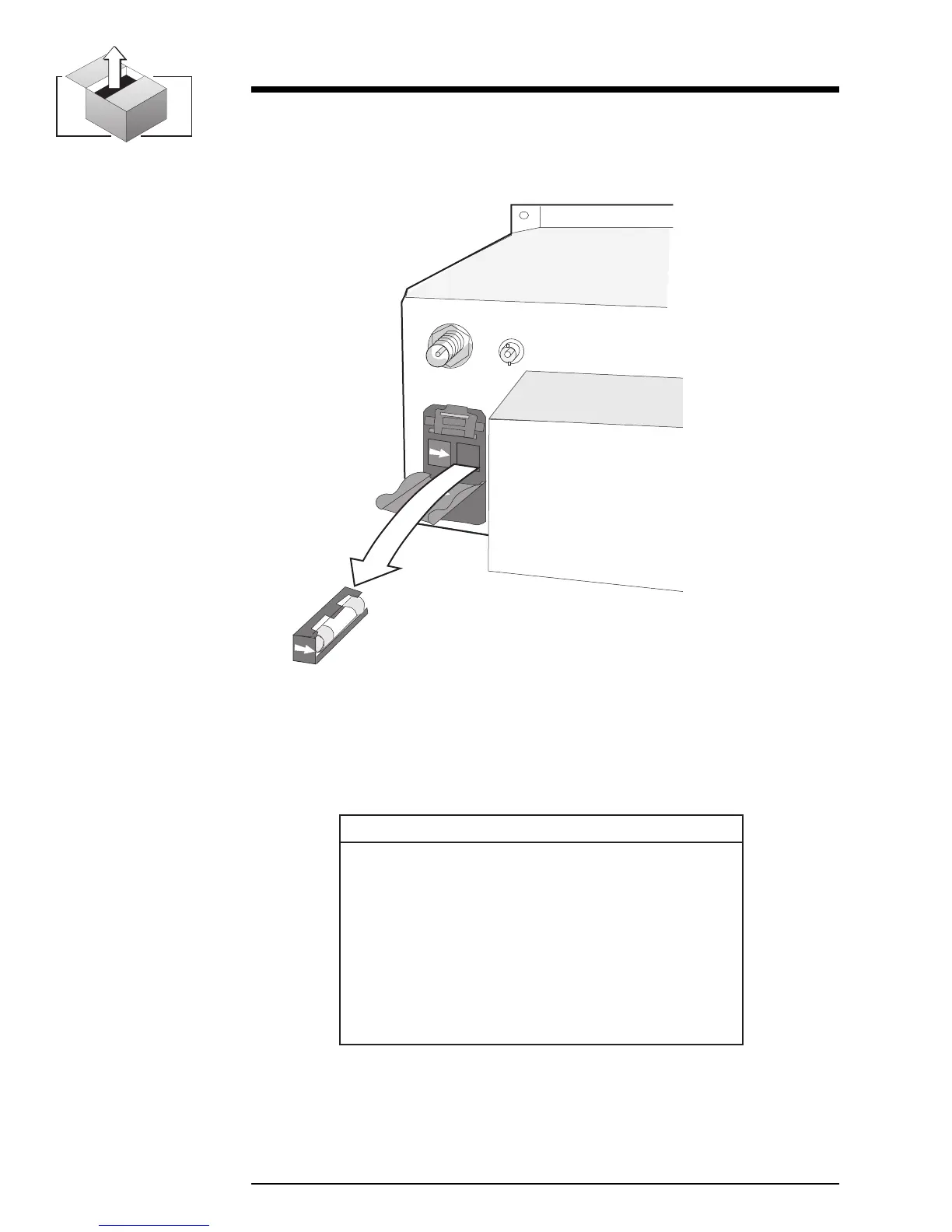

Illustration 2–3 Fuse Holder
For 100 to 120 VAC operation, use the fuse installed at the factory. For 220 to 240
VAC operation, use the slow-blow fuse located in a hardware kit within the
transmitter packaging. Consult the following table:
Illustration 2–4 Fuse Reference Table
remove drum
before turn
120Vac
220Vac
240Vac
Transmitter Input Power Fuse
FM30 100–120 V 3 A
220–240 V 1.5 A
FM100 100–120 V 6.3 A
220–240 V 4 A
FM250 100–120 V 12.5 A
220–240 V 6.3 A
