Crown FM30 - RF Connections

2–10
FM30/FM100/FM250 User's Manual
120Vac
RF Output
Connector
RF Output
Monitor
Severe shock hazard!
Do not touch the inner
portion of the RF
output connector
when transmitter
power is on.
WARNING

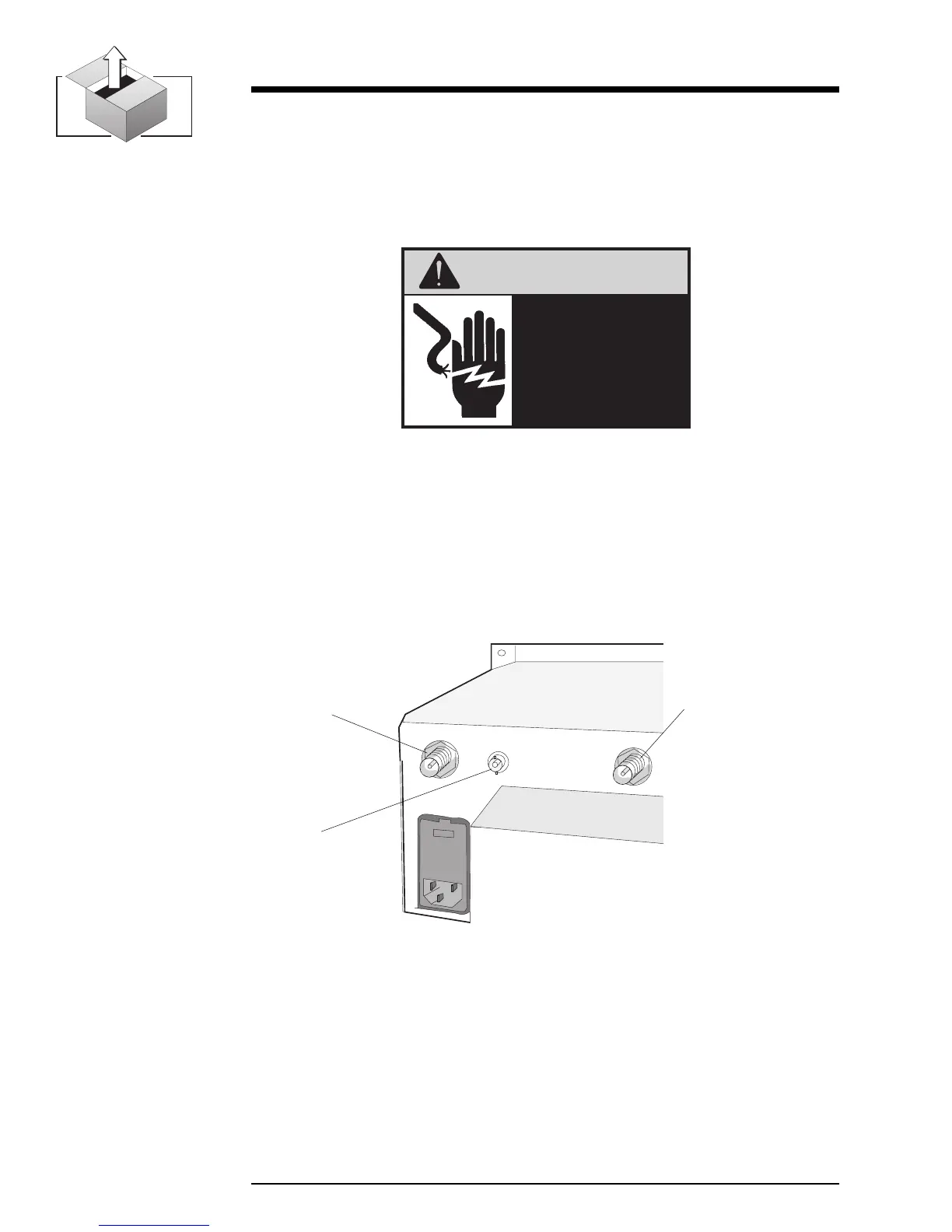

Illustration 2–12 RF Connections
2.5 RF Connections
Connect the RF load, an antenna or the input of an external power amplifier, to the
type-N, RF output connector on the rear panel. VSWR should be 1.5:1 or better.
The RF monitor is intended primarily for a modulation monitor connection.
Information gained through this connection can supplement that which is available
on the transmitter front panel displays.
If your transmitter is equipped with the receiver option, connect the incoming RF
to the RF IN connector.
RF Input Connector
(receiver option only)
