The input MODE switch will “sum” or
combine the right and left channel signals
in the MONO position to improve bass
performance. Select MONO only when the
amp is being used for subwoofers.
The XOVER Mode switch sets the type
of crossover that will be active. 4 channel
models will have two switches, one for each
set of channels.
The HPF(high pass lter) control will limit the
output below the selected frequency. This
is typically used to protect midrange and hi
frequency speakers from damage and to
allow a smooth transition from a subwoofer.
The LPF(low pass lter) control will limit
output above the selected frequency. This
is used to allow a smooth transition to the
higher frequency speakers.
1. If possible, with the source unit off, conrm that the primary volume control is
turned down (counter clockwise).
2. Turn on the source unit (CD, or MP3 player). Re-conrm that the volume is
turned down. Make sure the source unit controls; balance, fader, bass and
treble are all set to center or “0” adjustment. Make sure that the green LED on
the end of the amplier is illuminated.
3. Play a clean musical selection of which you are very familiar. CD is preferred.
Do not use radio signals for level setting. Hit play and start turning the volume
of the source unit up.
4. Stop increasing the source unit volume when you reach 3/4 (about 75%) or until
you hear speakers begin to slightly start producing distortion.
5. Increase the amplier level (clockwise) until distortion is heard, then back
the level down (counter clockwise) until the distortion is eliminated. Small
adjustments may need to be made to balance the levels of multiple ampliers.
The BASS BOOST or BASS EQ control
will increase the output at 45Hz for more
pronounced bass. Exercise caution.
Increase the level in small amounts until
distortion is noticed, then back off a little.
Some models include a bass
remote. Avoid adjusting the bass
remote while operating vehicle.

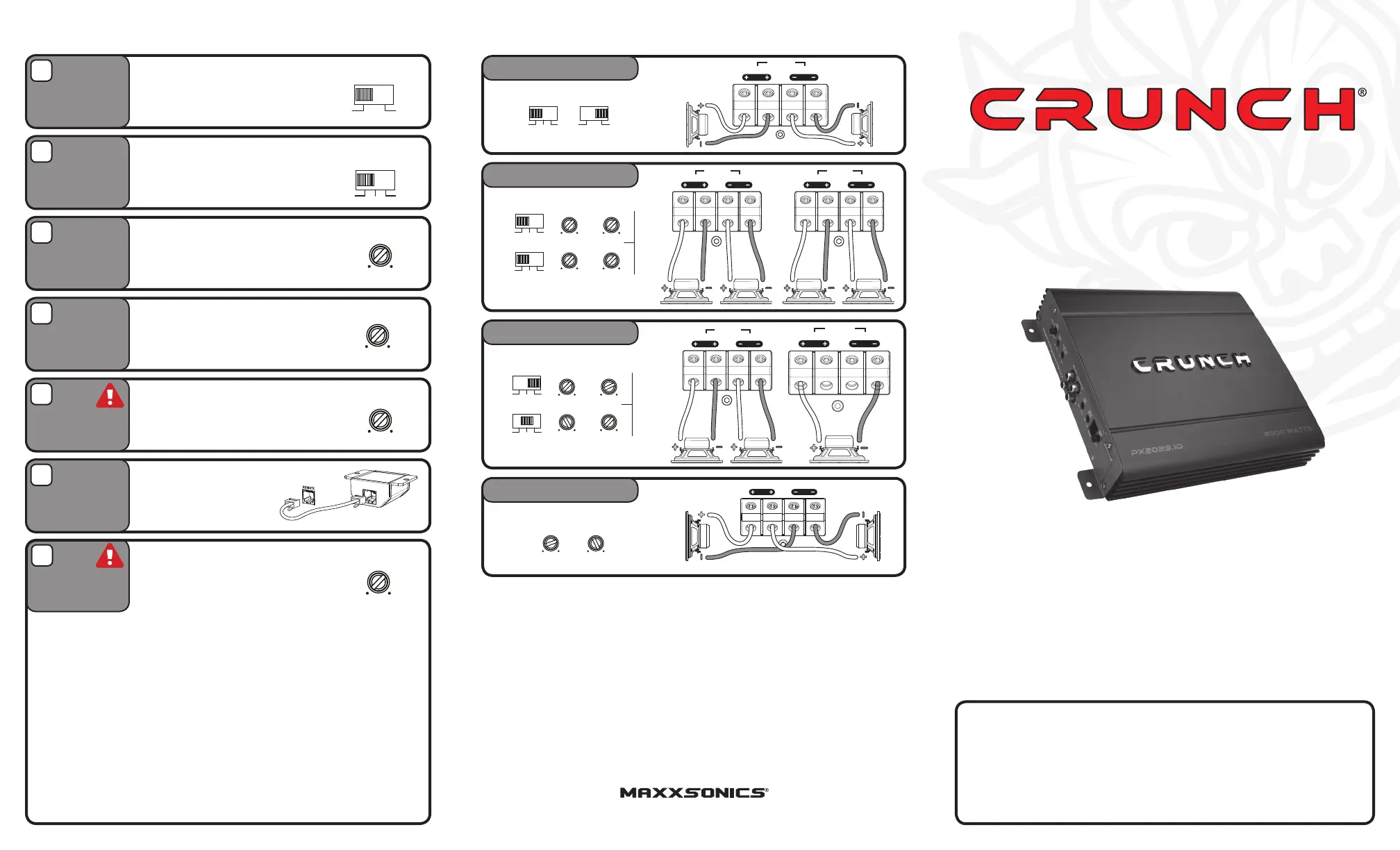

Input Mode
Xover Mode
High pass
Adjustment
Low pass
Adjustment
Bass Boost
Remote Level
Control
2ch - Full Range
4ch - Full Range
4ch - Mixed Mono
Mono
A
B
C
D
E
F
This is a critical step to insure your amplier
is properly adjusted to match the signal
output level of your source unit.
THIS IS NOT A VOLUME CONTROL!
Level Setting
G
WARRANTY
Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from
defects in material and workmanship for a period of one (1) year from the date of purchase.
Maxxsonics USA Inc. will, at it’s discretion, repair or replace defective products during the warranty
period. Components that prove to be defective in materials and workmanship under proper installation
and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was
purchased. A photocopy of the original receipt must accompany the product being returned. The
costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics
USA Inc. This warranty is limited to defective parts and specically excludes any incidental or
consequential damages connected therewith. To view the full warranty, please visit the website.
The information contained within this document is intended to offer some basic guidelines
for a few of the most common installations. More complex audio systems should be
installed by a competent professional. Additional installation information available at
www.maxxsonics.com
Crunch products are designed and engineered in the USA by
www.maxxsonics.com
Px1025.2
Px1025.4
Px1025.1
Px2025.1D
Congratulations on your choice of a Crunch amplier. This
“Quick Start Installation” guide is meant to help you “hook
up” and play music. For more detailed information, on
system setting, speaker and subwoofer conguration and
full specications by model visit the website,
http://crunchusa.net/manuals.html
